Ignition Lock Cable: Service and Repair

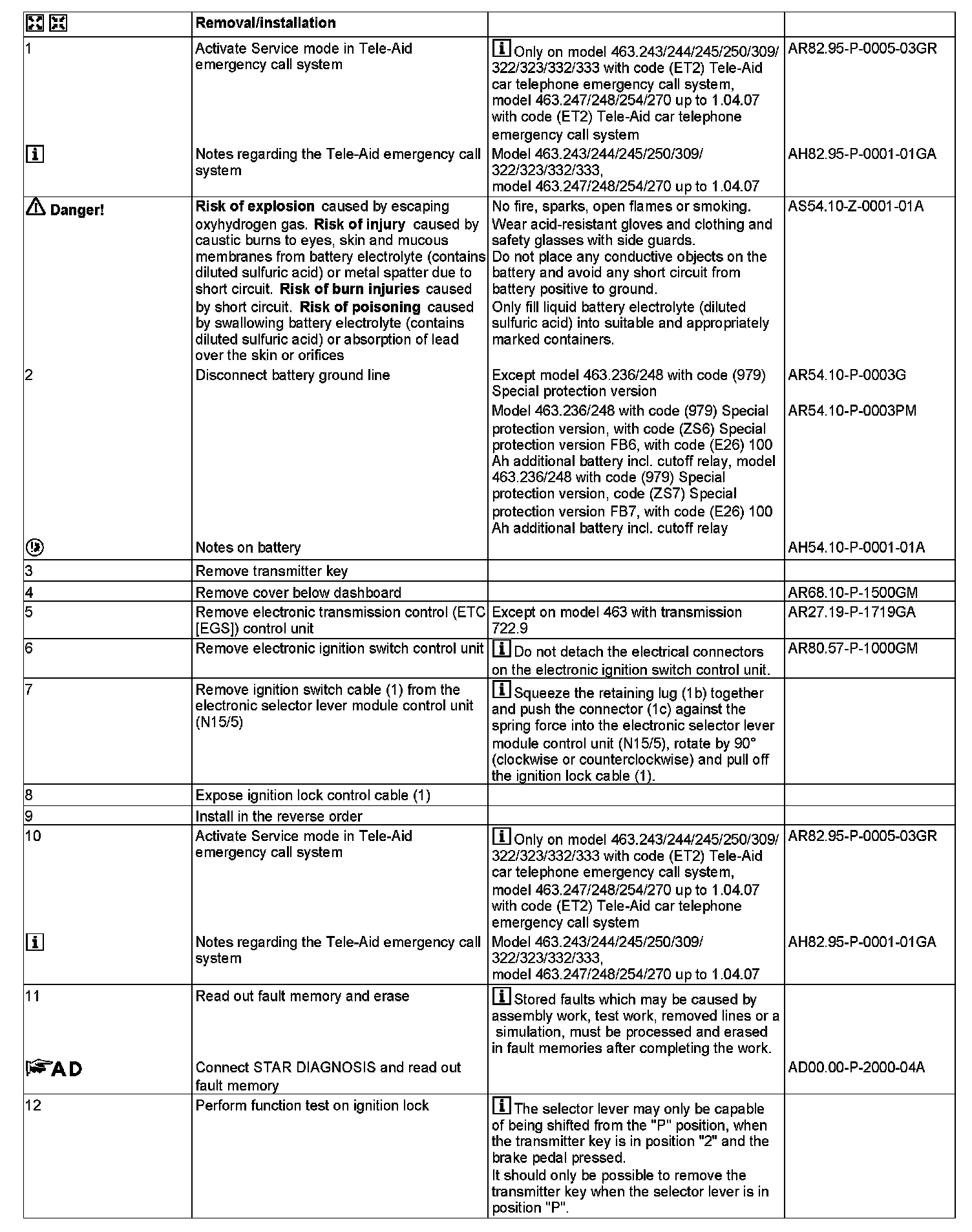

AR27.60-P-0122GM Remove/Install Ignition Lock Control Cable
TRANSMISSION 722.610 in MODEL 463.244 /245 /250
TRANSMISSION 722.630 in MODEL 463.243 /246 /247 /248 /249 /254
TRANSMISSION 722.637 in MODEL 463.322 /323
TRANSMISSION 722.638 in MODEL 463.309 /332 /333
TRANSMISSION 722.645 in MODEL 463.270 /271
TRANSMISSION 722.902 in MODEL 463.303 /306 /336 /340 /341 /346
TRANSMISSION 722.904 in MODEL 463.202 /222 /236 /237

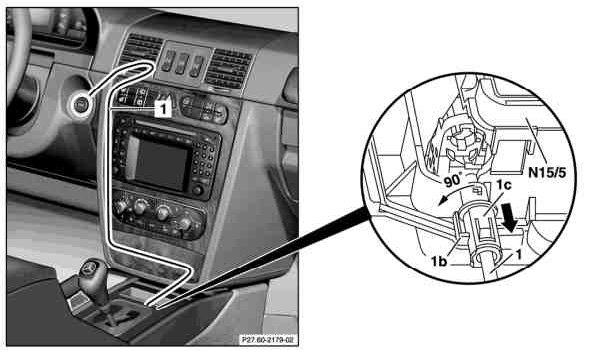

1 Ignition lock control cable
1b Retaining lug
1c Connector
N15/5 Electronic selector lever module control unit
