Parking Assist Control Module: Service and Repair

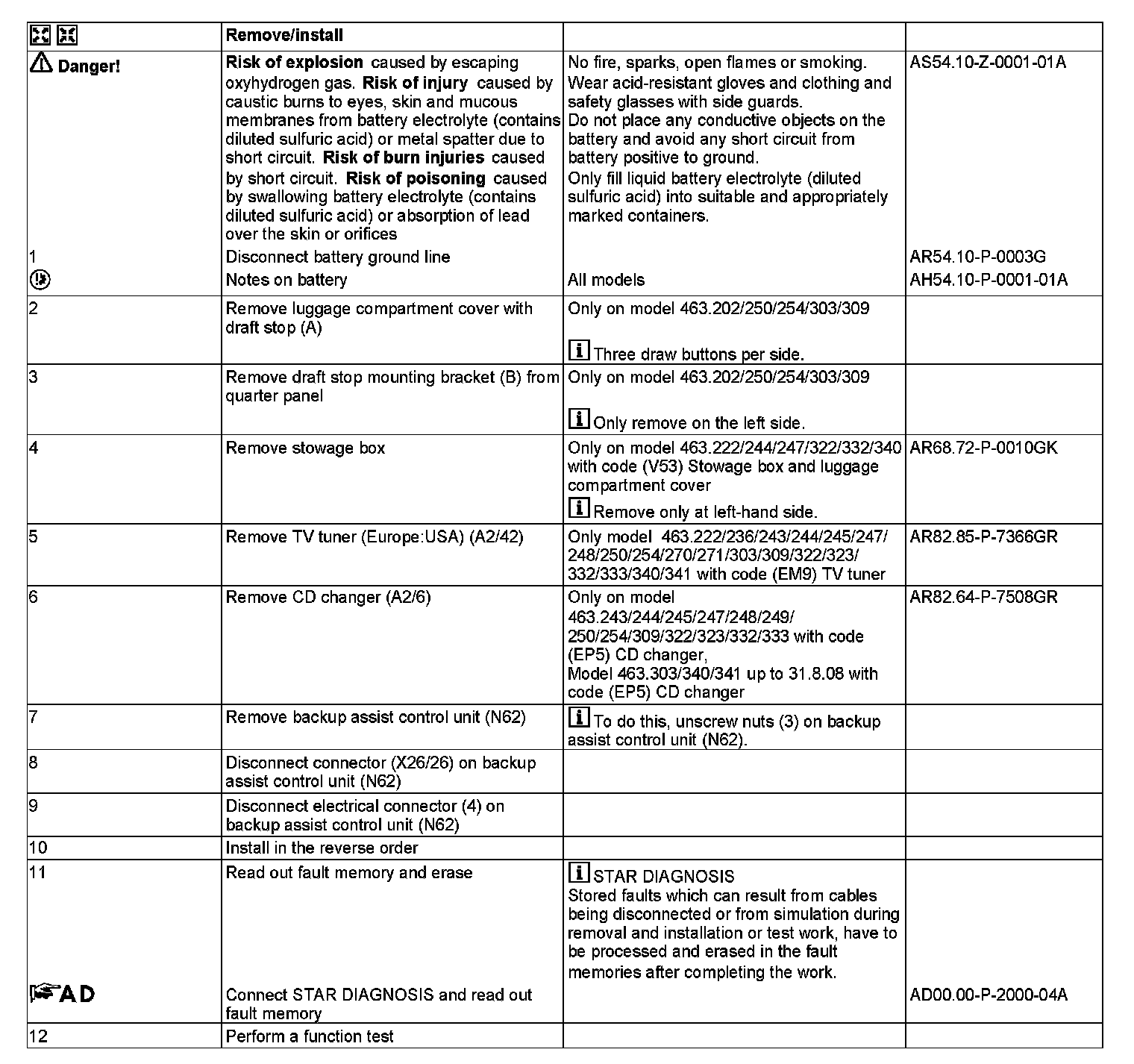

AR54.65-P-0020GR Remove/Install Backup Assist Control Unit
MODEL 463
- with CODE (J44) Ultrasonic backup assist
- except CODE (979) Special protection version

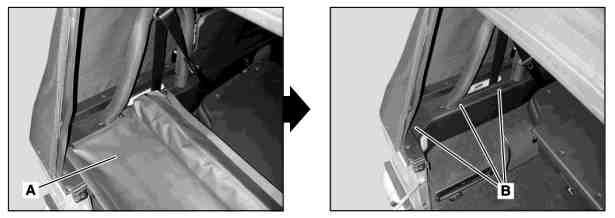

Illustrated on model 463.303
A Luggage compartment cover with draft stop
B Draft stop mounting bracket

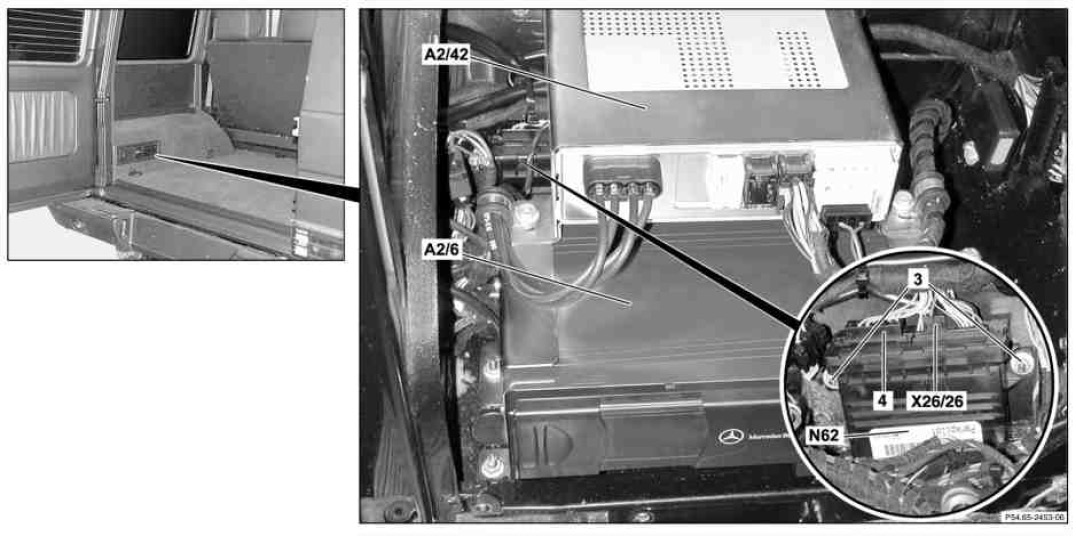

Illustrated on model 463.248
3 Nut
4 Electrical connector
A2/6 CD changer
A2/42 TV tuner (Europe:USA)
N62 BA [RFH] control unit
X26/26 BA [RFH] connector

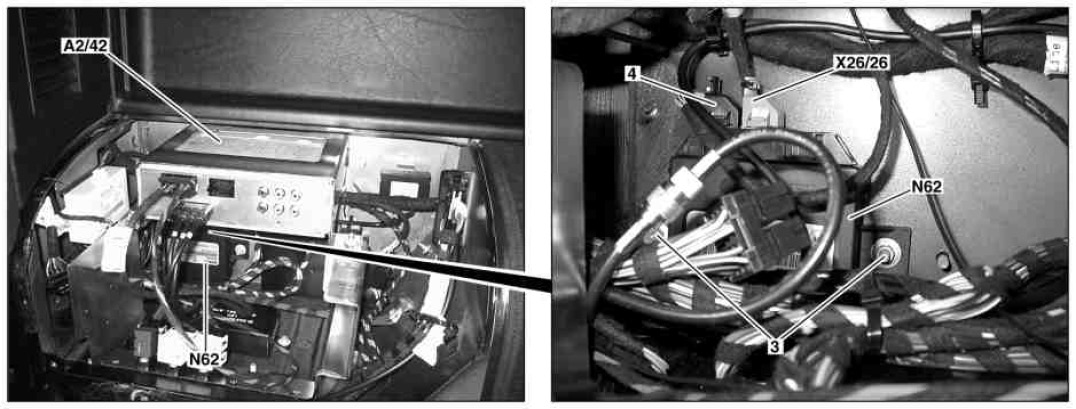

Illustrated on model 463.236
3 Nut
4 Electrical connector
A2/42 TV tuner (Europe:USA)
N62 BA [RFH] control unit
X26/26 BA [RFH] connector
