Refrigerant Temperature Sensor: Service and Repair

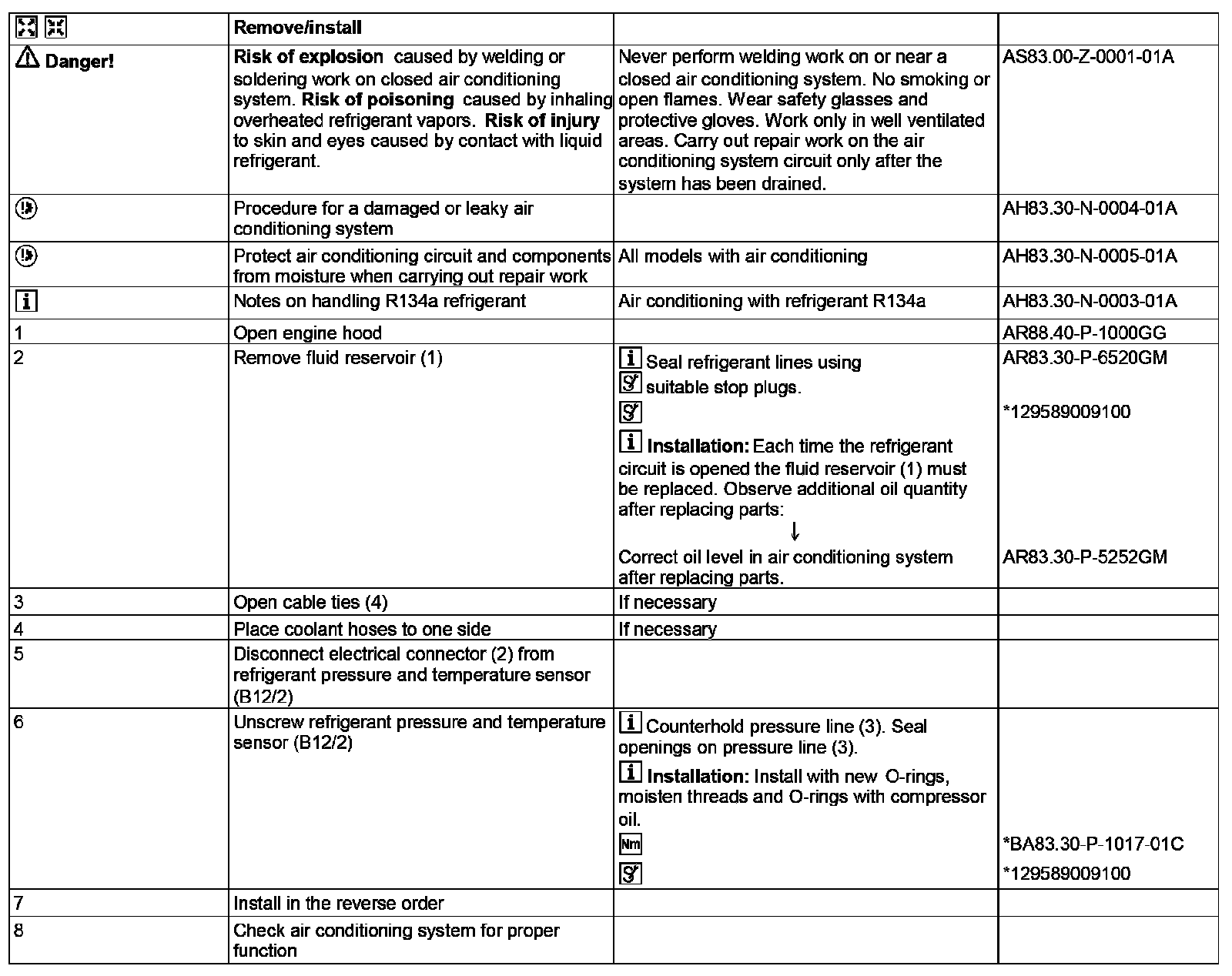

AR83.30-P-5431GM Remove And Install Refrigerant Pressure And Temperature Sensor
- MODEL 463.202 /222 /236 /237 /243 /244 /245 /246 /247 /248 /249 /250 /254 /270 /271 /303 /306 /309 /322 /323 /332 /333 /336 /340 /341 /346

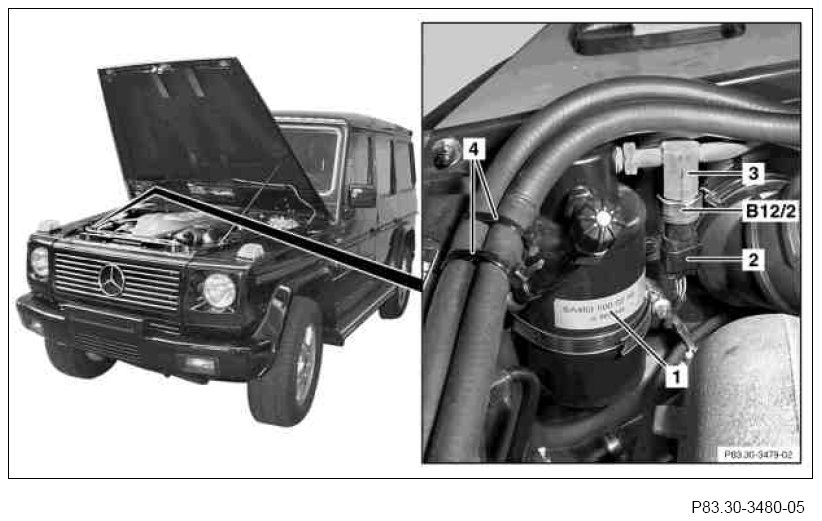

1 Fluid reservoir
2 Electrical connector
3 Pressure line
4 Cable tie
B12/2 Refrigerant pressure and temperature sensor















129 589 00 91 00, Set of stop plugs
