Heater Core: Service and Repair

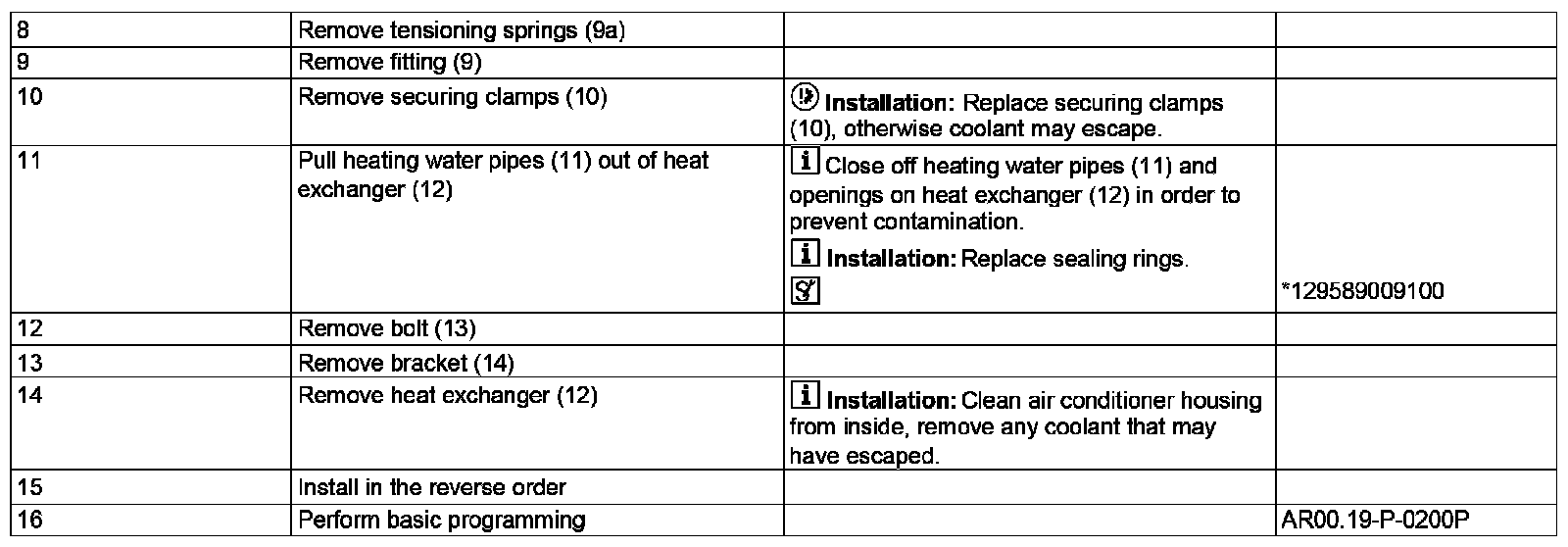

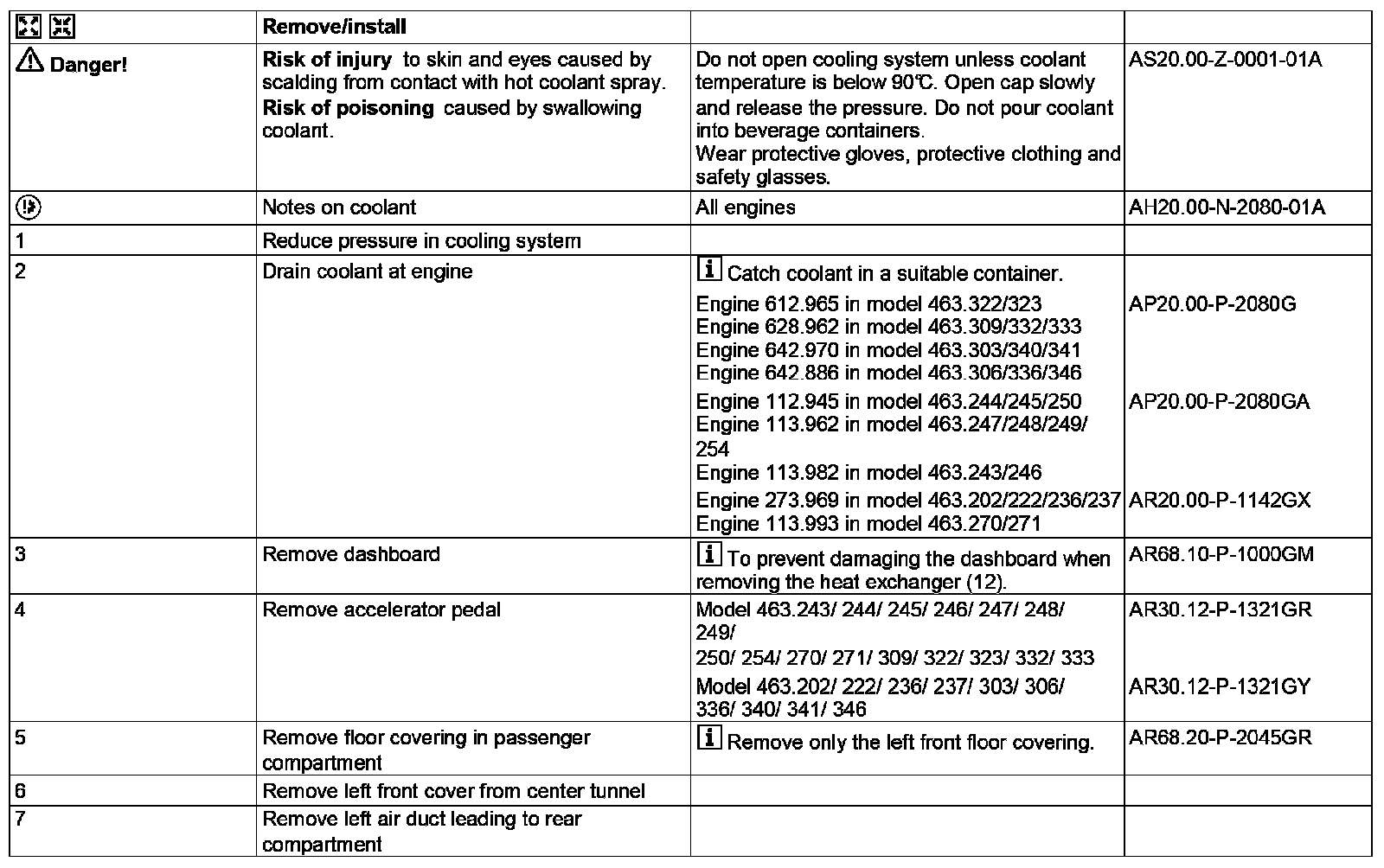

AR83.25-P-1100GM Remove And Install Heat Exchanger
- MODEL 463.202 /222 /236 /237 /243 /244 /245 /246 /247 /248 /249 /250 /254 /270 /271 /303 /306 /309 /322 /323 /332 /333 /336 /340 /341 /346

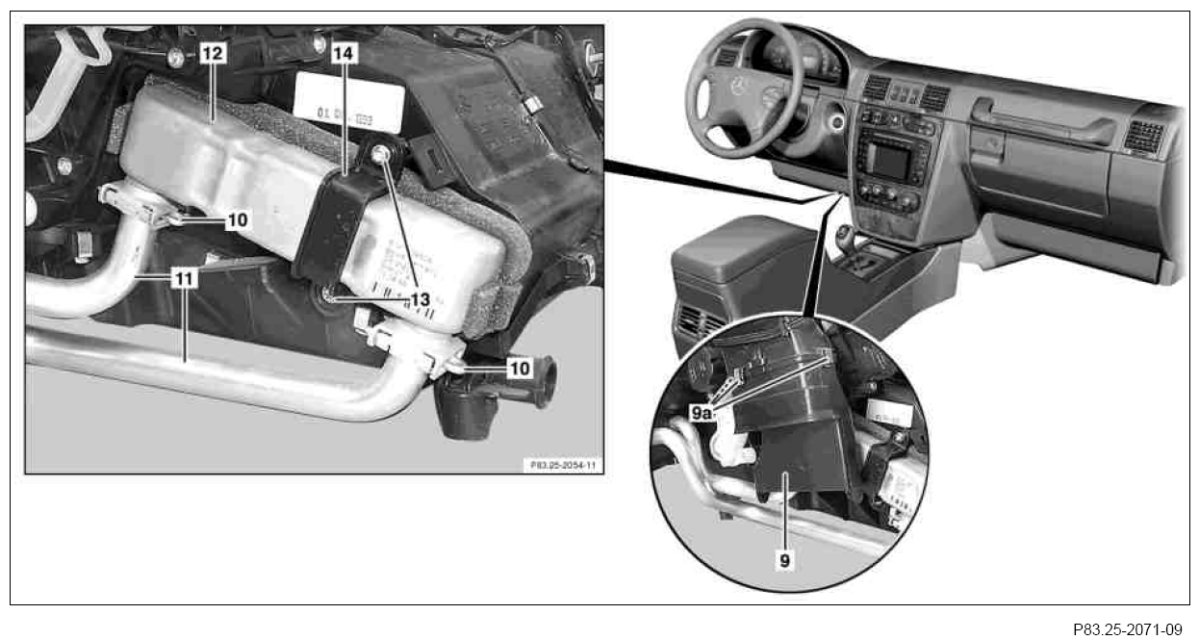

9 Fitting
9a Spring
10 Securing clamp
11 Heating water pipe
12 Heat exchanger
13 Screw
14 Bracket















129 589 00 91 00, Set of stop plugs
