Rear Subframe: Service and Repair

AR35.10-P-0010F Remove/Install Complete Rear Axle
- MODEL 460
- MODEL 461 (except 461.302 /304 /305 /331 /332 /333 /334 /340 /342 /343 /344)
- MODEL 463 (except 463.270 /271)

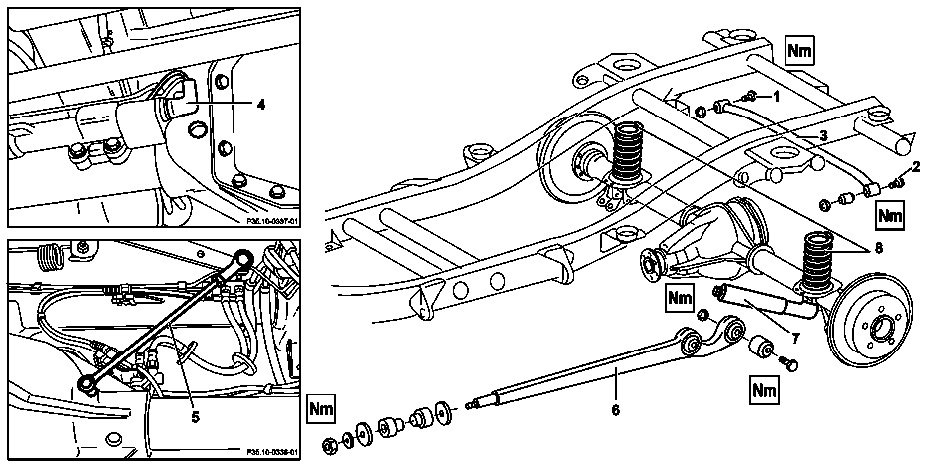

Shown on vehicle with disk brakes

1 Mounting screw to rear axle
2 Mounting screw to frame
3 Transverse control arm
4 Plug connection
5 Pull rod (only model 460, 461 and 463 without EBV)
6 Trailing arm
7 Shock absorber
8 Spring

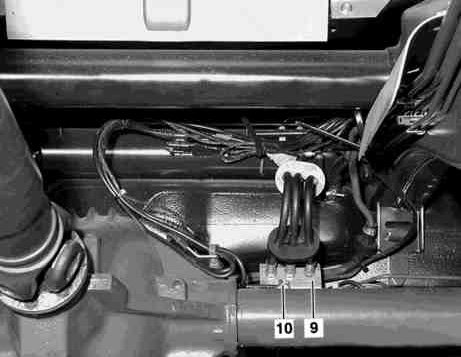

9 Retaining plate
10 Differential lock hydraulic line




































000 589 10 99 00
Tool kit
