Communications Control Module: Service and Repair

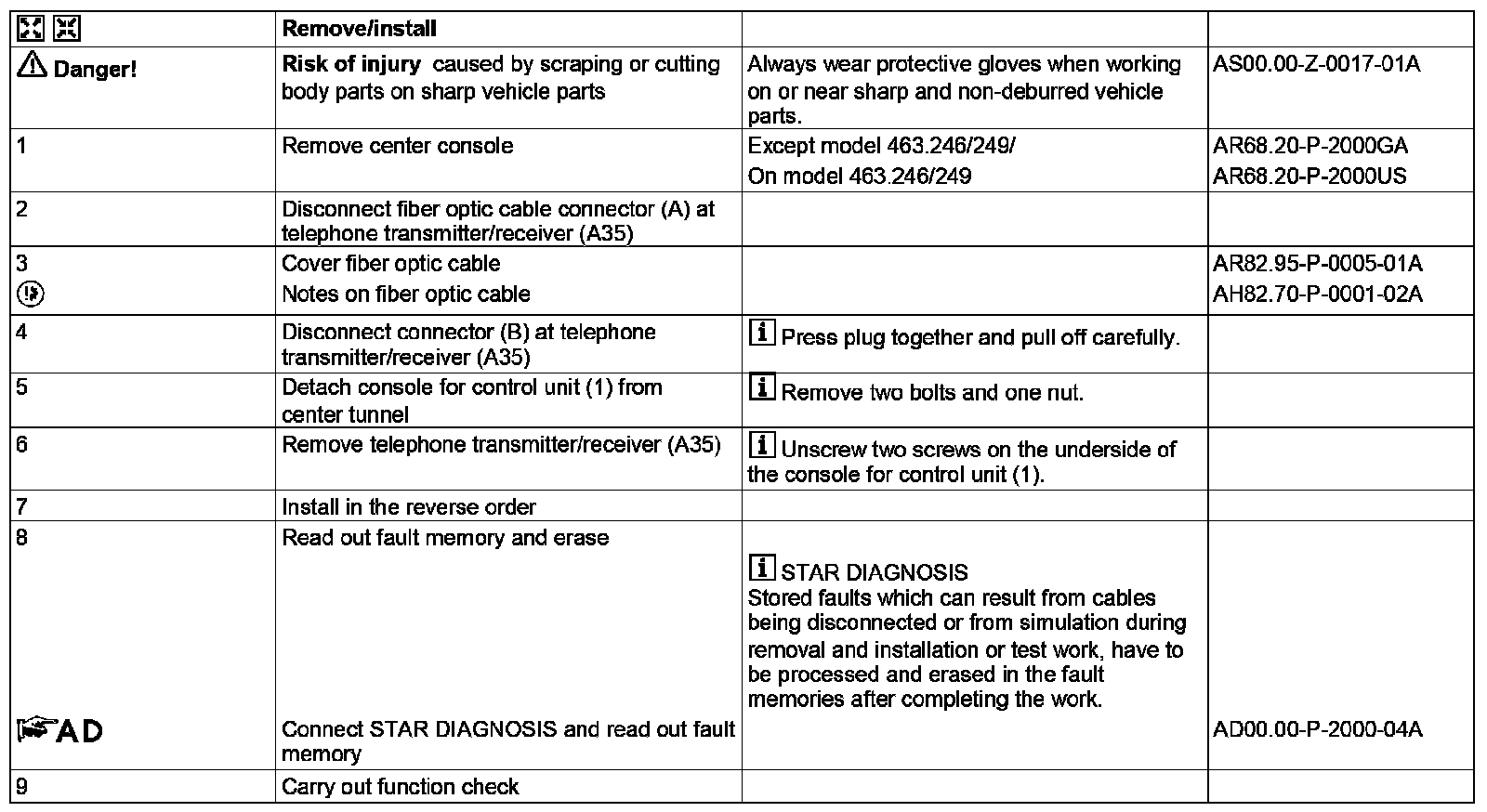

AR82.70-P-7000GR Remove/install Telecommunications Control Unit
- MODEL 463.243 /244 /245 /246, 463.247 /248 up to 1.4.07, 463.249 up to 30.8.06, 463.250, 463.254 up to 1.4.07, 463.309 /322 /323 /332 /333
- with CODE (ET7) Hands-free system including microphone and Nokia 6210 portable CTEL
- with CODE (EV7) Hands-free system including microphone and holder for Nokia 3110 portable CTEL

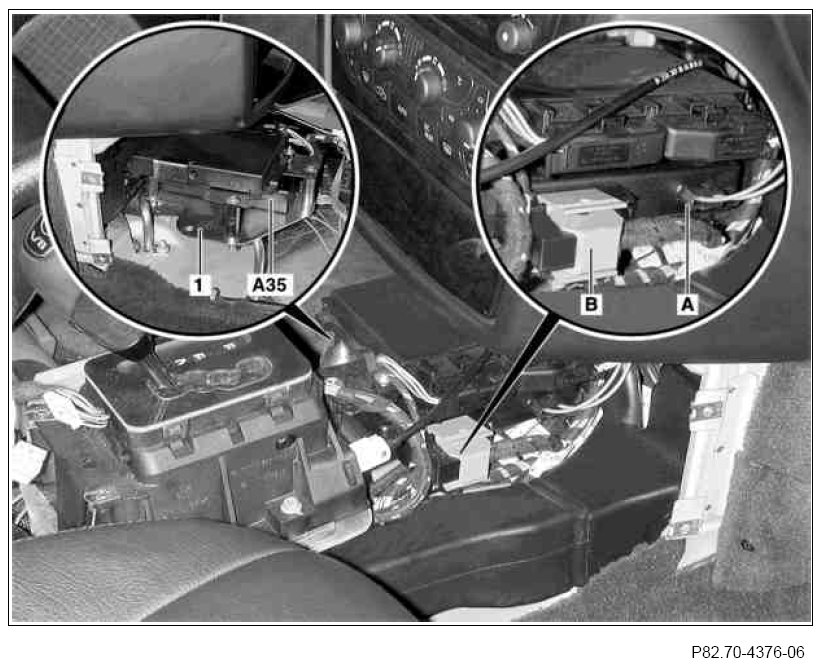

1 Control unit console
A Fiber optic cable connector
B Plug connection
A35 Telephone transmitter/receiver
