Brake Rotor/Disc: Service and Repair

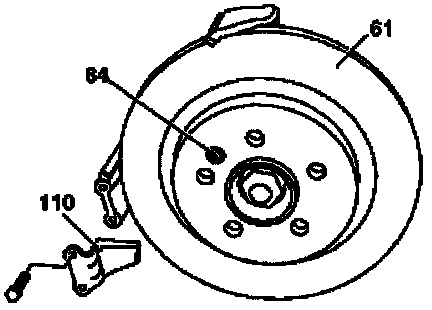

Operation Illustration:

Operation no. of operation texts or standard texts and flat rates:

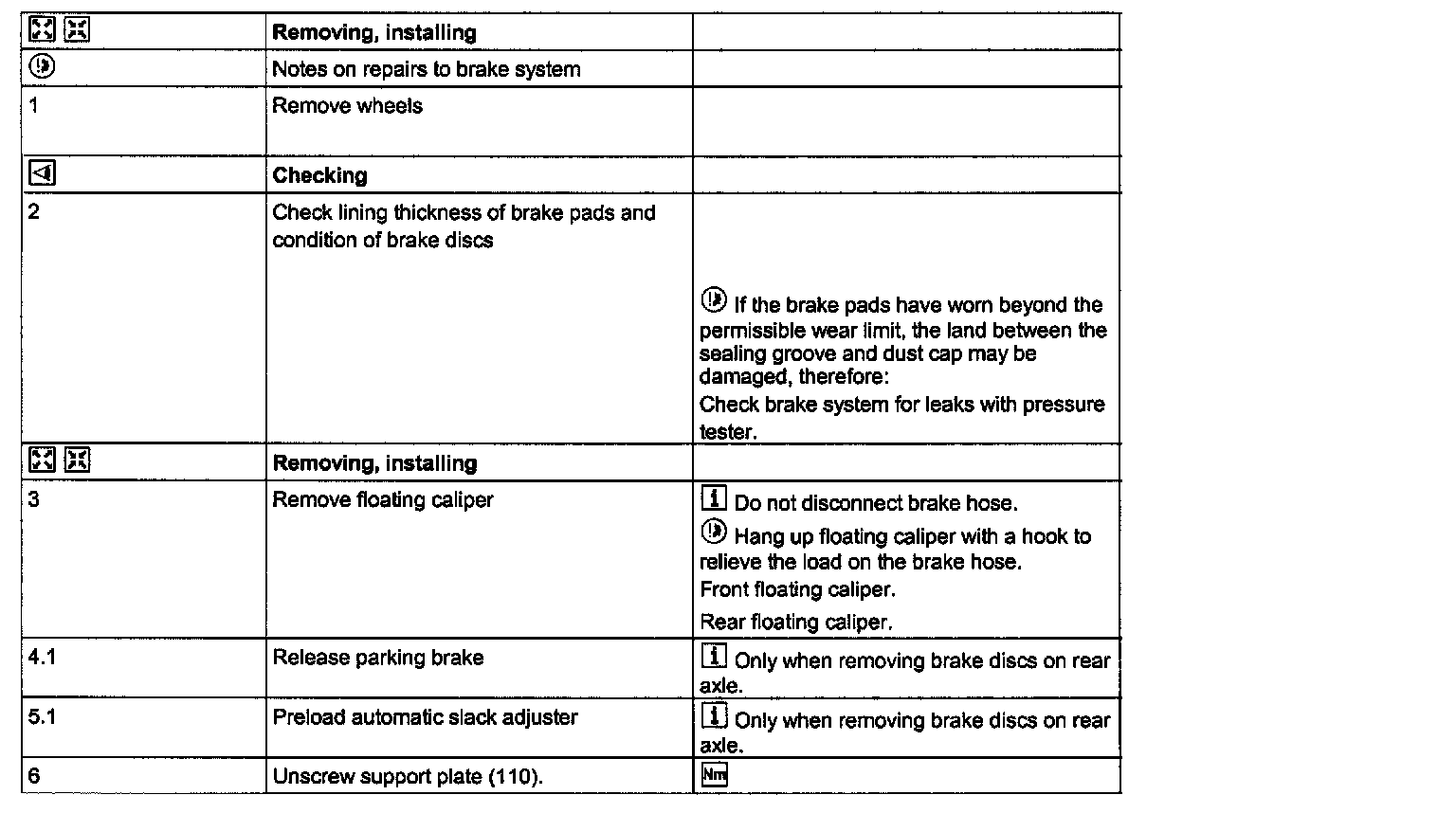

Service Procedures (Steps 1 Thru 6):

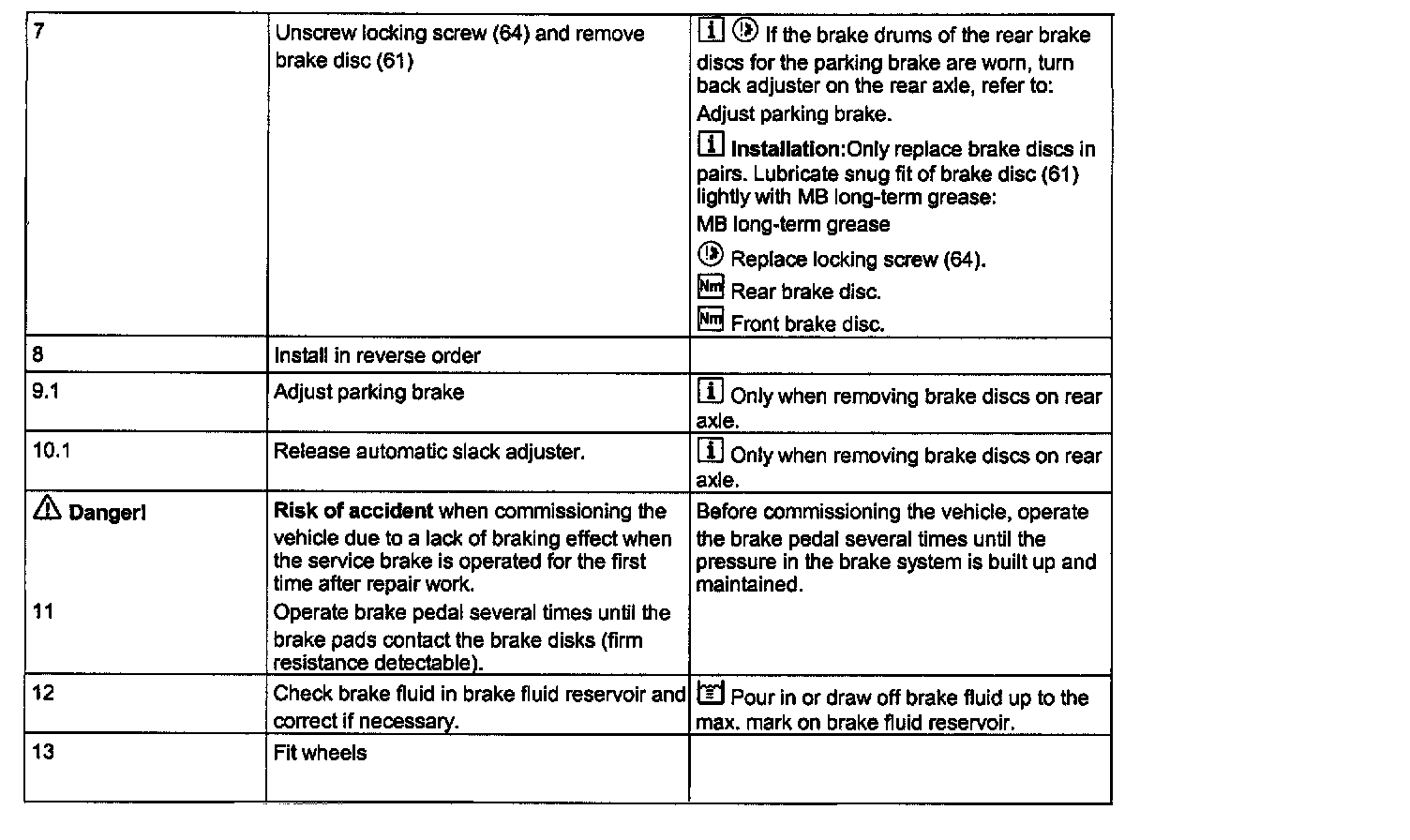

Service Procedures (Steps 7 Thru 13):

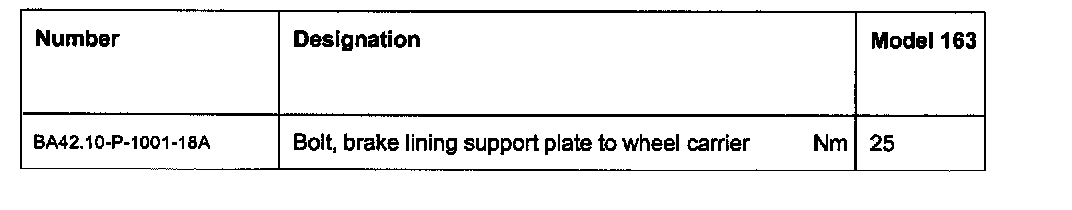

Specifications, Support plate:

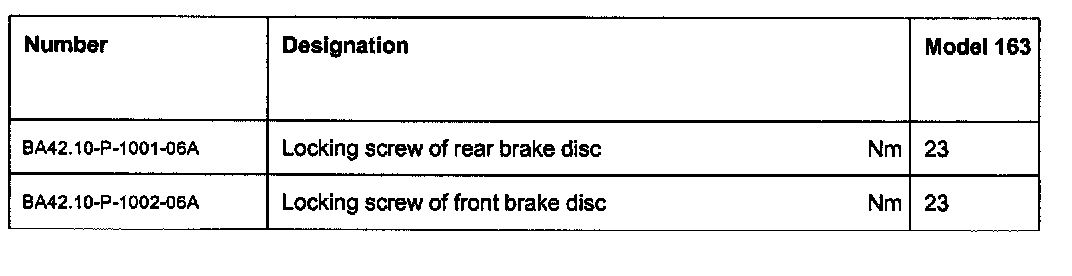

Specifications, Brake Discs, Brake Splash Shield:

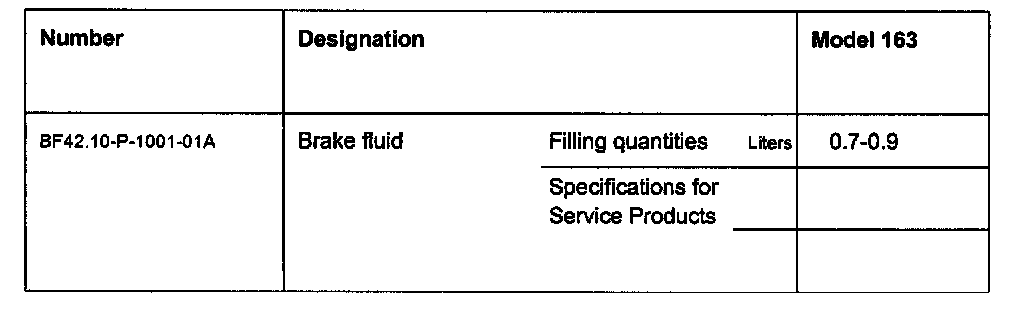

Specifications, Brake Fluid:

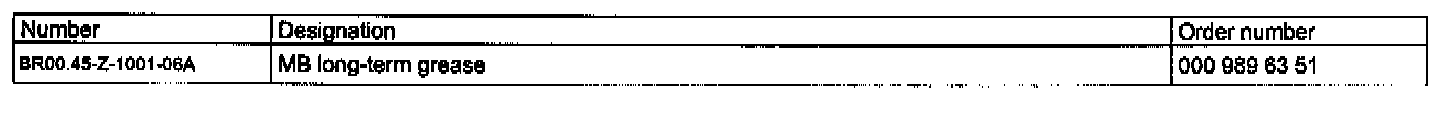

Repair Product:
