AR40.20-P-0332GH Check and Adjust Rear Wheel Toe

Checking and Adjusting:
1. Check vehicle level at front and rear axle with electronic inclination measuring instrument and if necessary adjust.

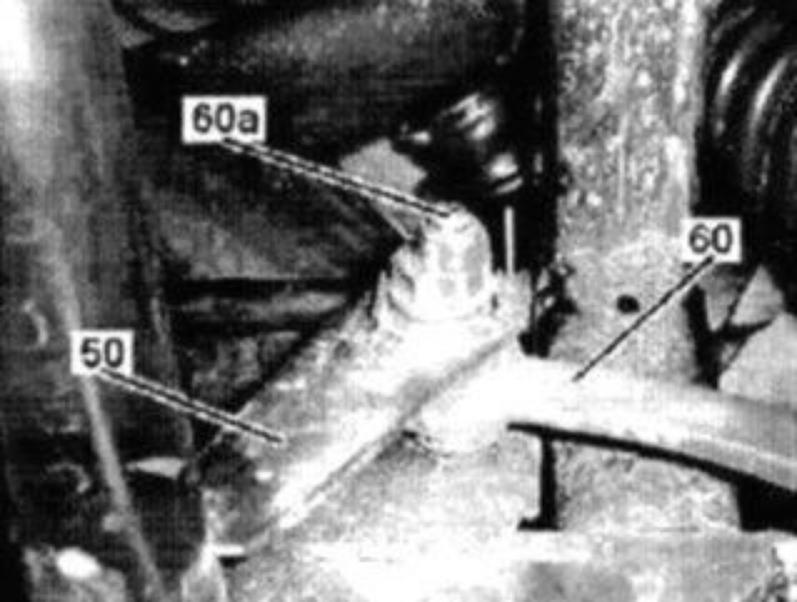

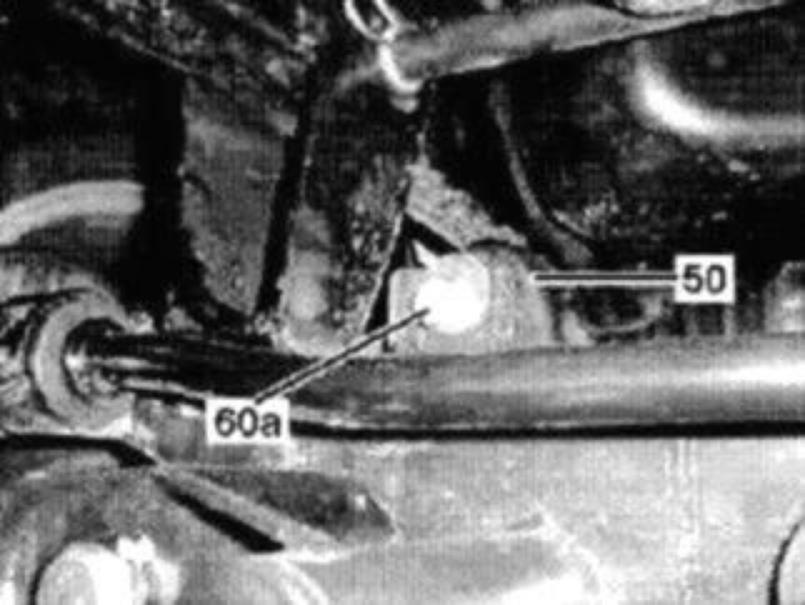

2. Adjust toe-in with cam bolt (60a) at mount of the left and right tie rod (60) at rear axle carrier (50).


Test Values for Rear Axle Toe-In:
Total toe-in of rear axle 0° 20' ± 7'

Tightening Specification:
Self-locking nut, tie rod to rear axle carrier 115 Nm
