AR40.20-P-0230GH Attaching Mercedes-Benz Quick-Clamp Holder

Installation, Removal

Models 129, 140, 170, 202, 208, 210:

Model 163:

NOTE: Check MB quick-action clamps, wheel mirrors or measured value pick-ups in accordance with the manufacturers specification at regular intervals.

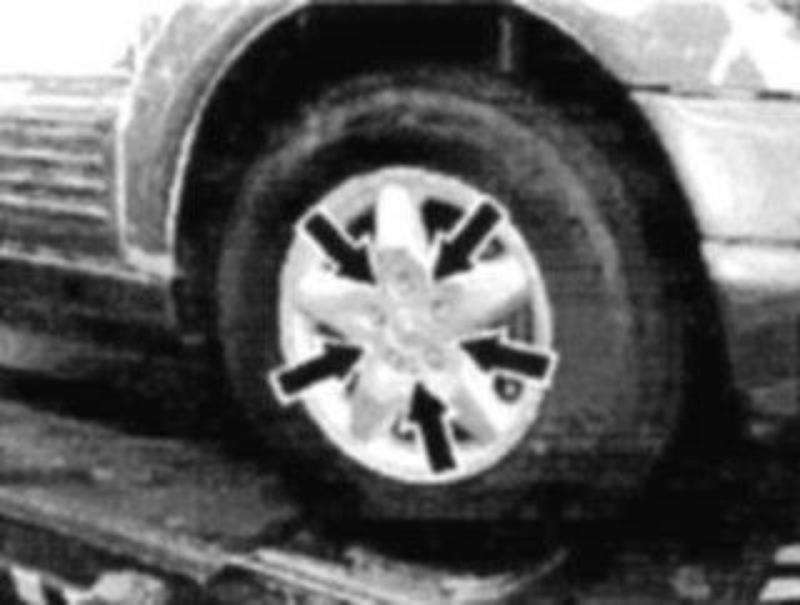

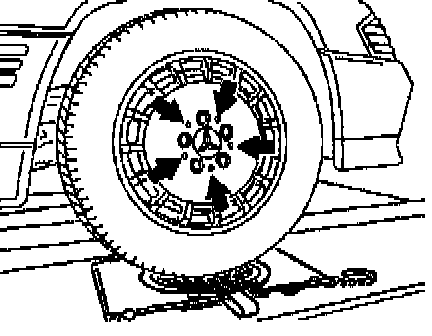

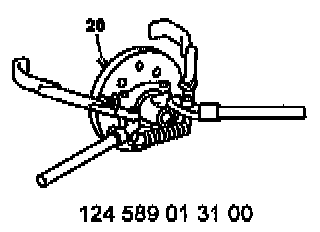

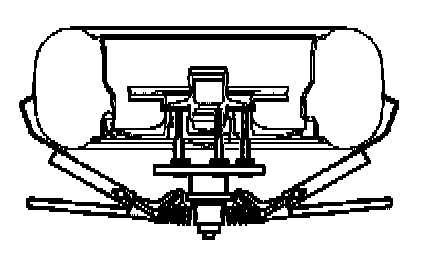

1. Attach MB quick-action clamps (Special Tool 124 589 01 31 00) at the front and rear wheels, remove tensioning handles. The fixture bell is centered on the front wheel hub or rear axle shaft flange by locating the tracer pins in the 5 mounting holes (arrow) in the disc wheel.
2. Fit wheel mirrors or measured value pick-ups.
3. Remove in reverse order.
