Engine Block Heater: Service and Repair



AN20.30-P-0001S Retrofitting coolant preheater

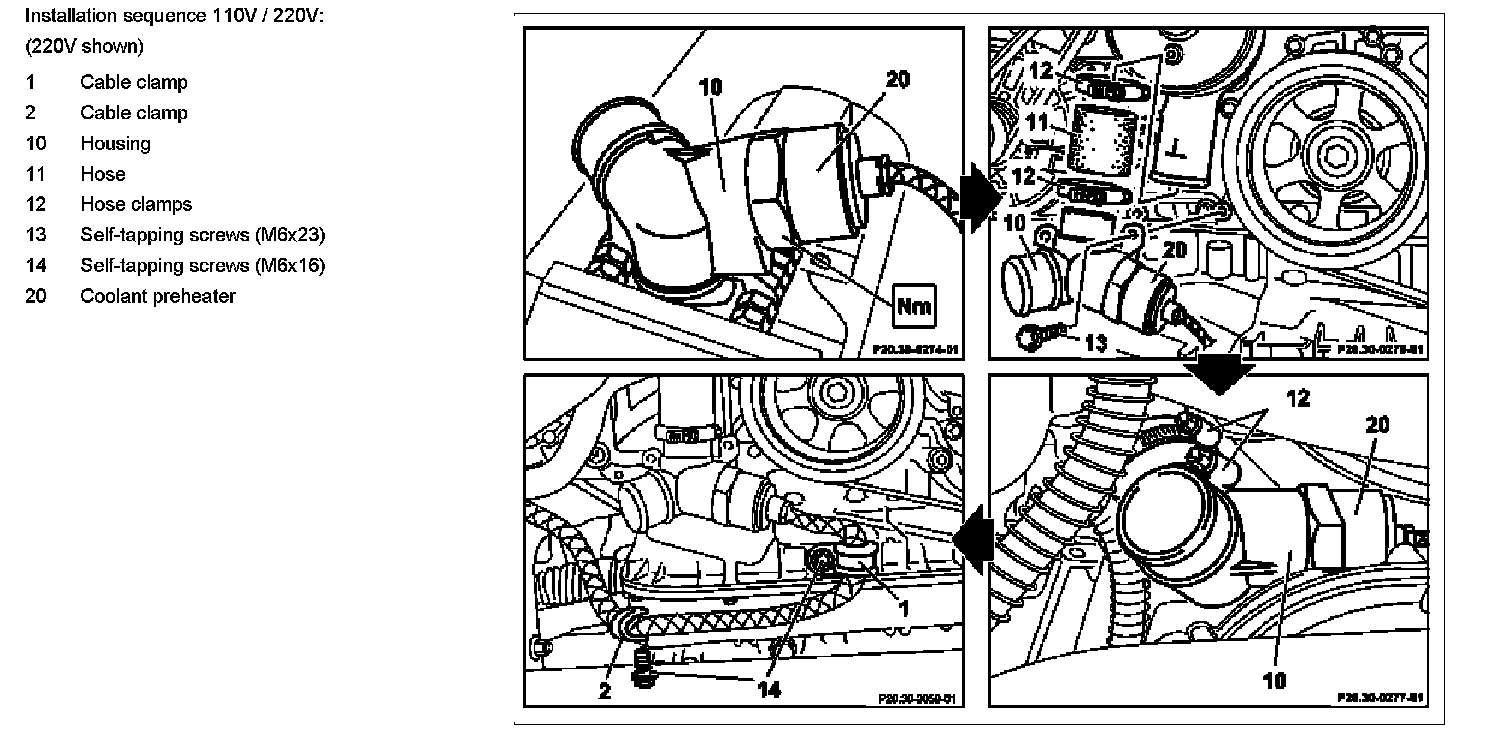

Component Identification:

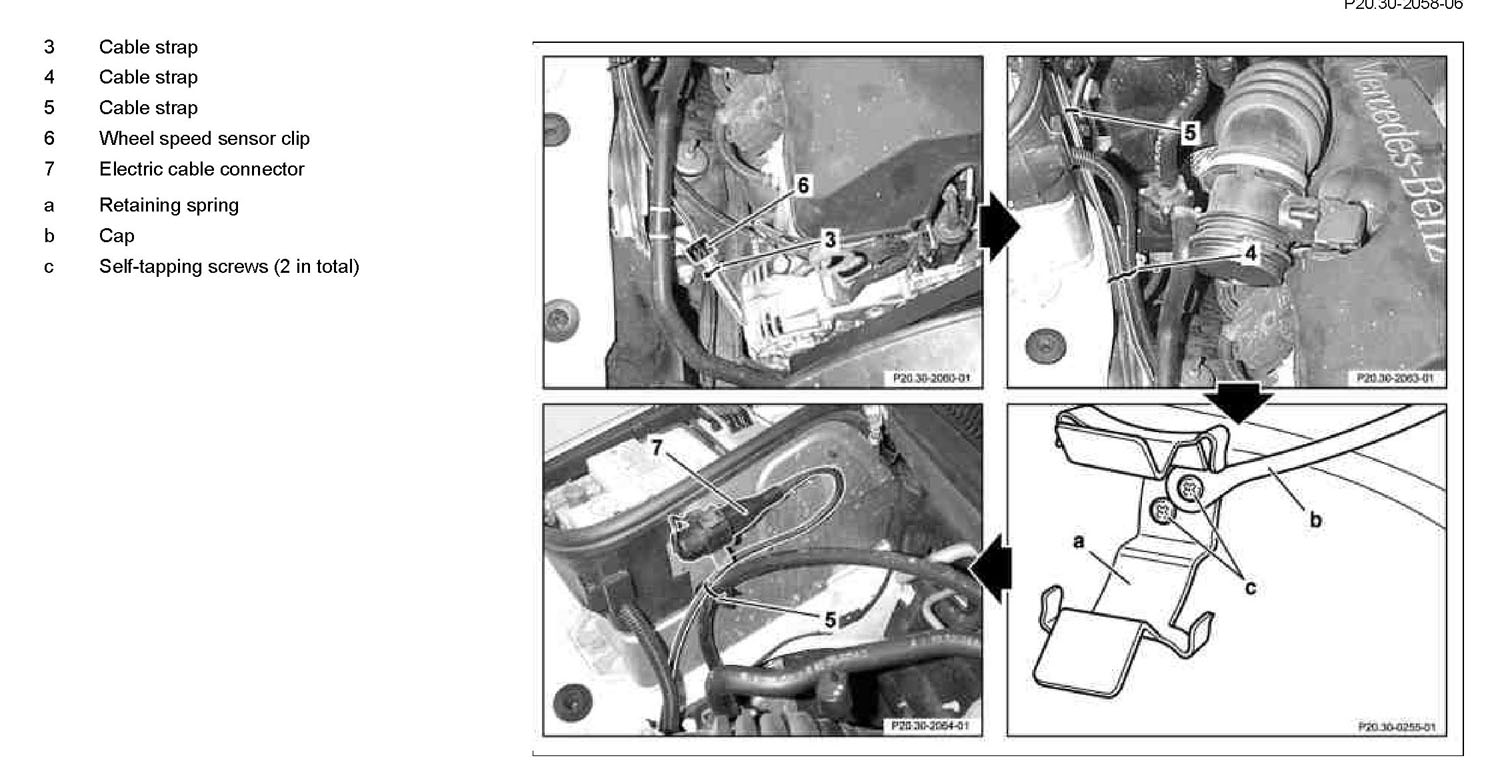

Component Identification:

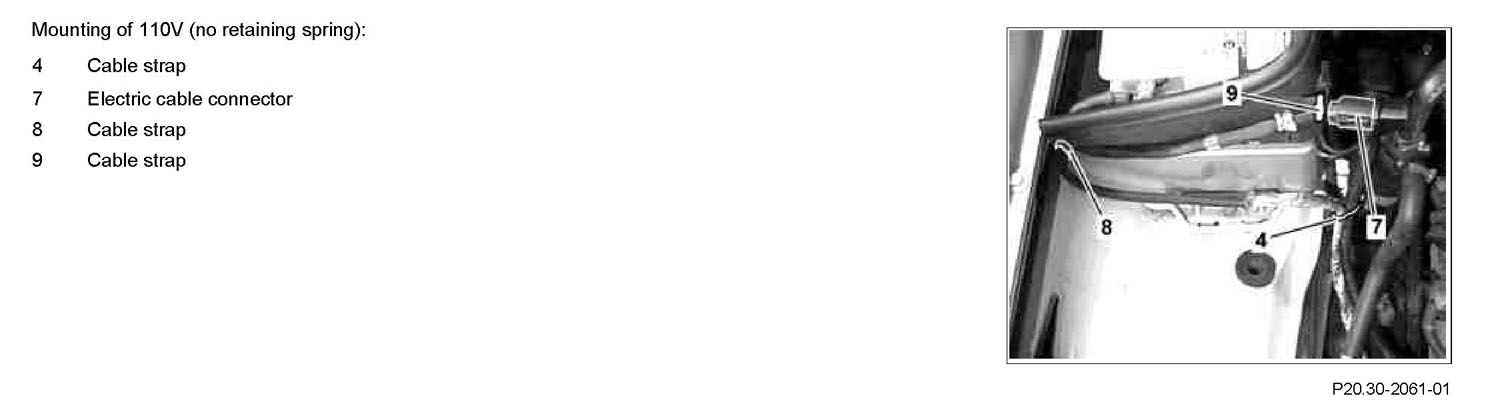

Component Identification:

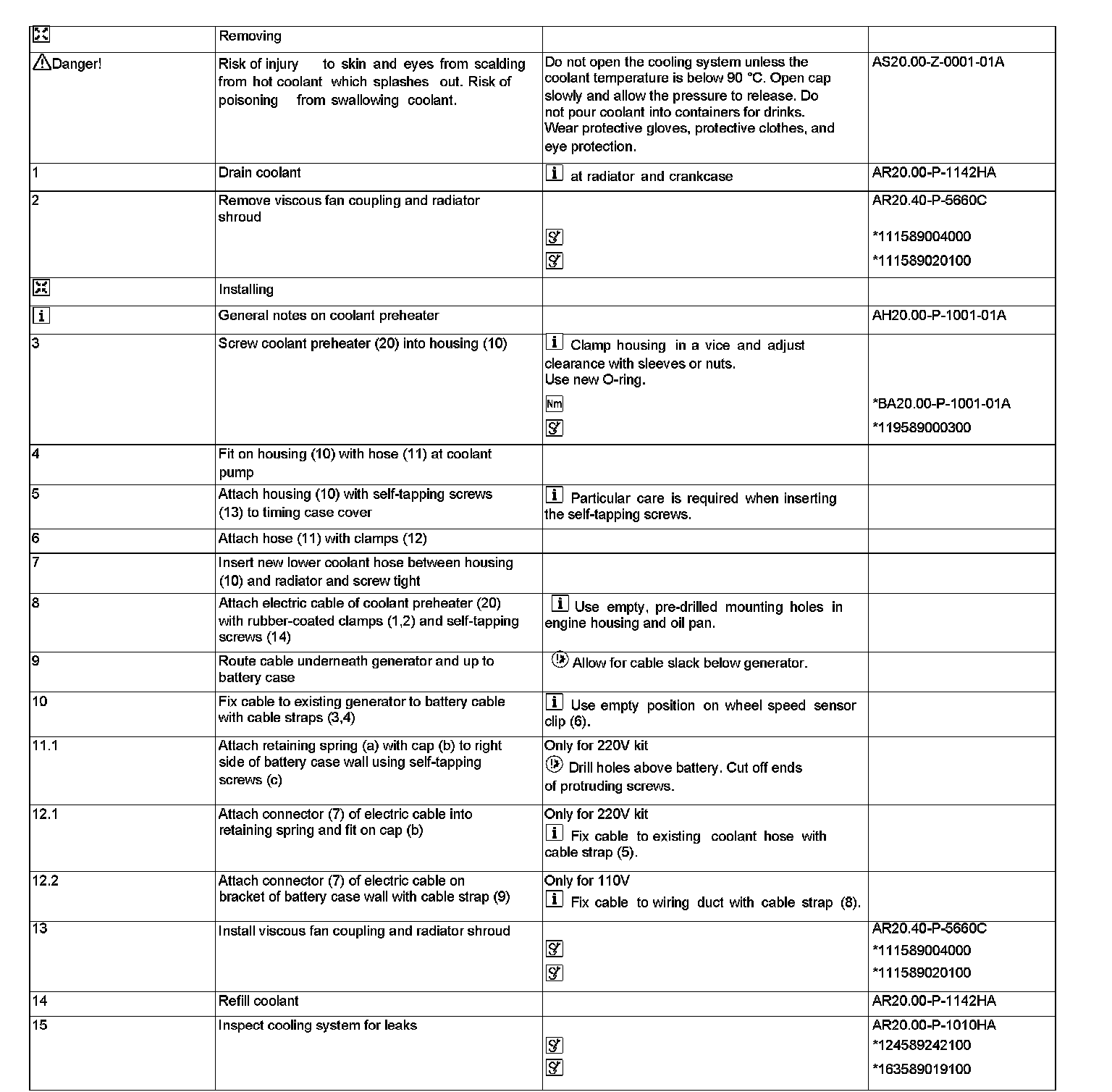

Steps 1-15:

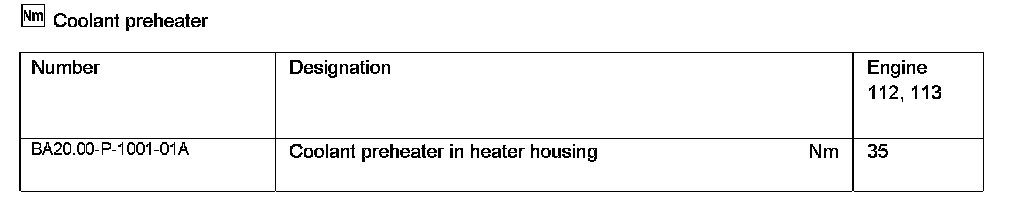

Coolant Preheater:

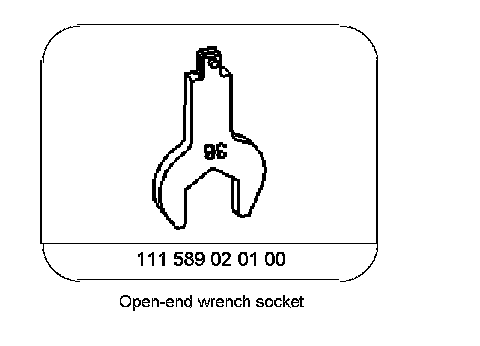

Special Tools:

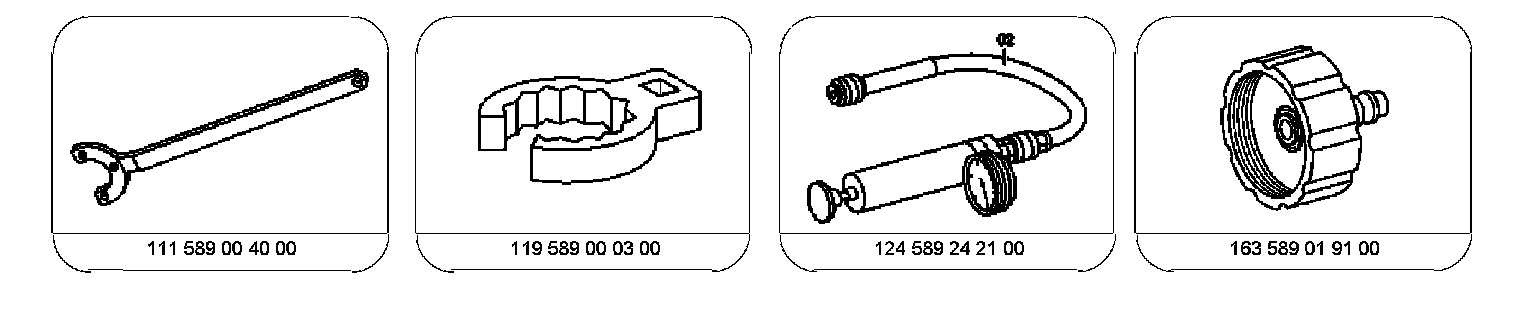

Special Tools:




Special Tools:

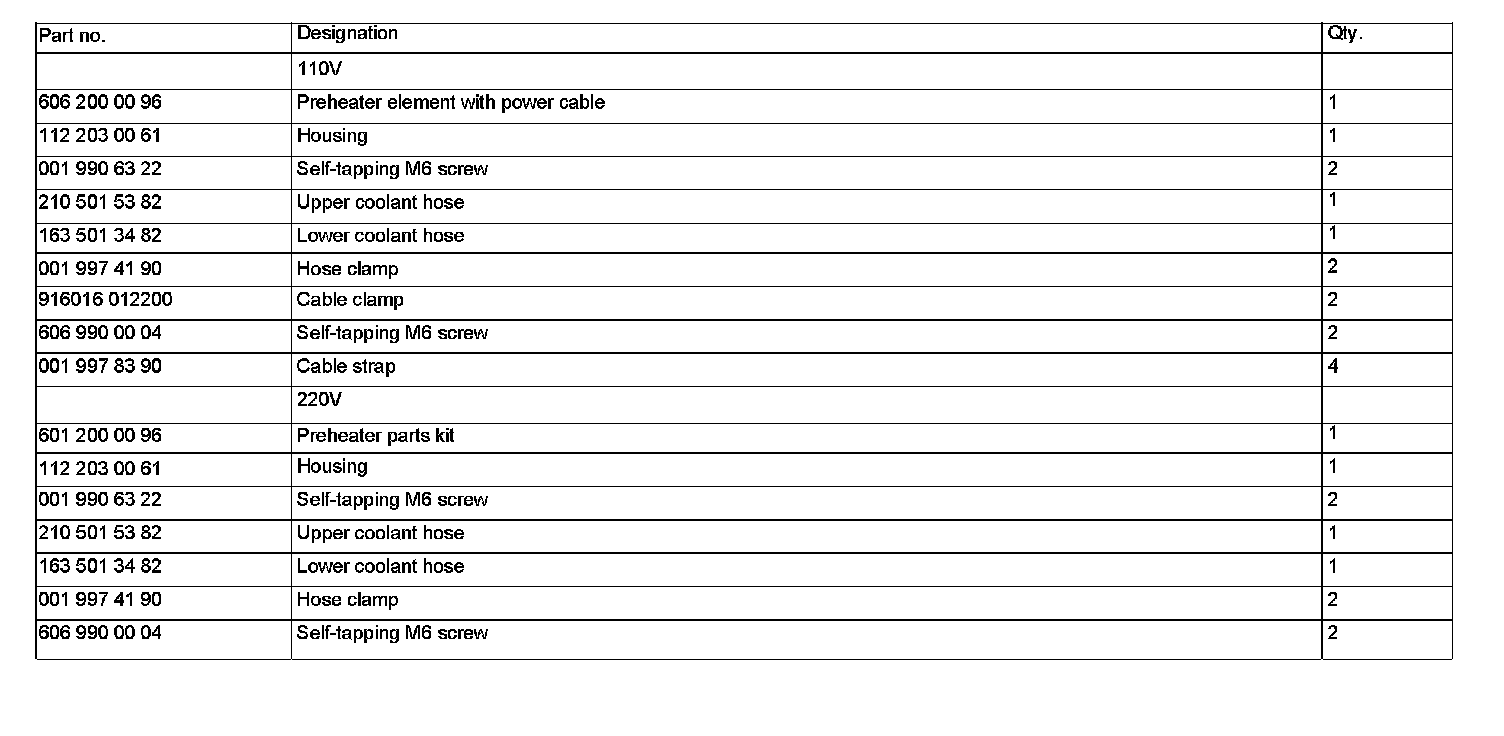

Parts Order Notes:
