Radio (RD) Control Module PE82.60-U-2000U

Radio (RD) Control Module PE82.60-U-2000U
- with CODE (522) Radio Modular Control System (MCS)

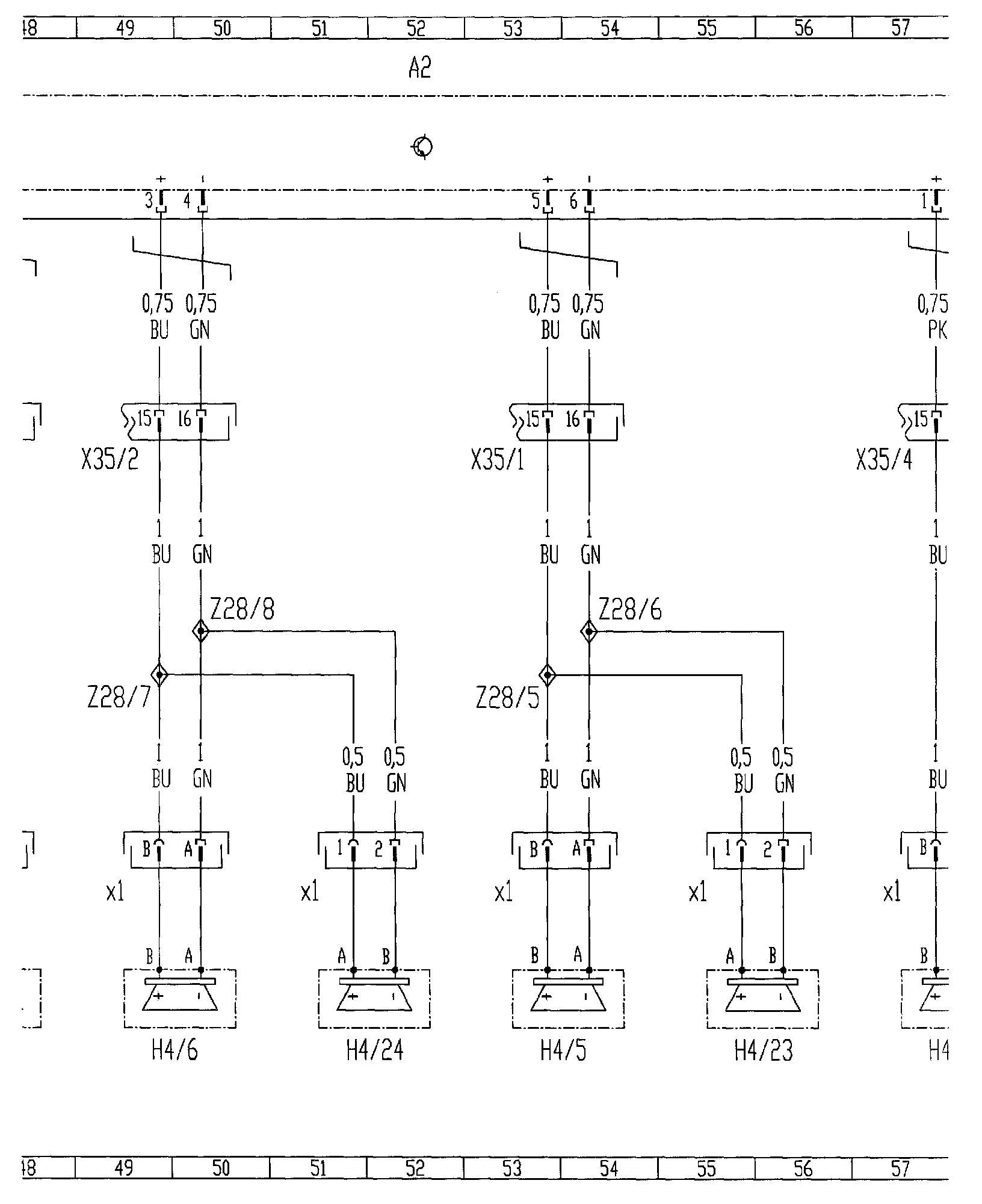

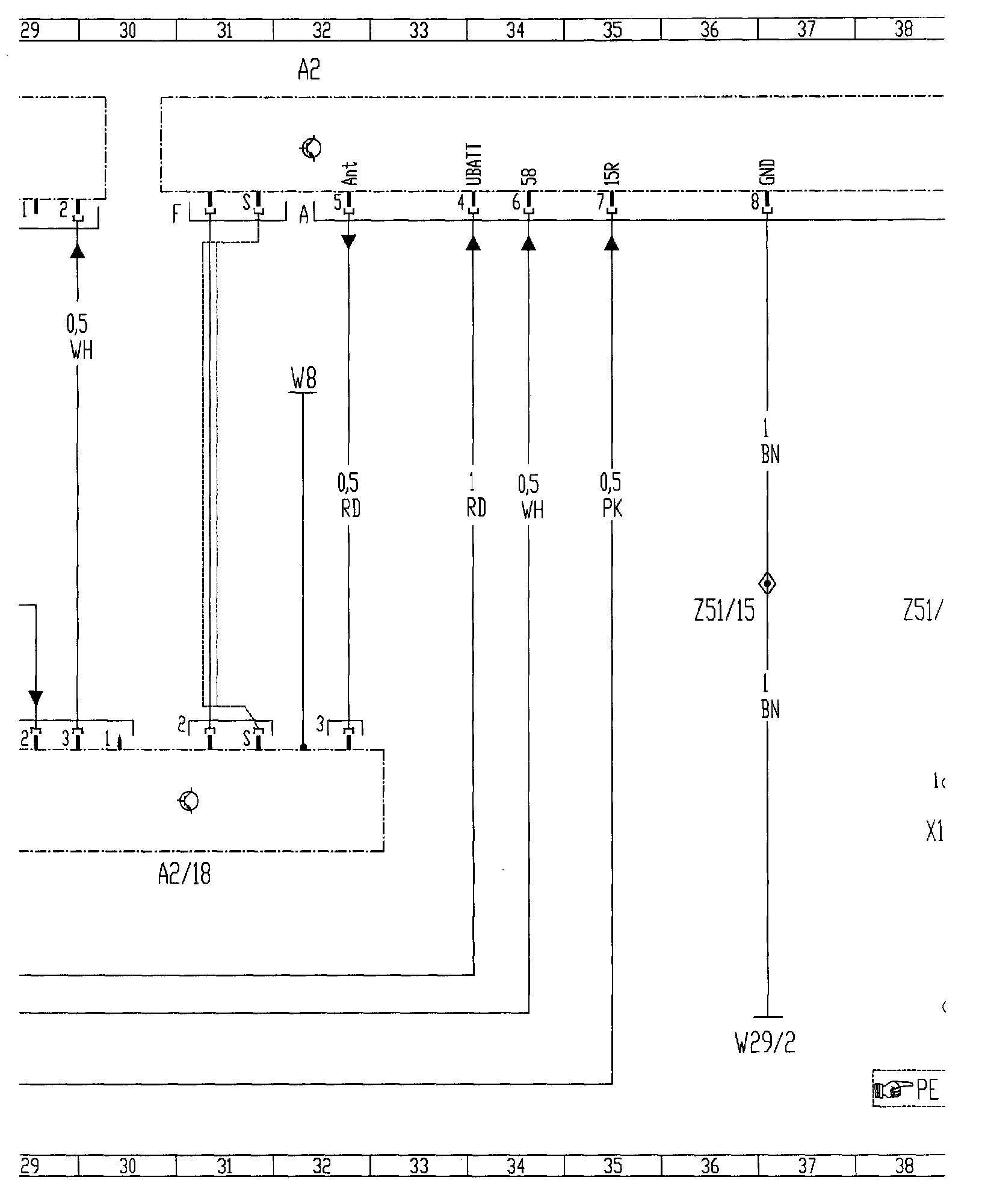

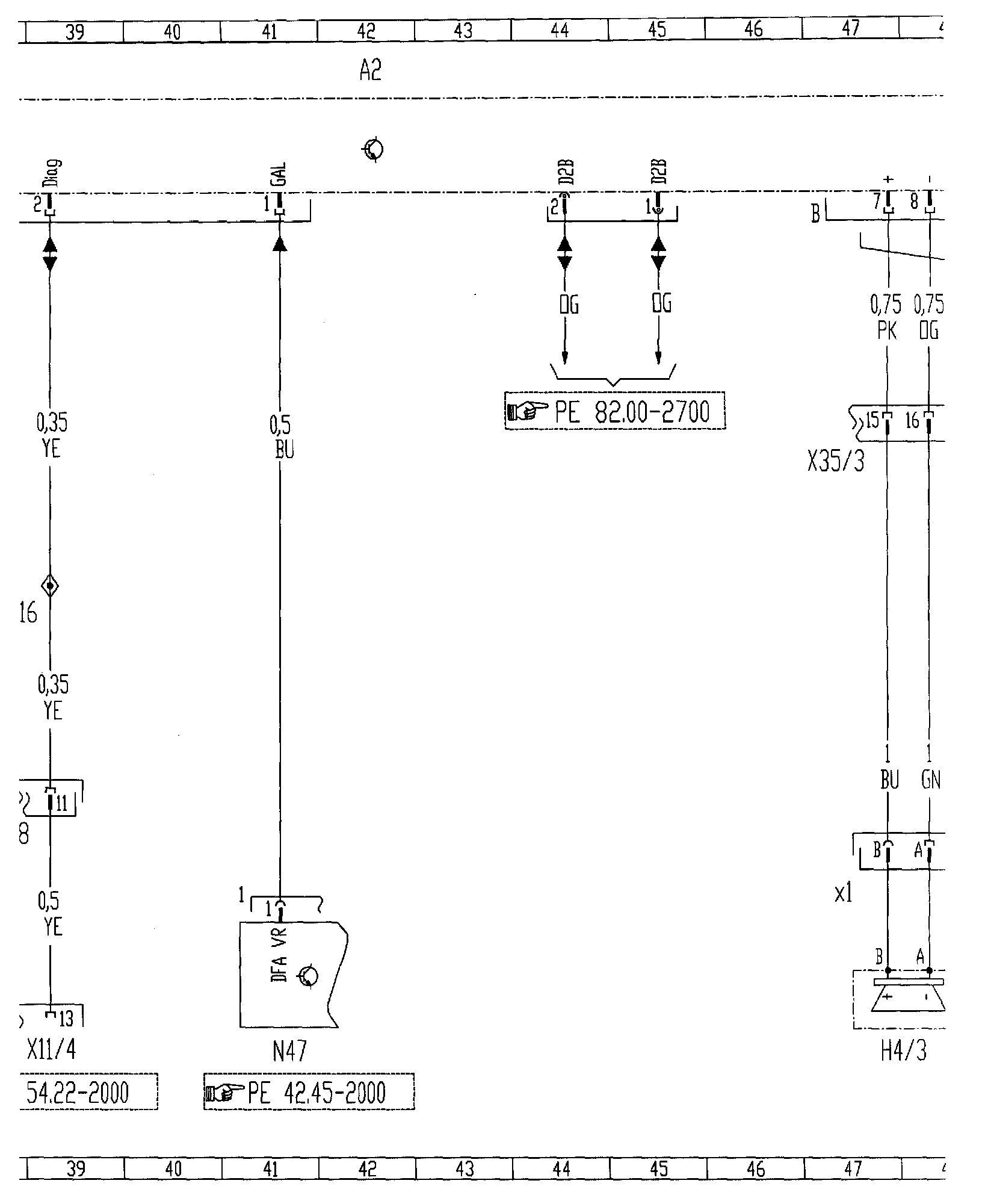

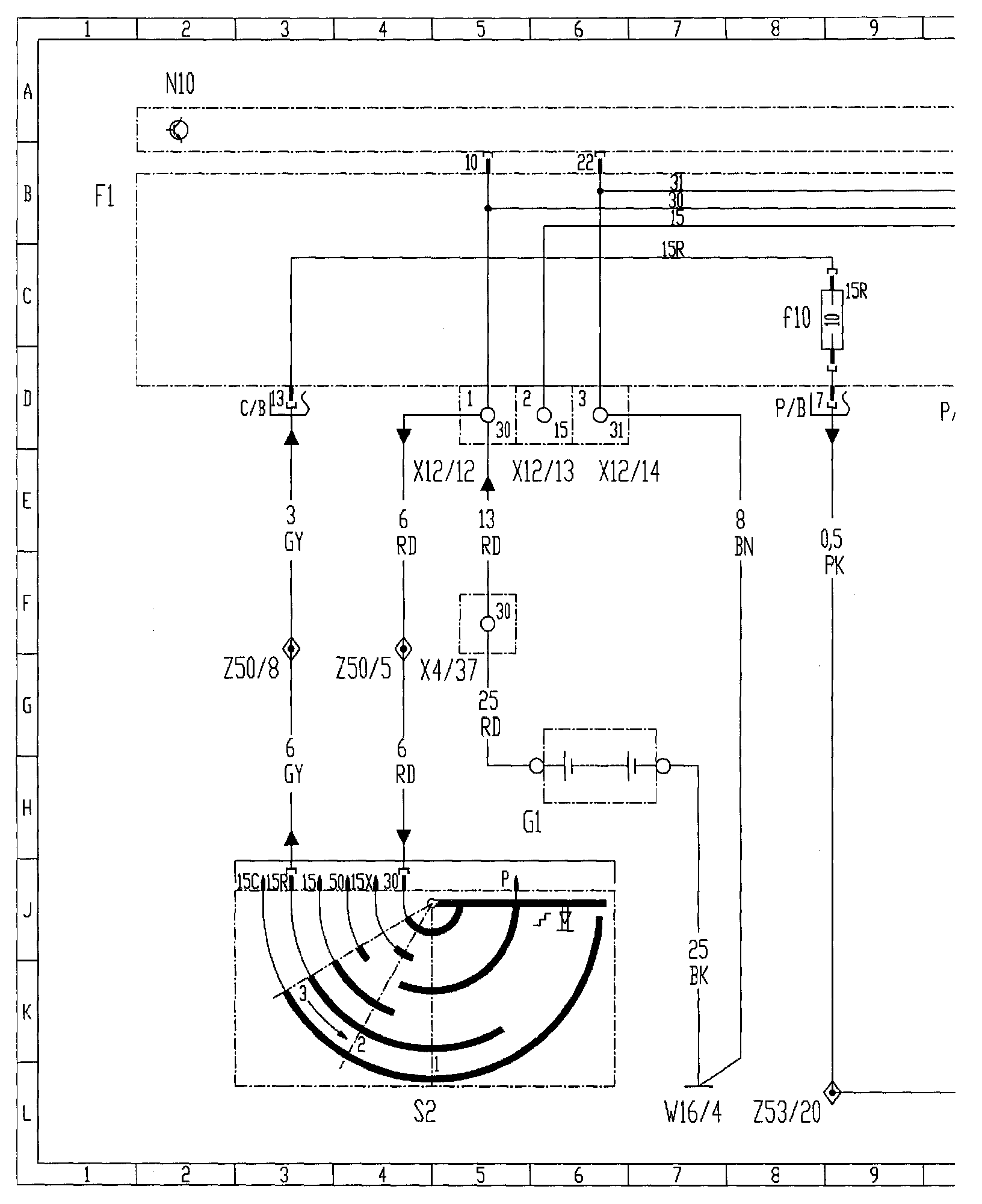

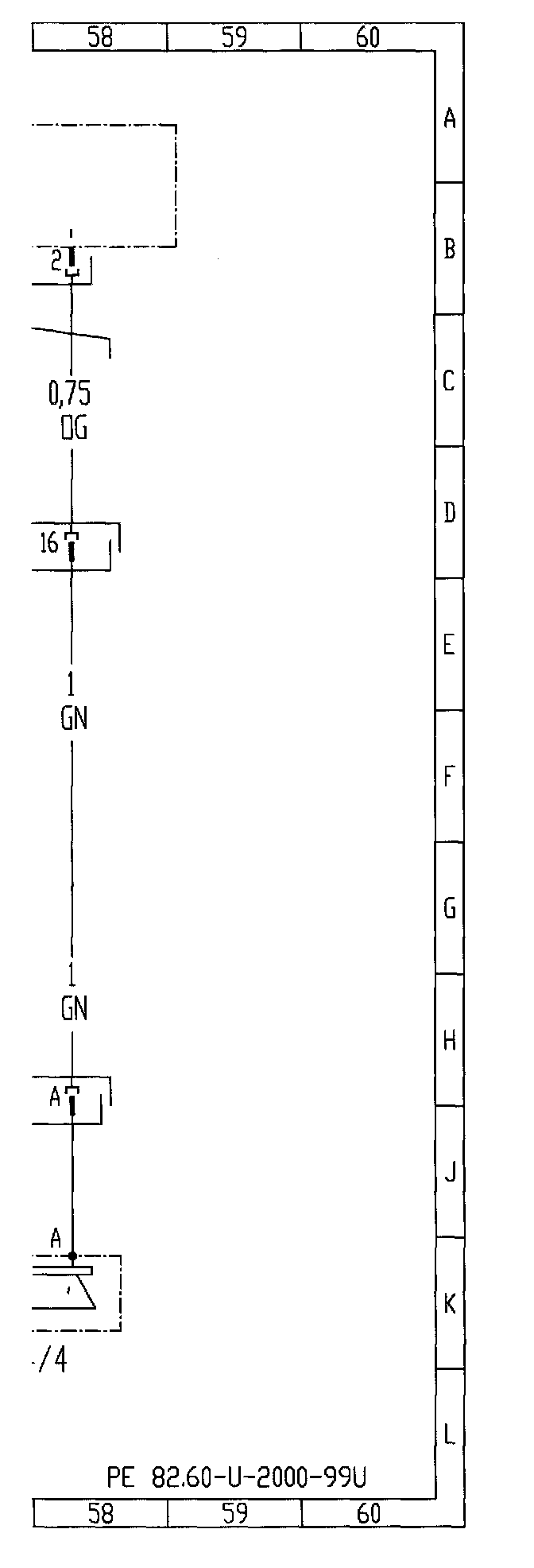

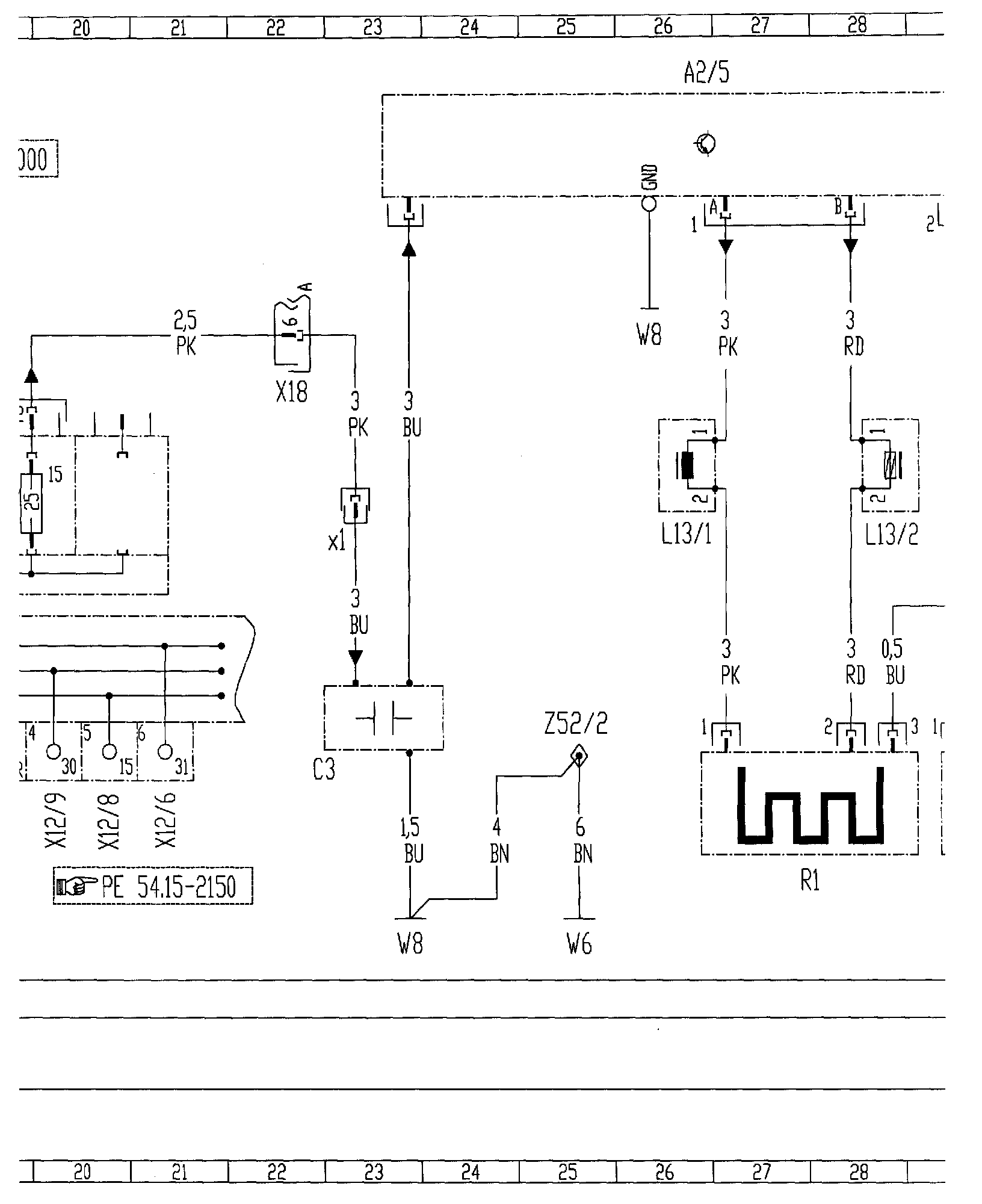

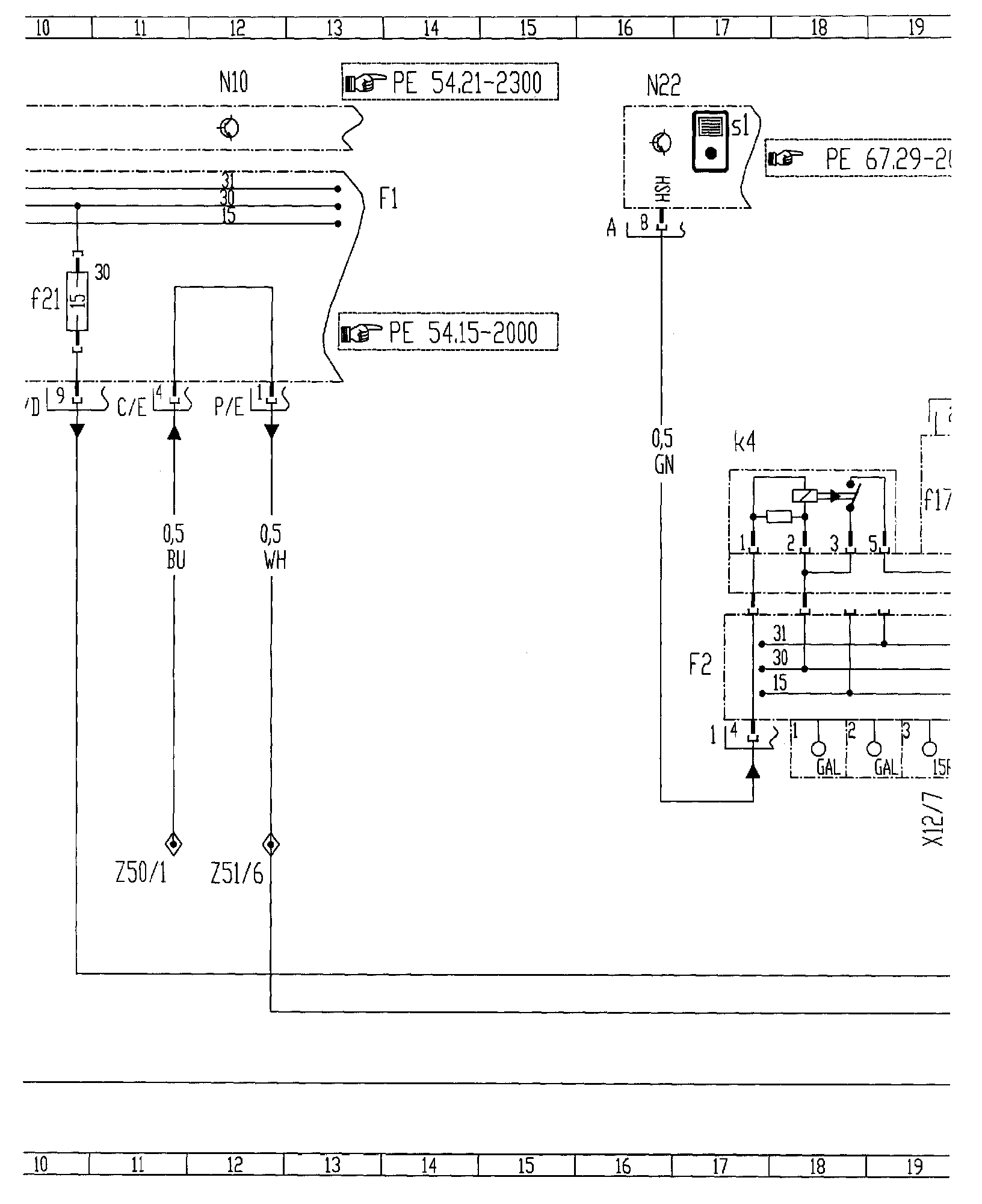

Radio:






Radio:






Radio:






Radio:






Radio:






Radio:






Radio:

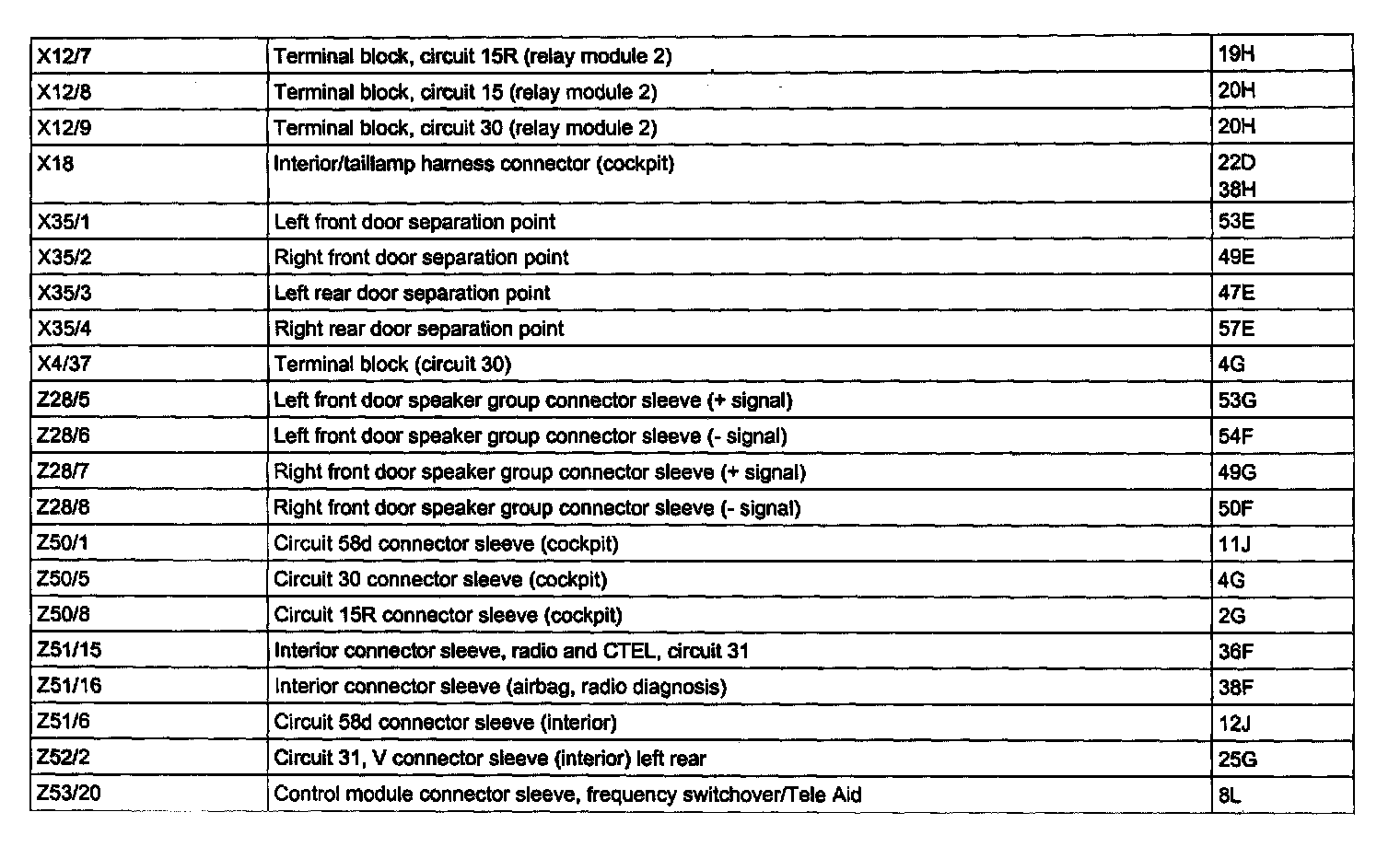

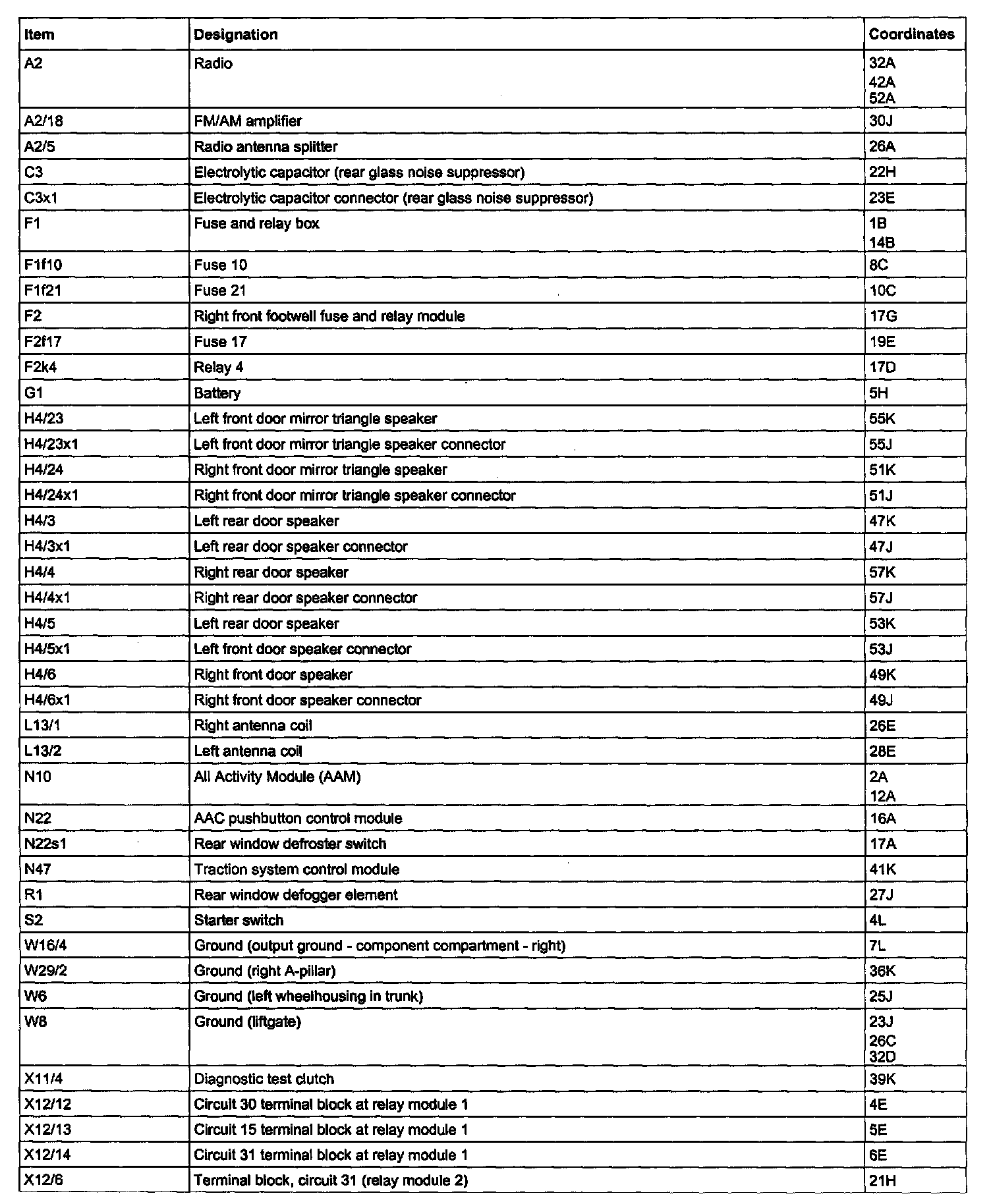

Legend For Radio:






Legend For Radio:
