Radio (RD) Control Module PE82.60-U-2000H

Radio (RD) Control Module PE82.60-U-2000H
- with CODE (522) Radio Modular Control System (MCS)
- with CODE (351) Auto Pilot System (APS)
- with CODE (810) Sound System
- with CODE (819) 6-disc CD changer

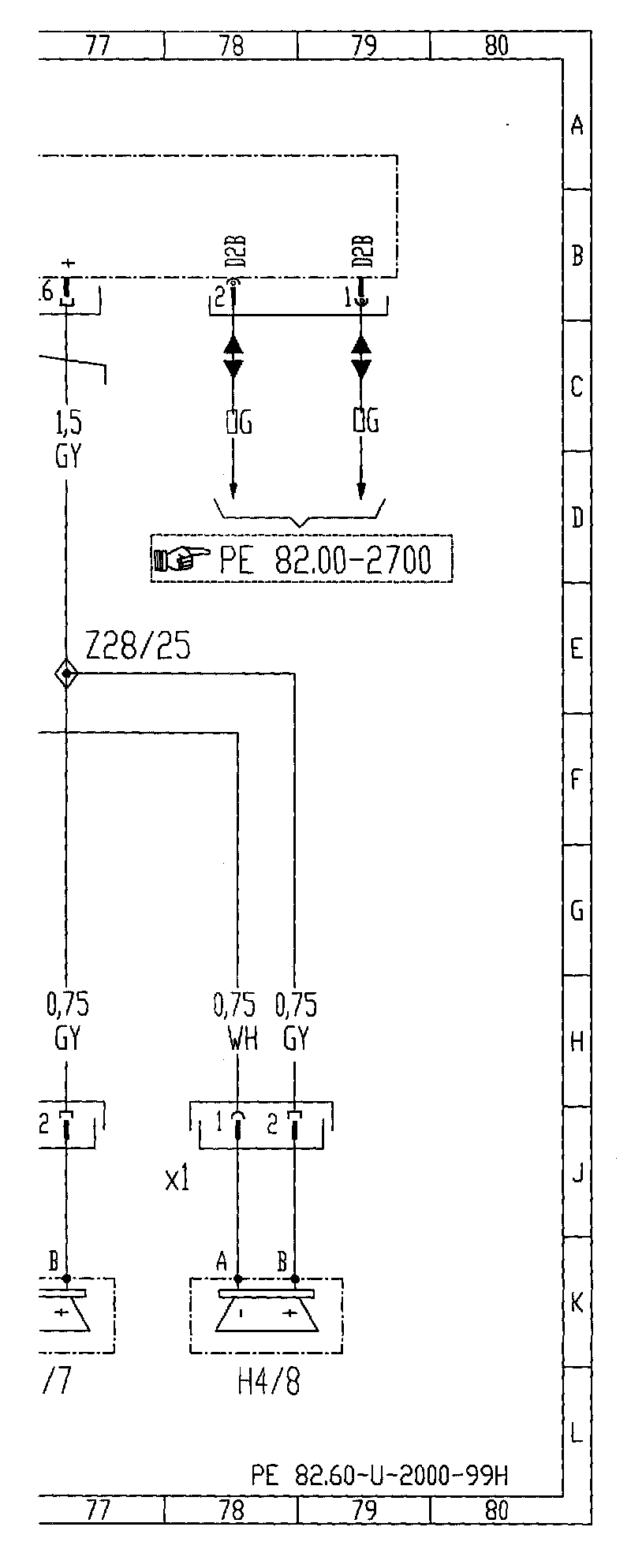

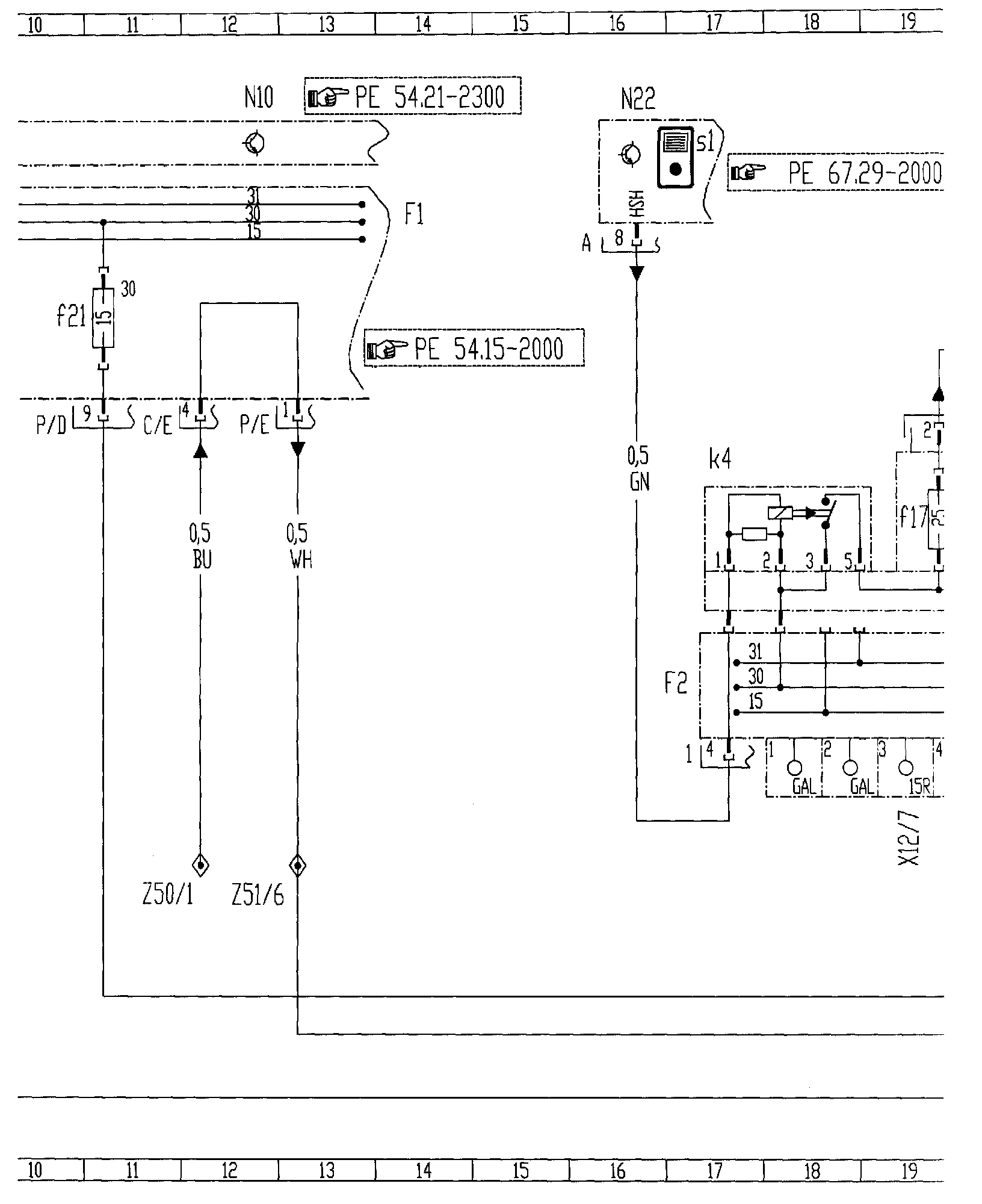

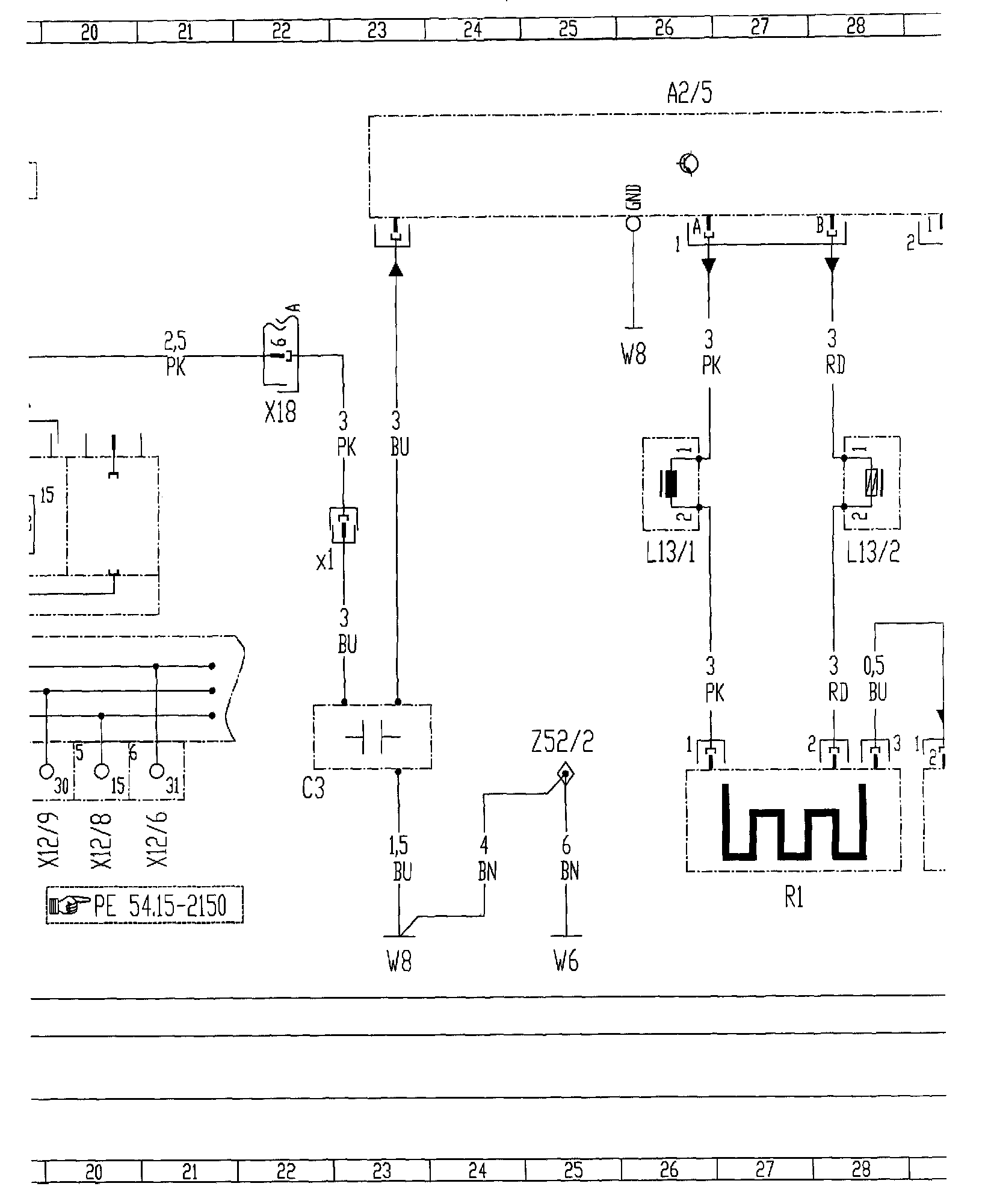

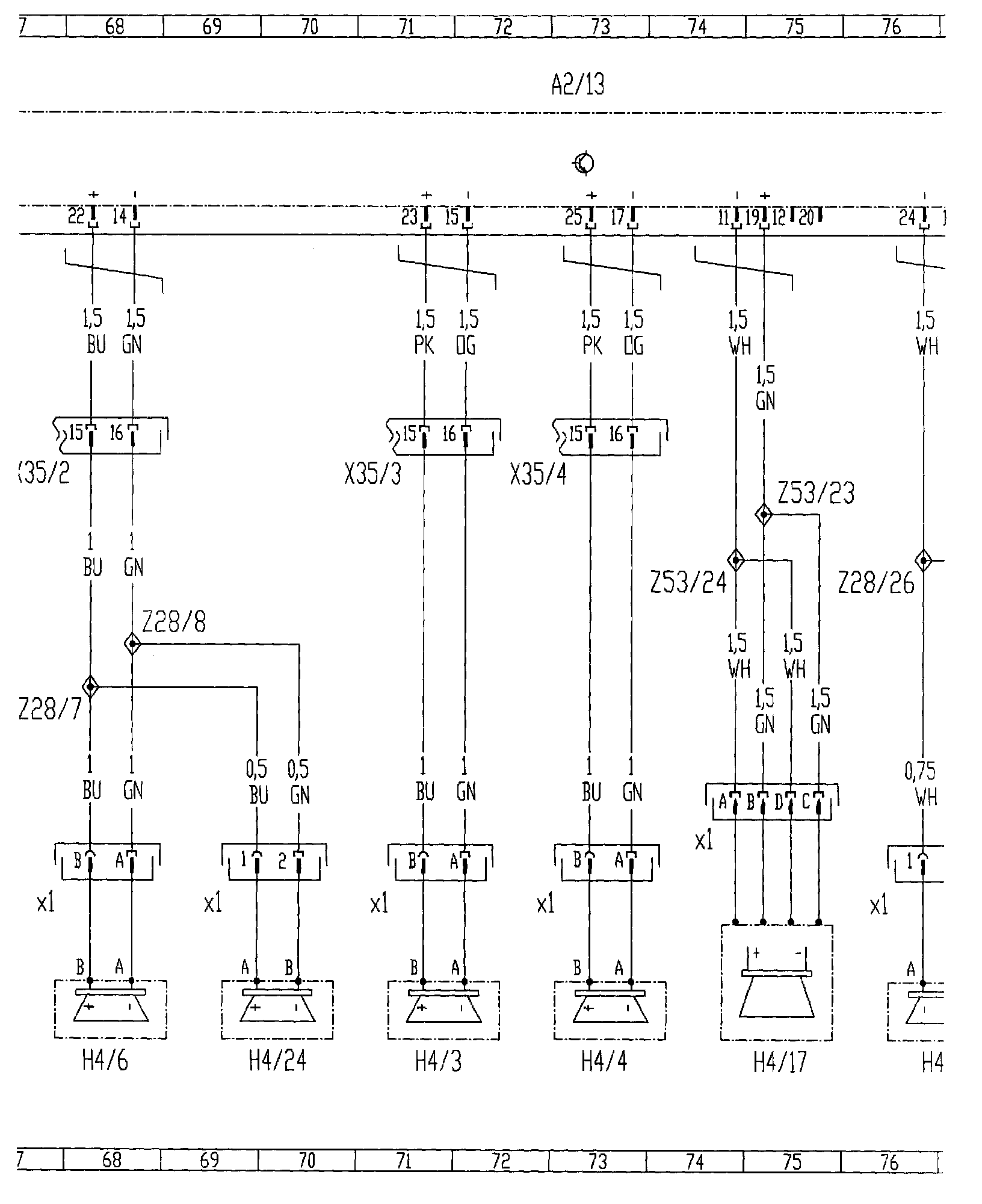

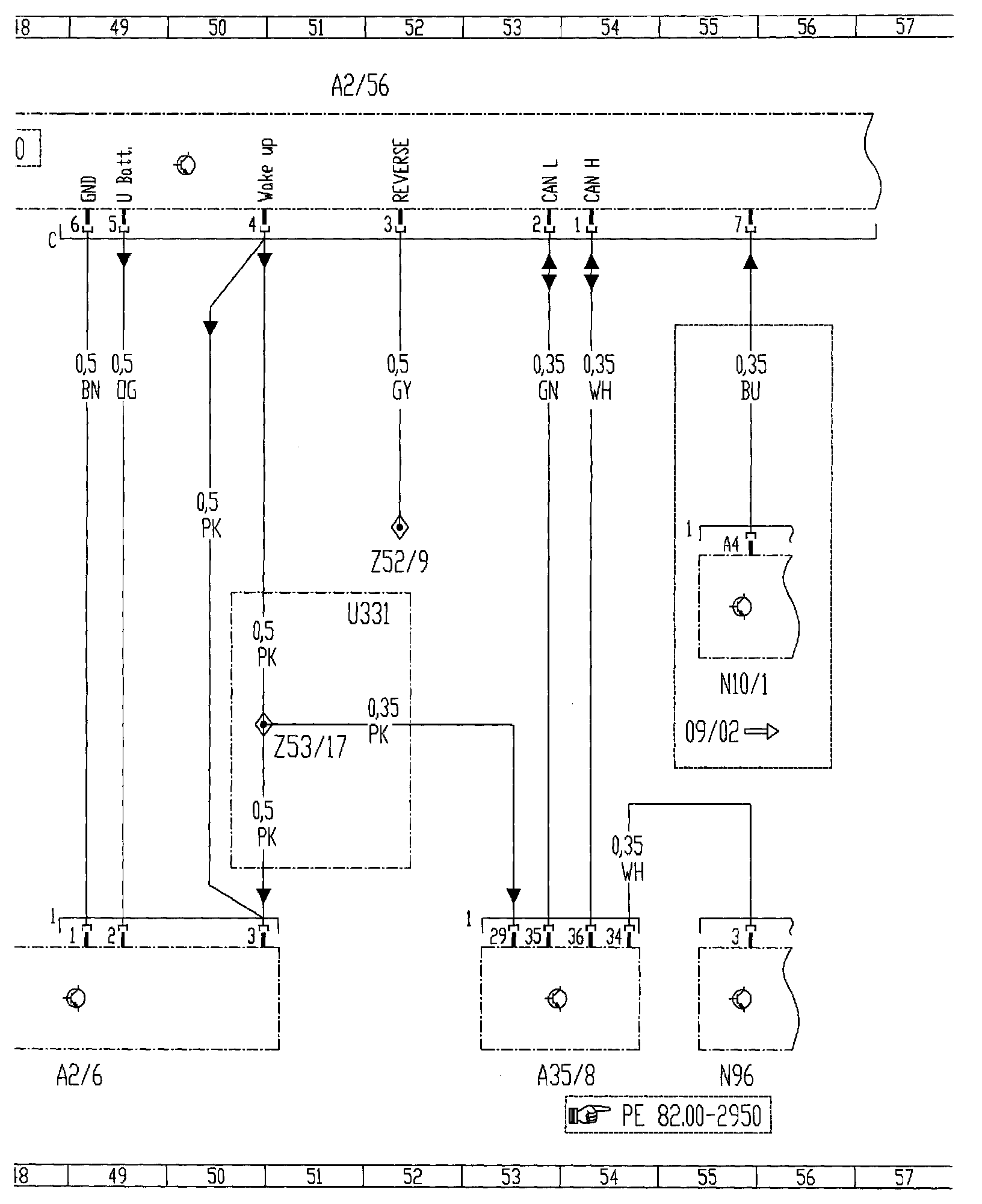

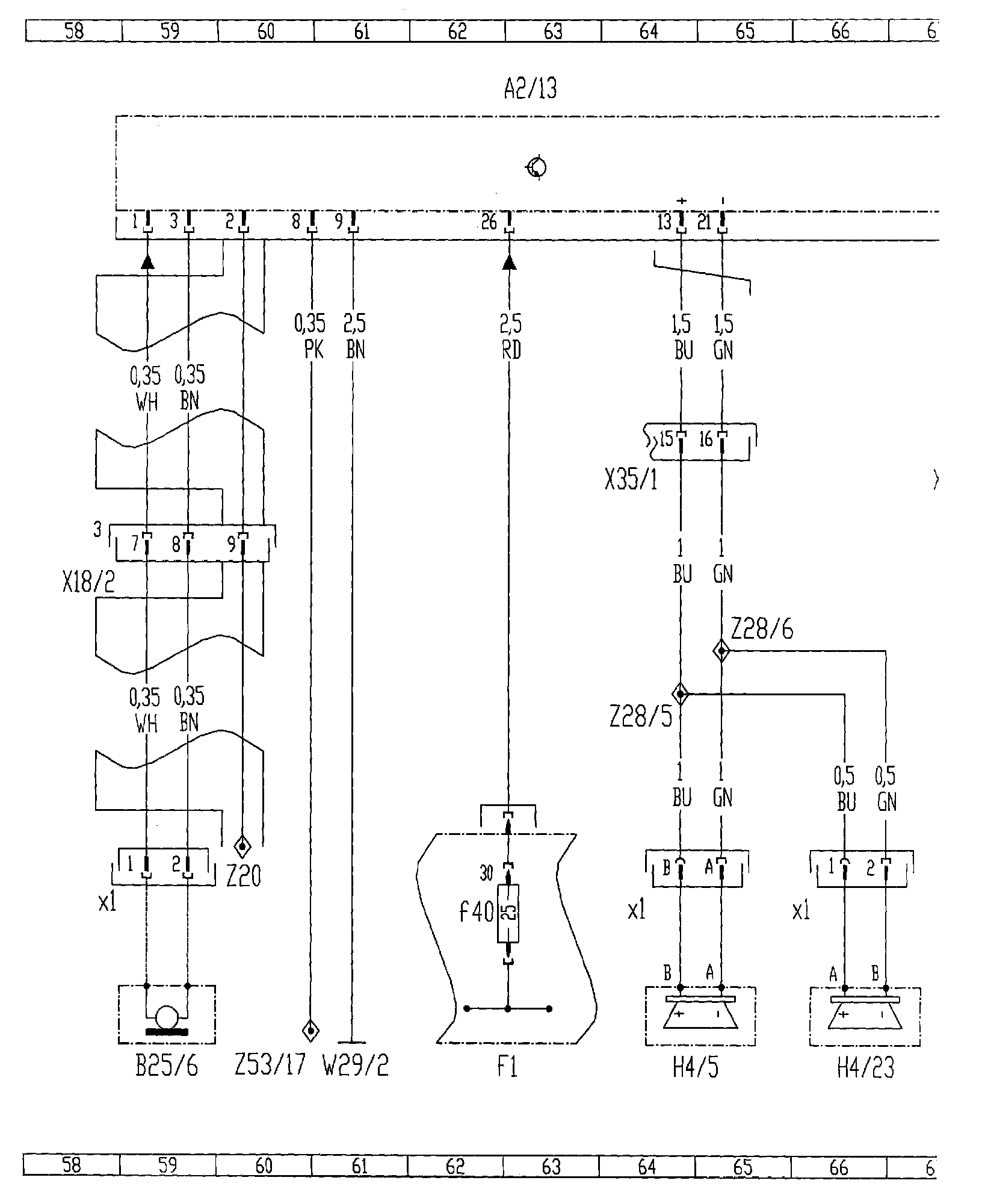

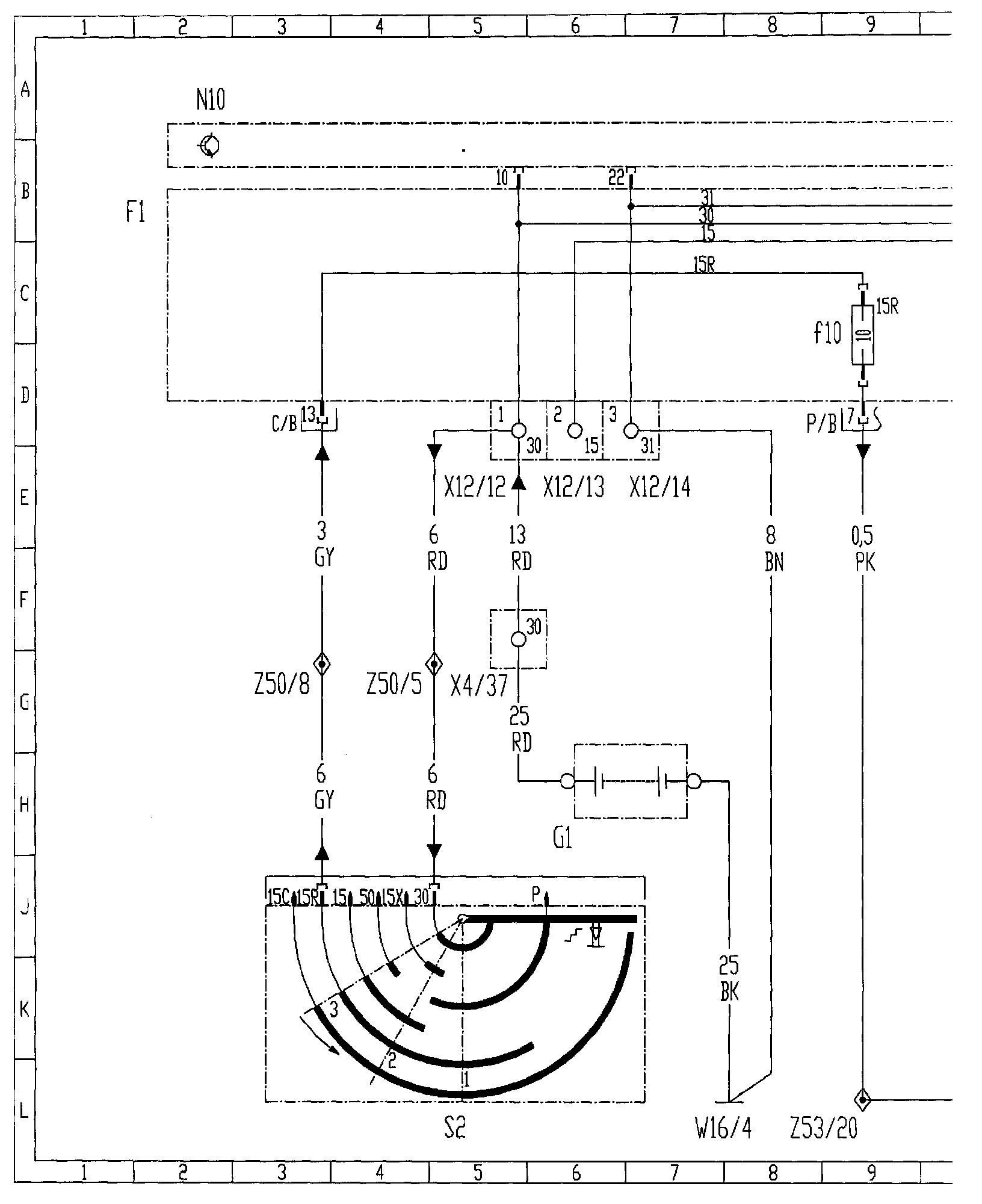

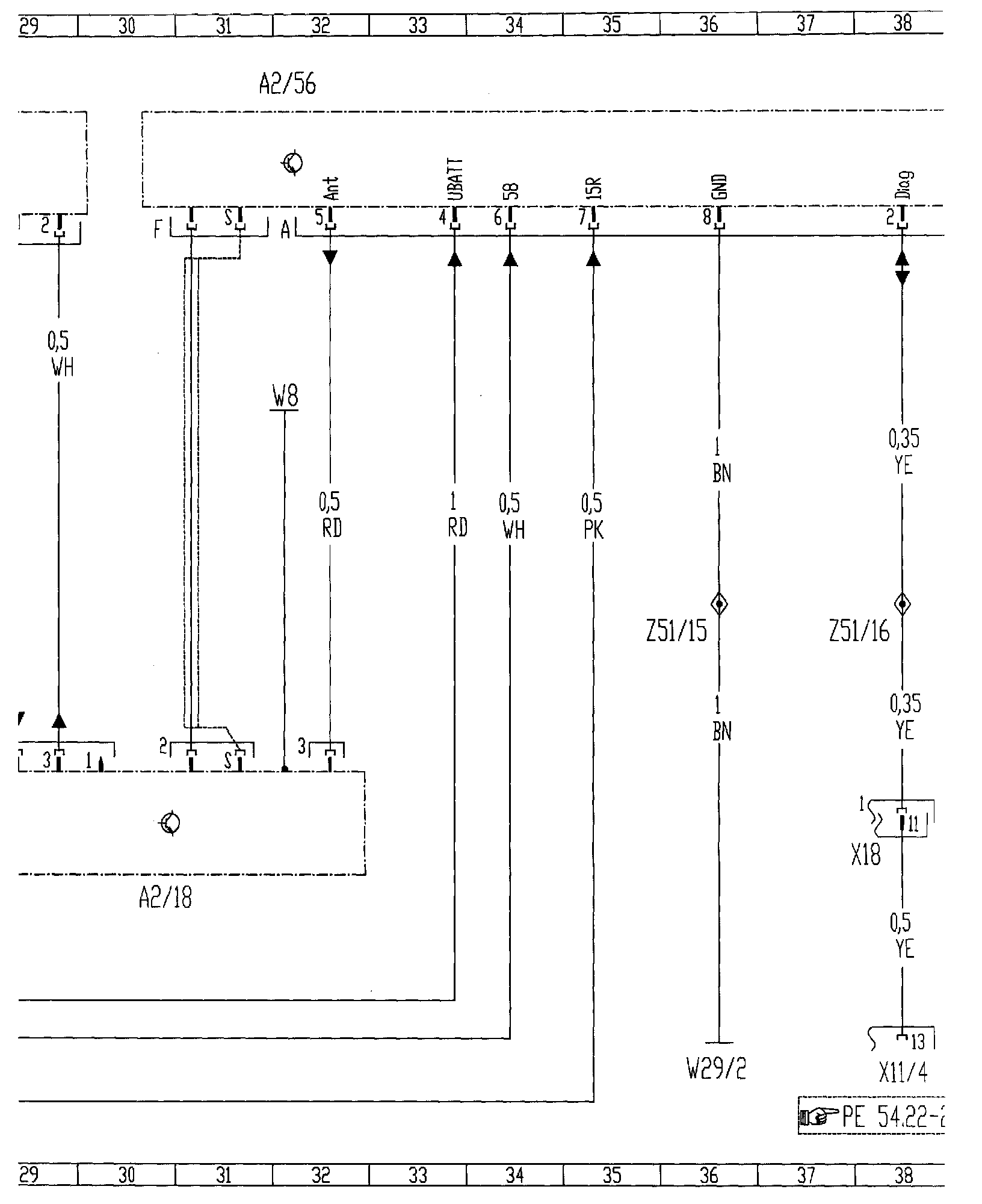

Radio:






Radio:






Radio:






Radio:






Radio:






Radio:






Radio:






Radio:






Radio:

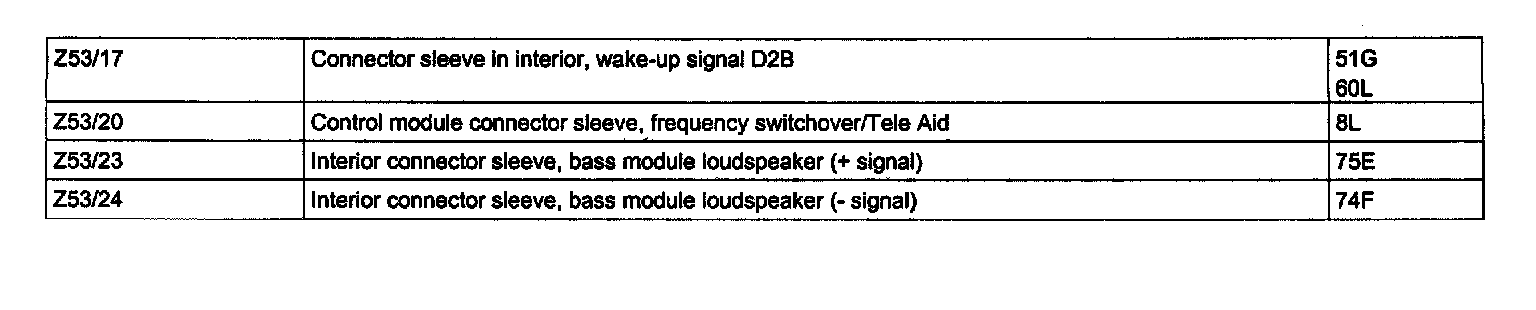

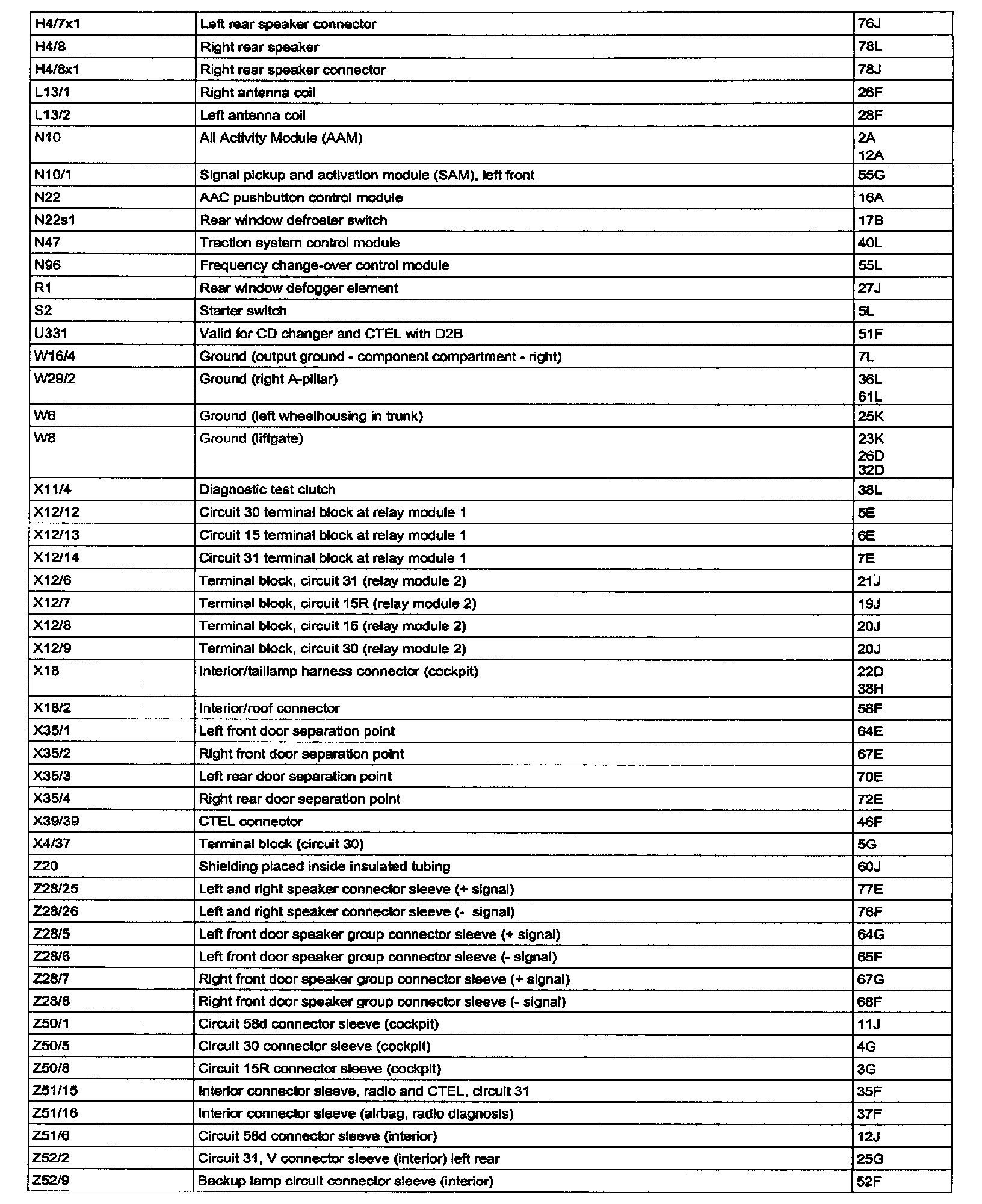

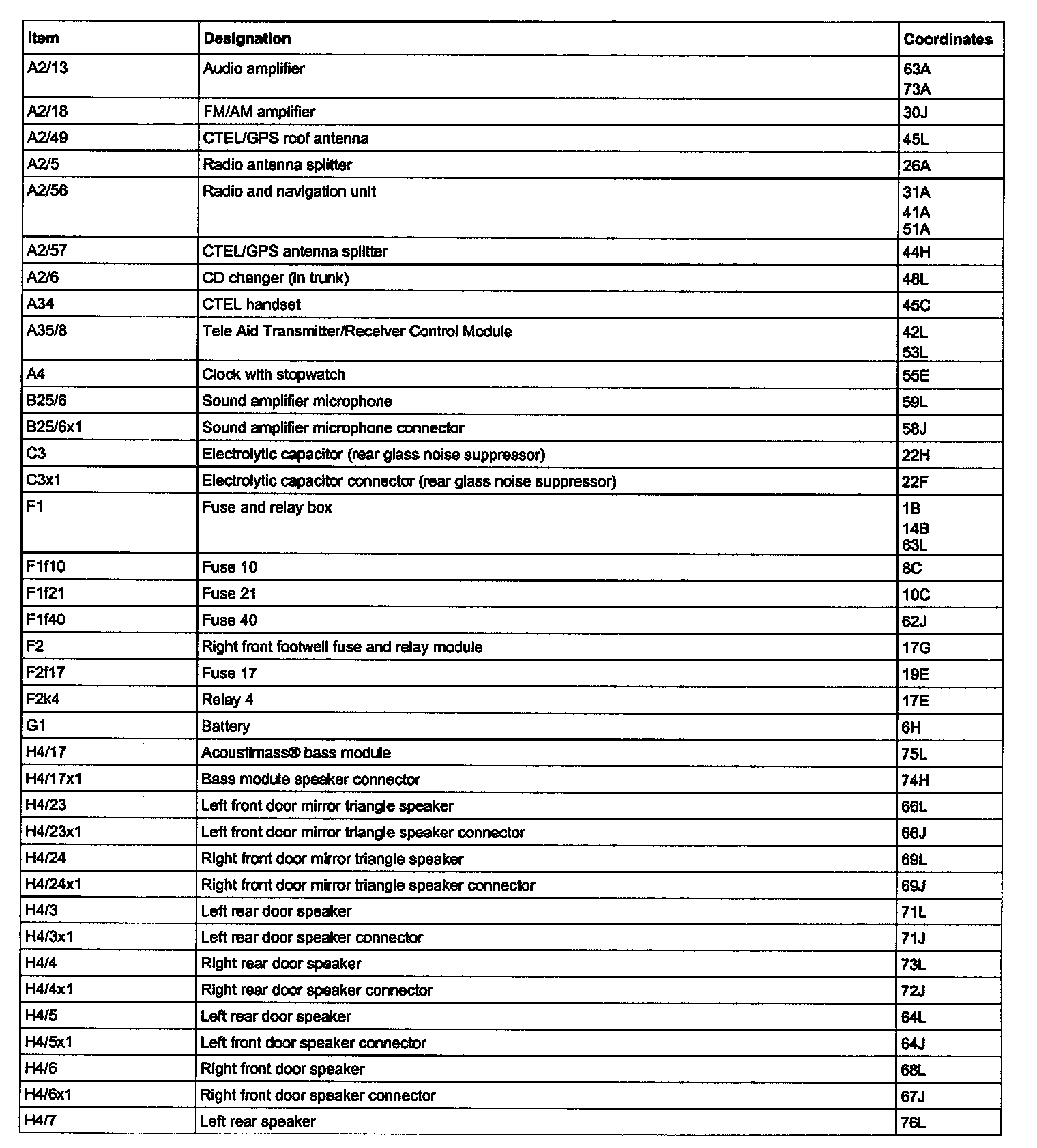

Legend For Radio:






Legend For Radio:






Legend For Radio:
