AR42.10-P-0070GI Remove/Install Front Axle Brake Caliper

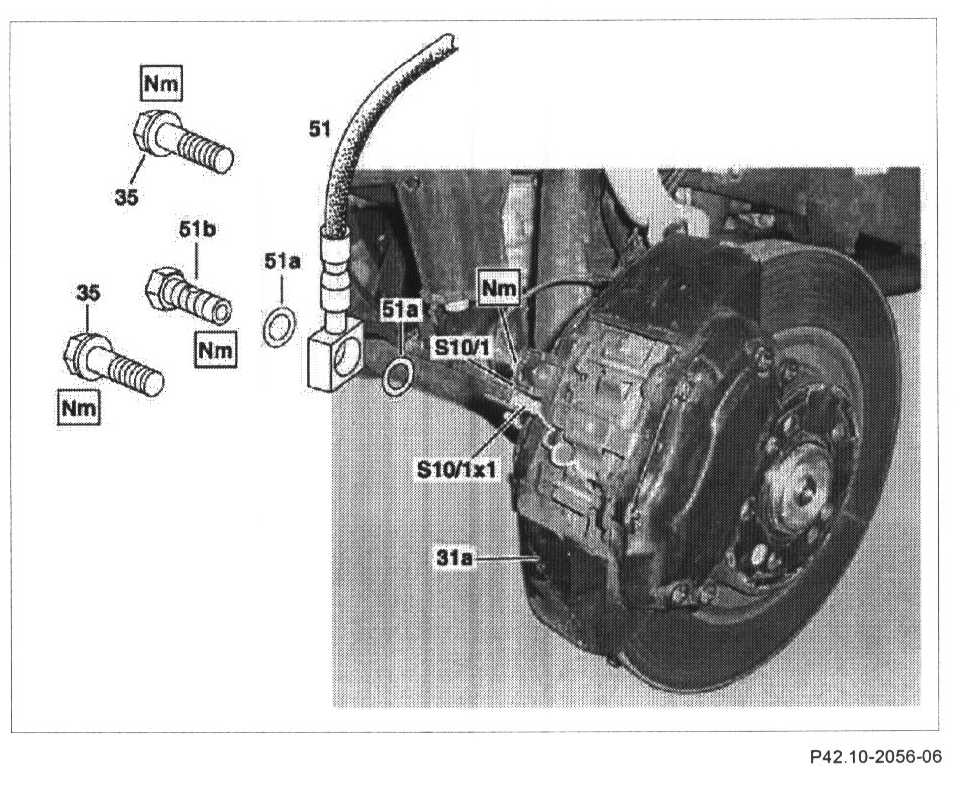

Operation Illustration, Fixed Caliper:

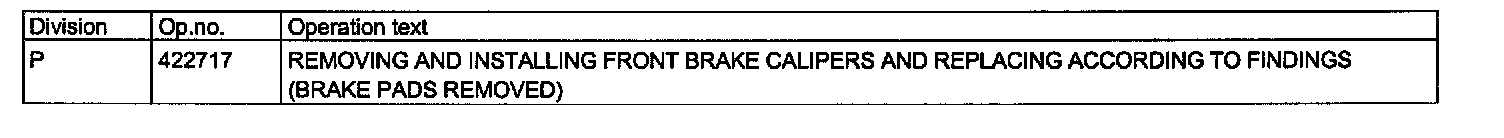

Operation no. of operation texts or standard texts and flat rates:

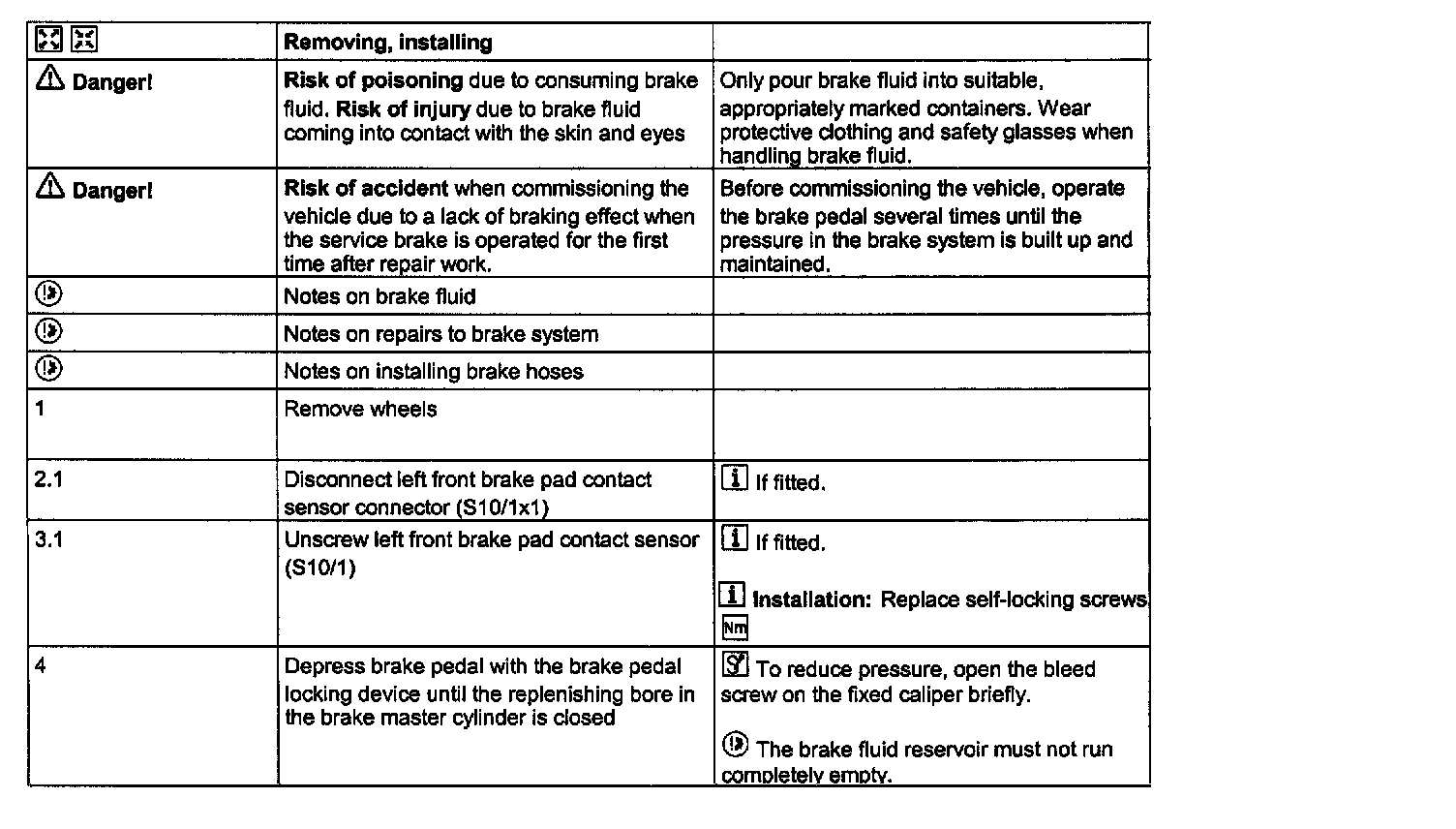

Service Procedures (Steps 1 - 4):

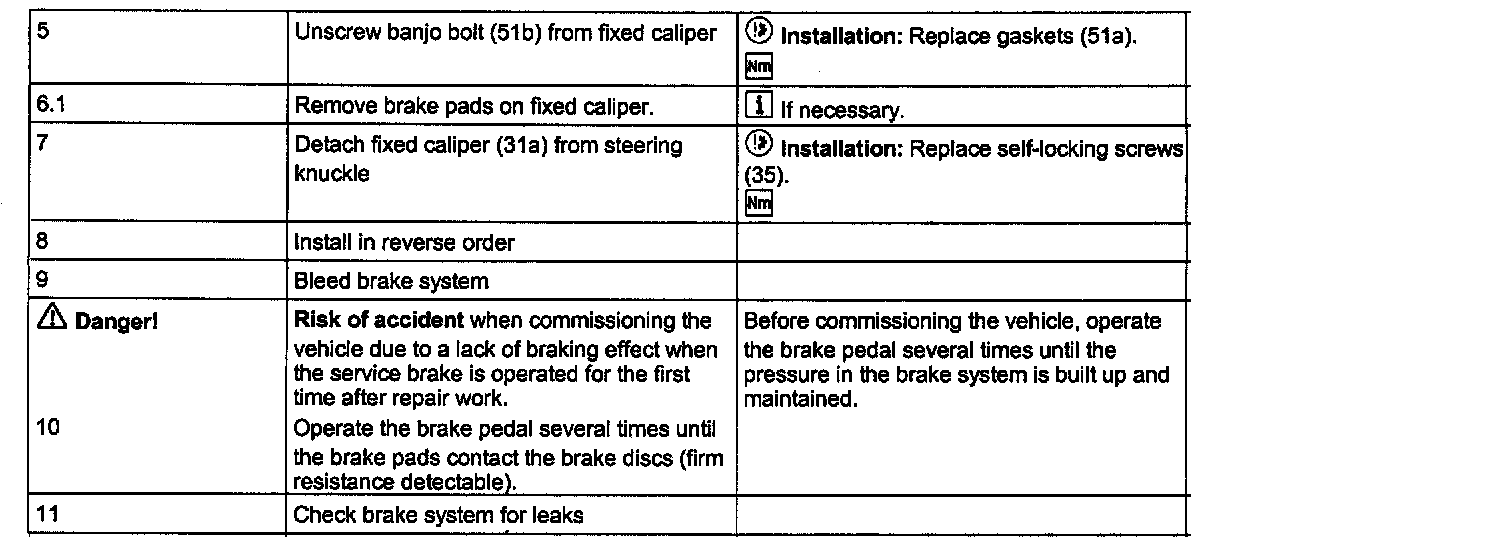

Service Procedures (Steps 5 - 11):

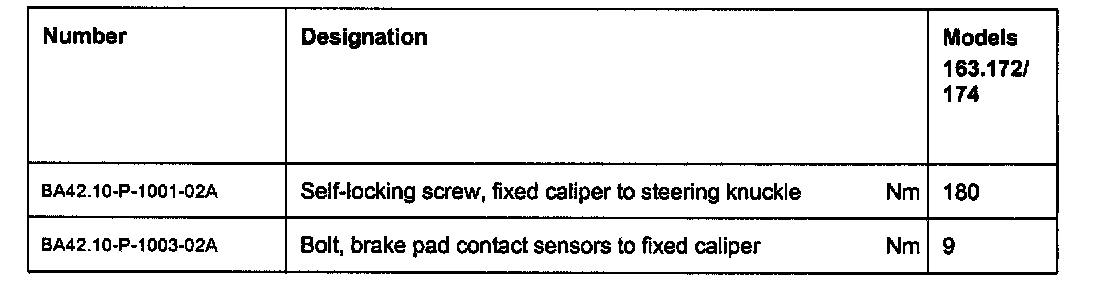

Specifications, Front Fixed Caliper:

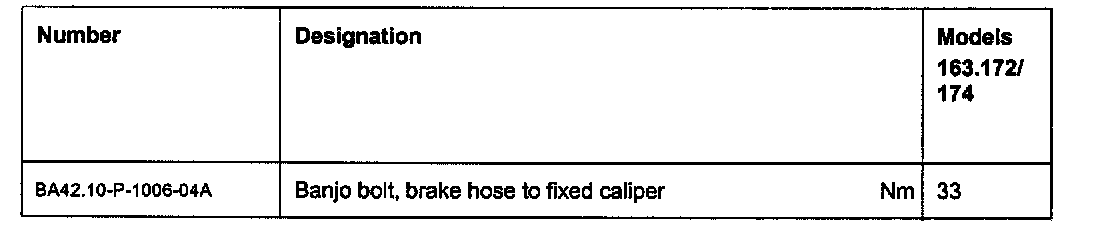

Specifications, Brake Pipes, Brake Hoses:

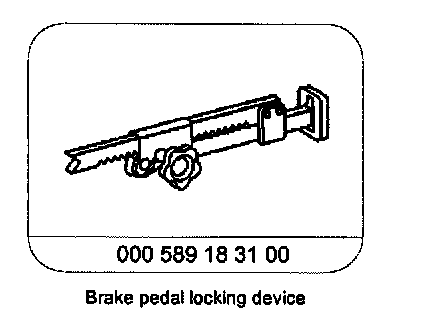

Special Tools:
