AR42.10-P-0070GH Remove/Install Front Axle Brake Caliper

Operation Illustration, Floating Caliper:

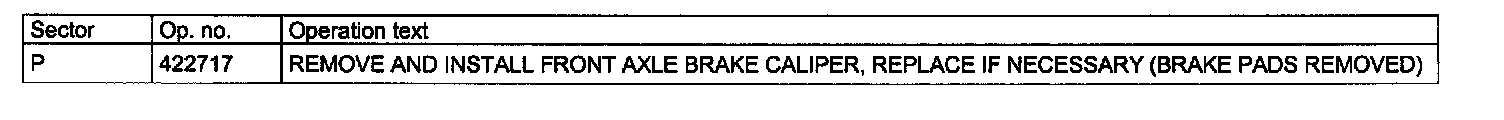

Operation no. of operation texts or standard texts and flat rates:

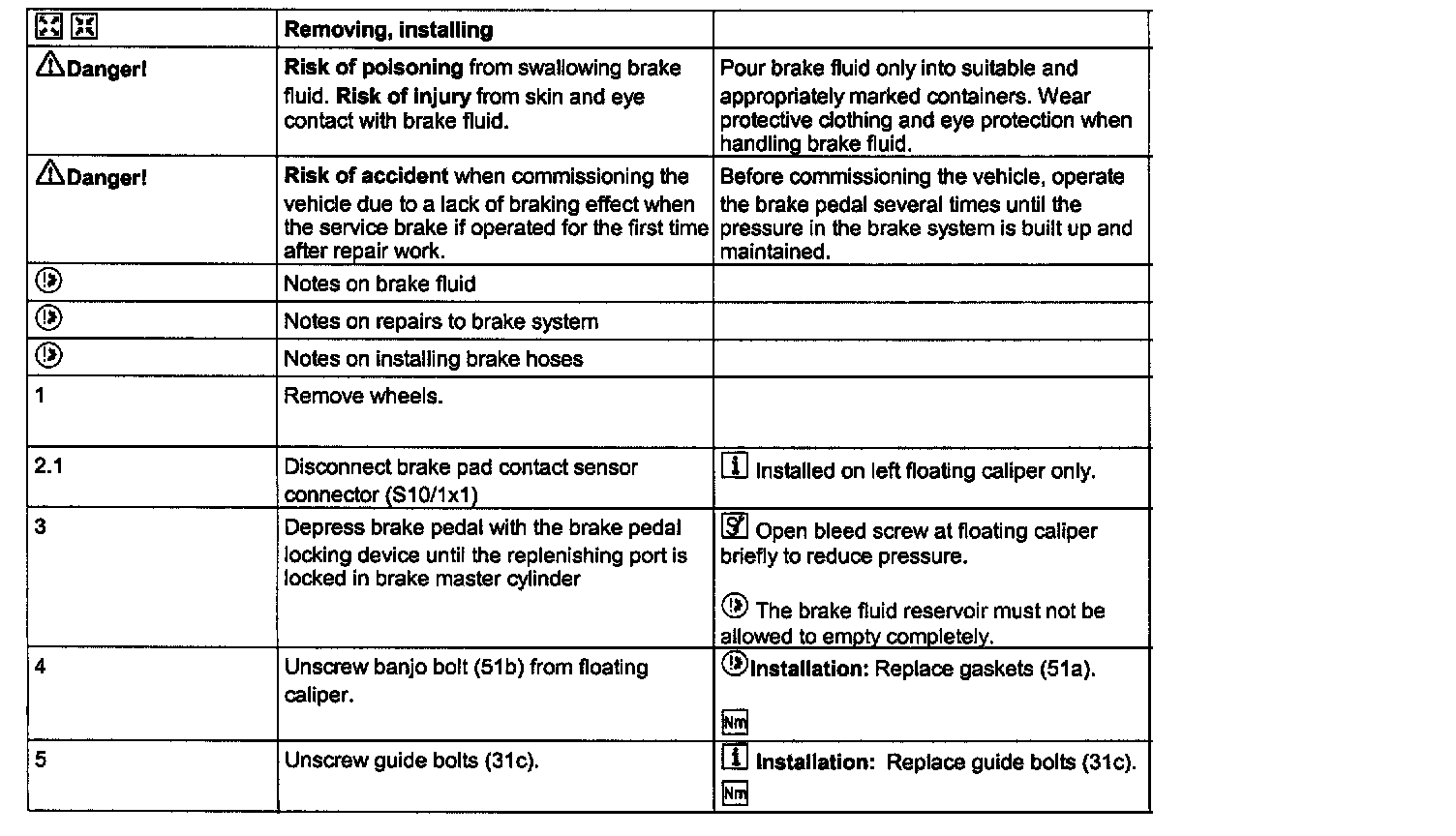

Service Procedures (Steps 1 - 5):

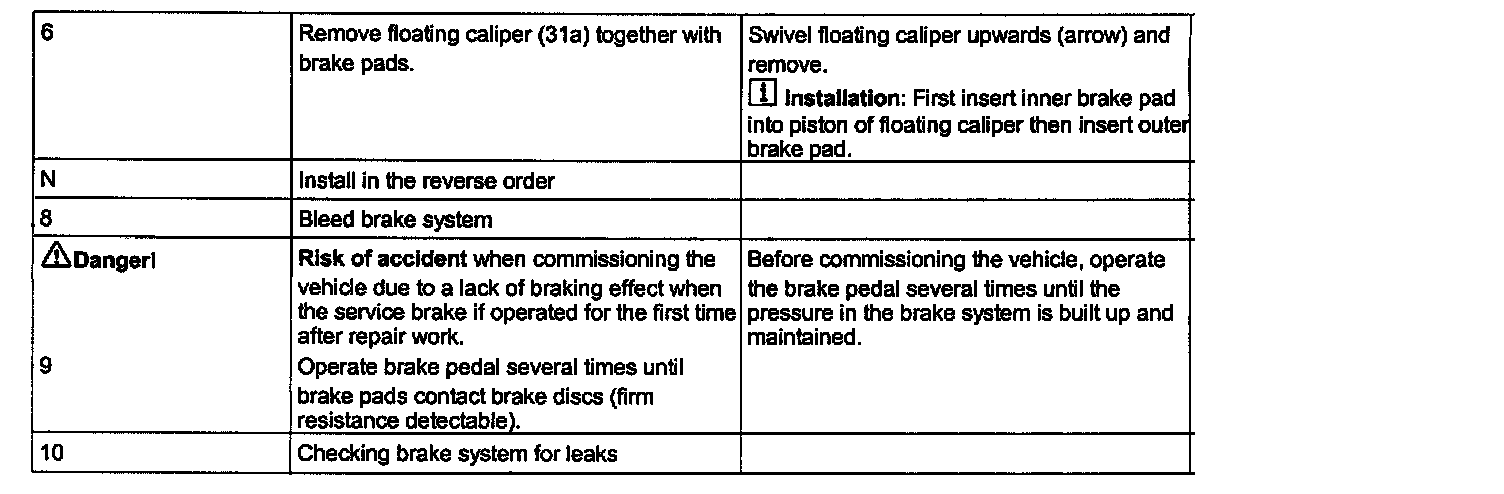

Service Procedures (Steps 6 - 10):

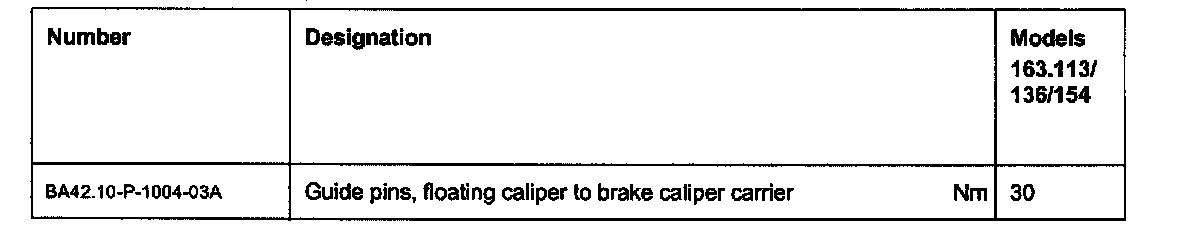

Specifications, Front axle floating caliper:

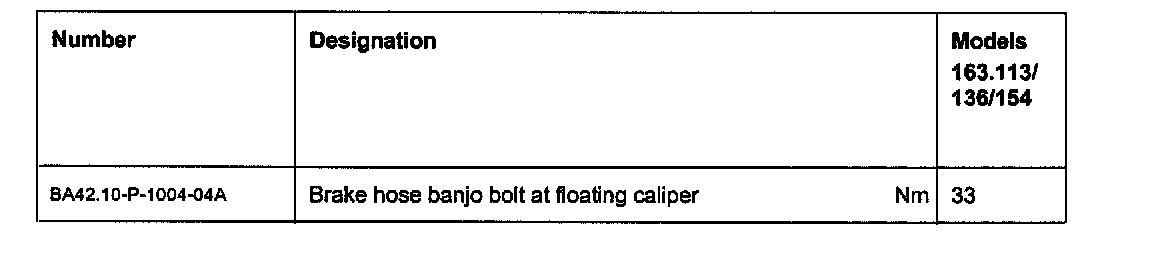

Specifications, Brake lines, brake hoses:

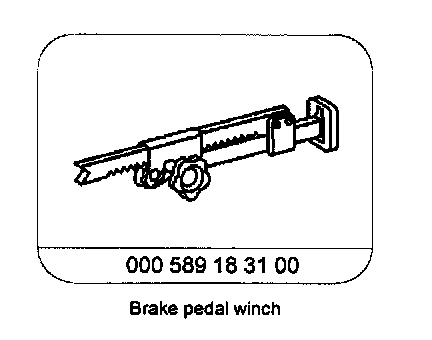

Special Tool:
