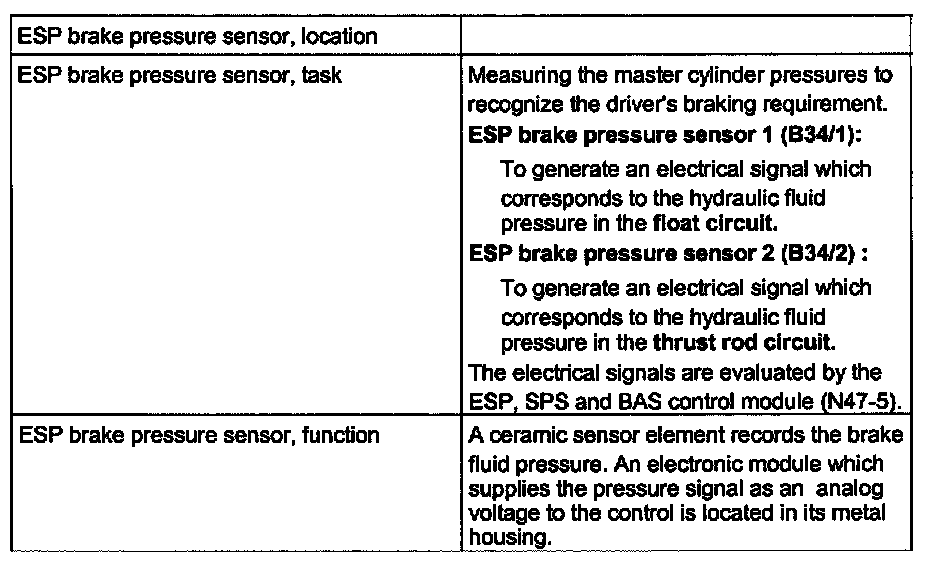

ESP Brake Pressure Sensor

MODEL 163 with CODE (472a) Electronic stability program (ESP)

Part 1 Of 2:

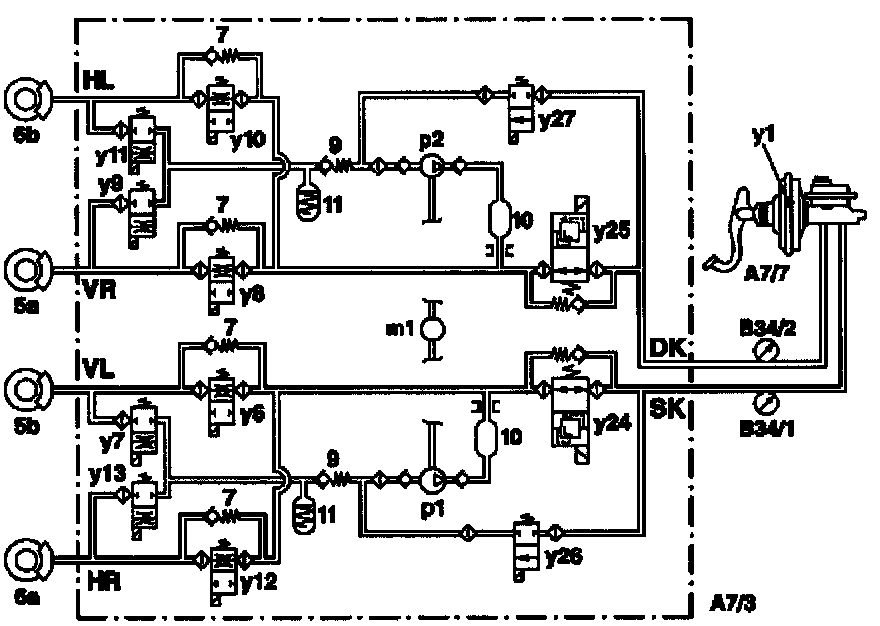

Location of brake pressure sensors in hydraulic system (diagrammatic)
A7/3 Traction systems hydraulic unit
A7/7 BAS brake booster
B34/1 ESP brake pressure sensor 1
B34/2 ESP brake pressure sensor 2

Part 2 Of 2:
