Removal and Replacement



AR31.10-P-8000GH Remove/Install Trailer Hitch
- retrofitted trailer hitch

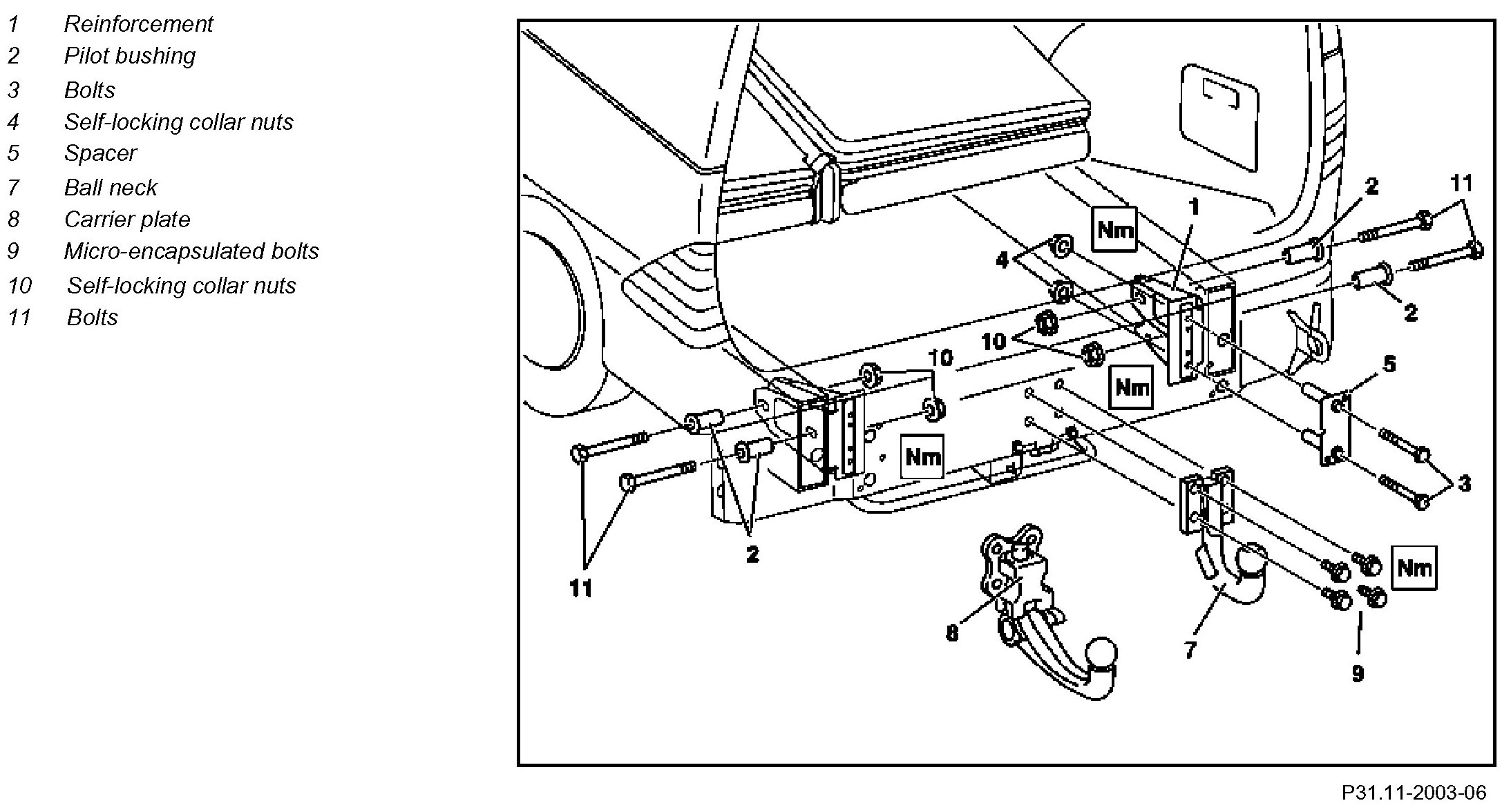

Component Identification:

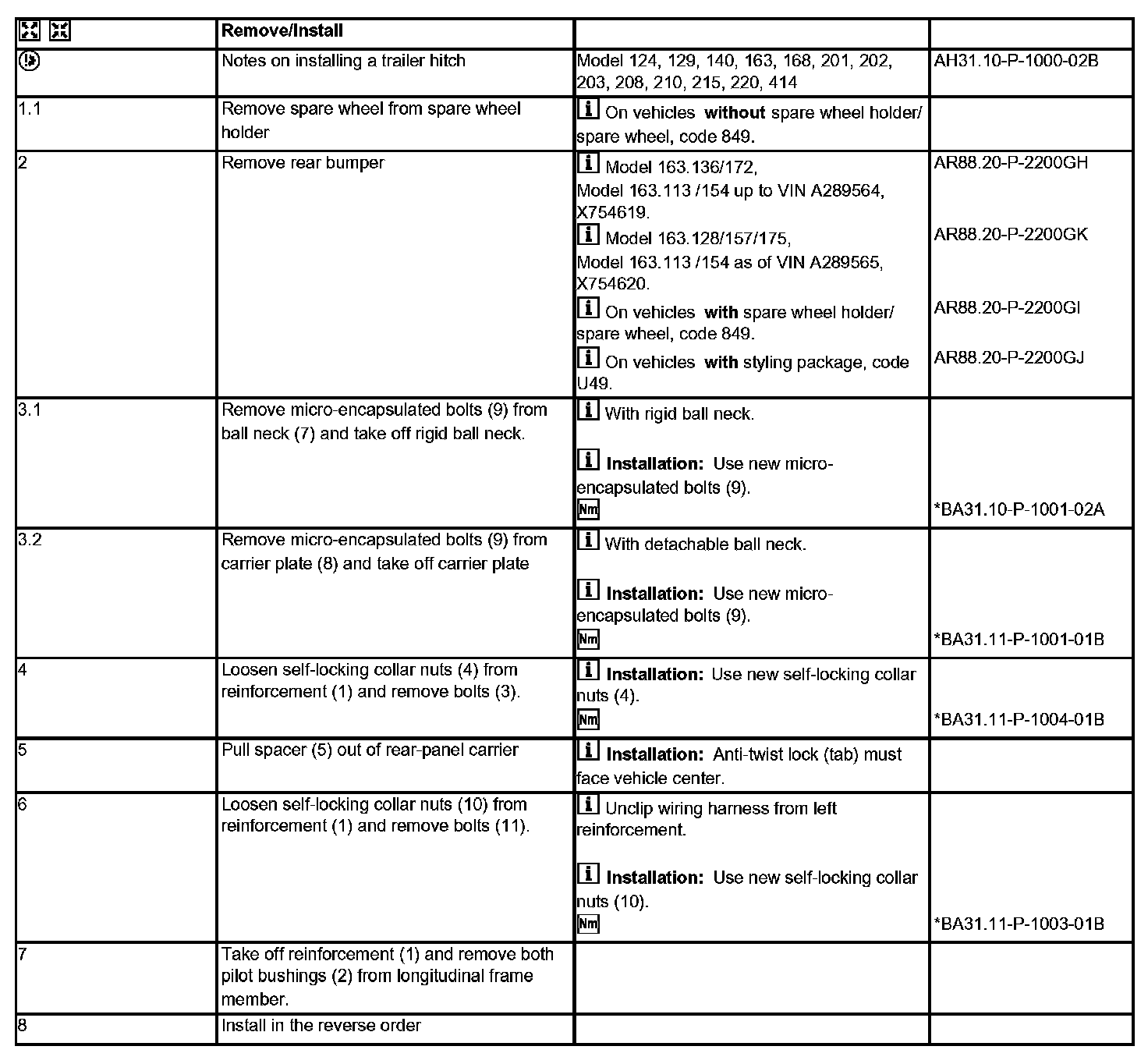

Steps 1 - 8:

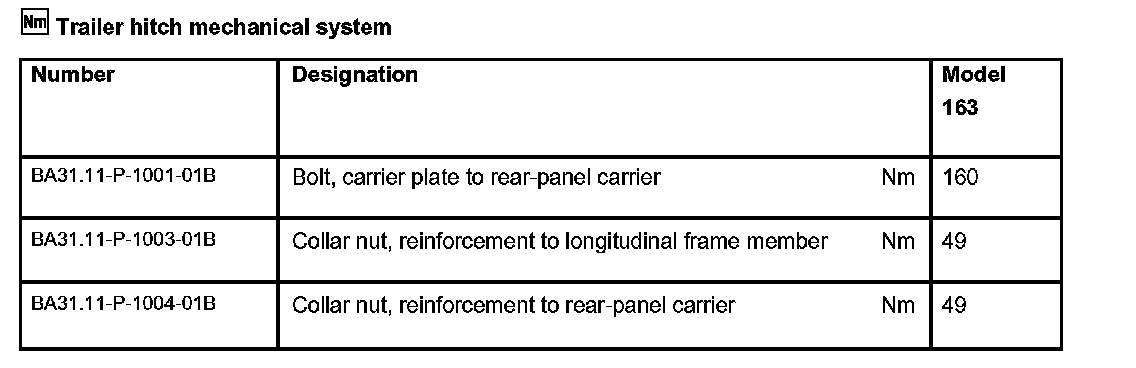

Trailer Hitch Mechanical System:

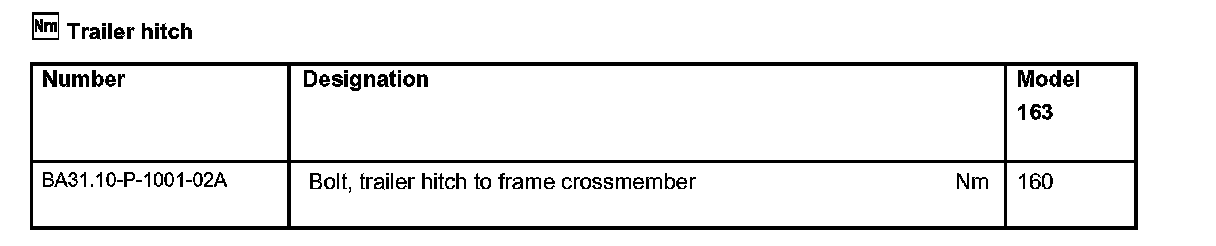

Trailer Hitch:
