Skid Plate: Service and Repair

AN88.30-P-0003A Retrofit Underride Protection
- except CODE (U49) Styling package
- except CODE (220a) Parktronic System (PTS)

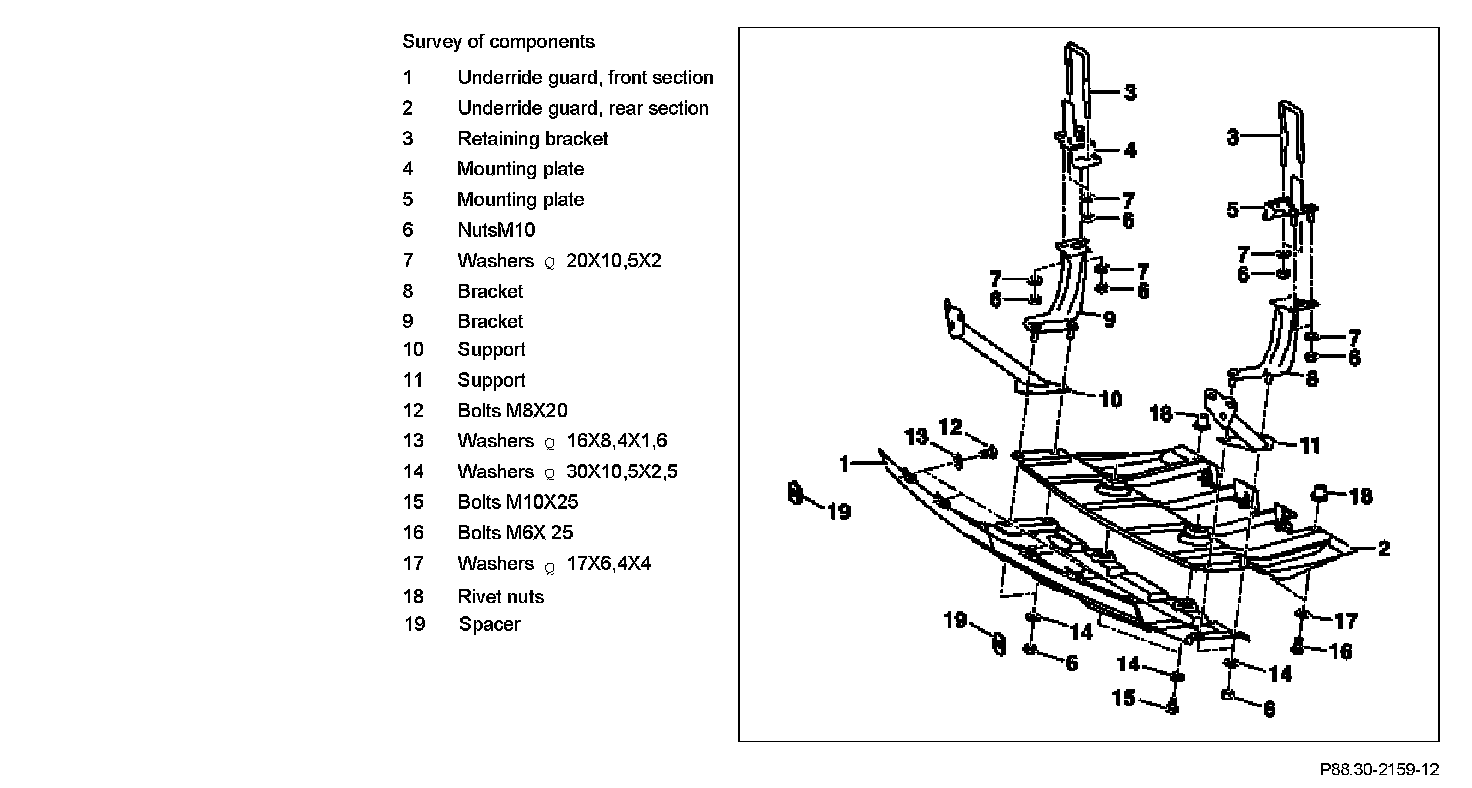

Component Identification:

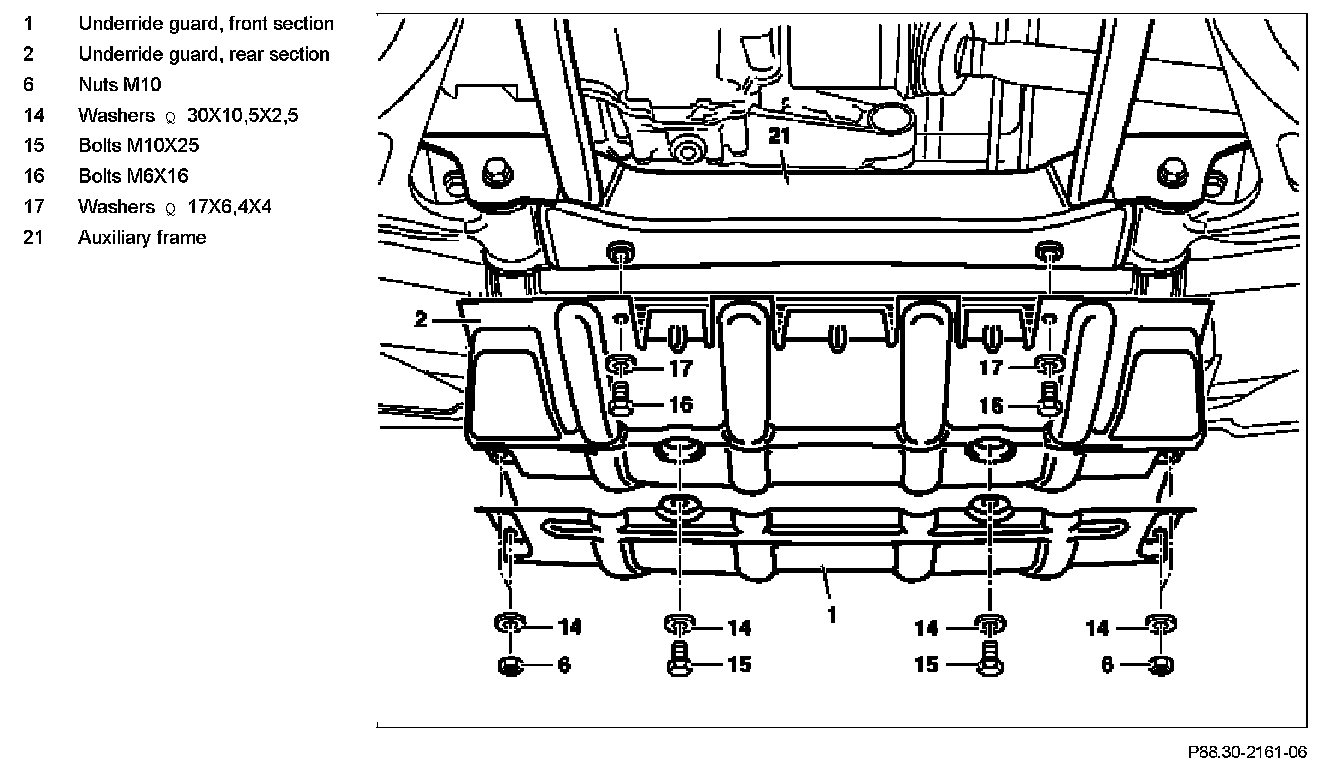

Component Identification:

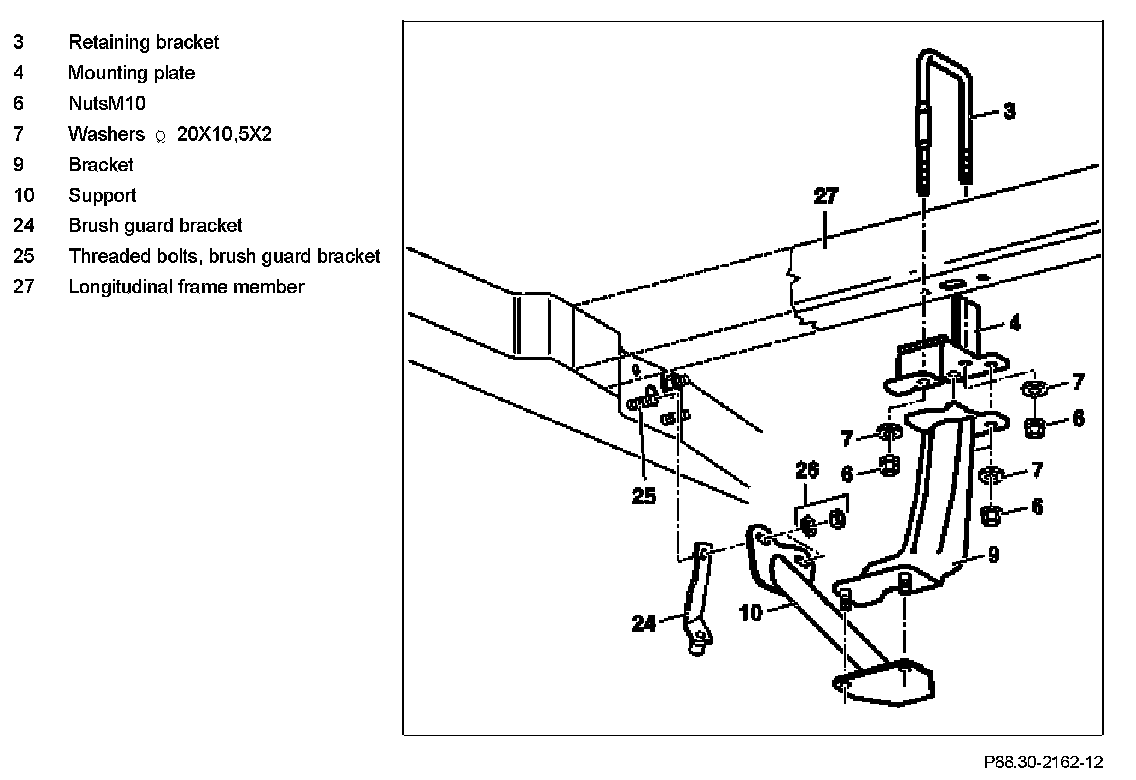

Component Identification:

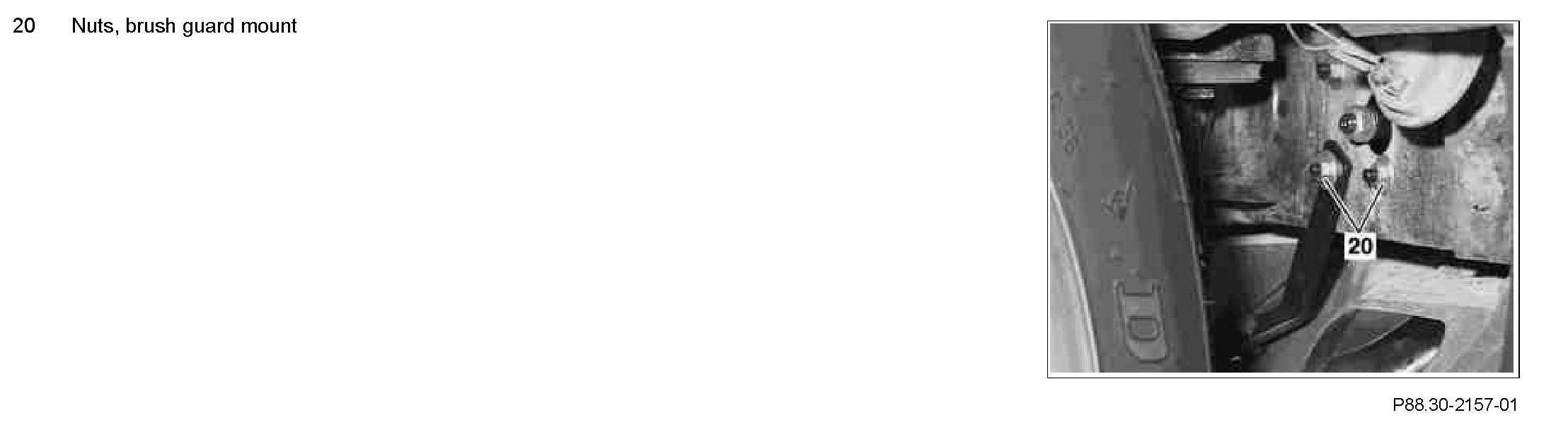

Component Identification:

Component Identification:

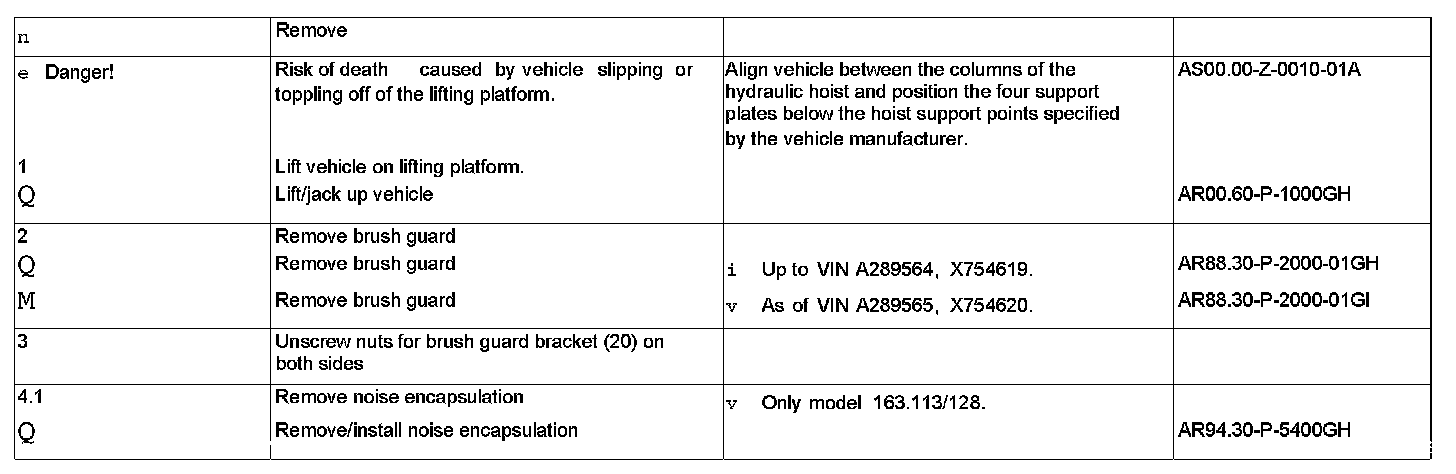

Steps 1 - 4.1:

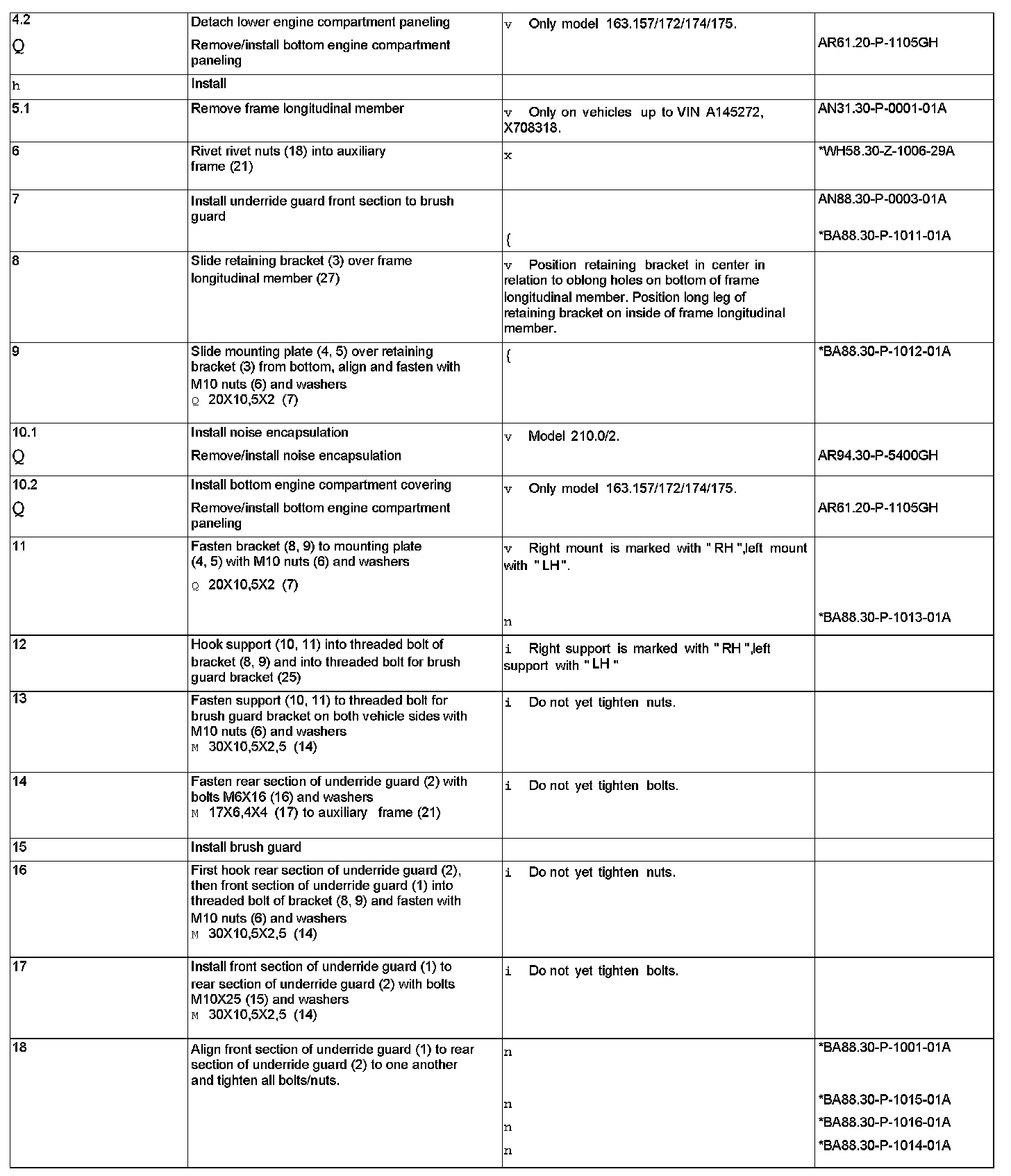

Steps 4.2 - 18:

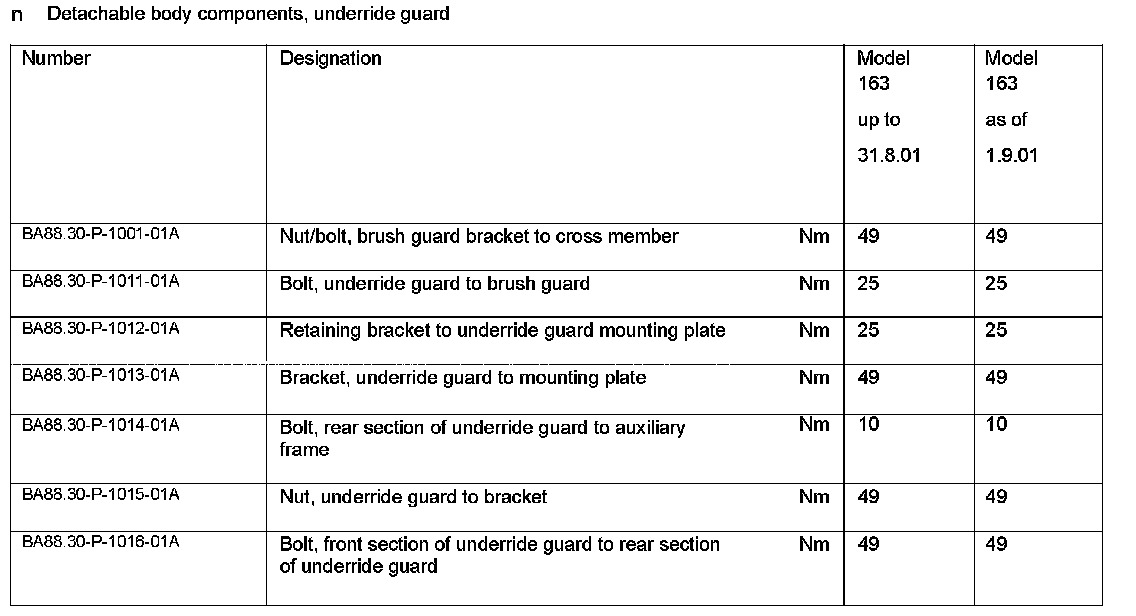

Detachable Body Components, Underride Guard:

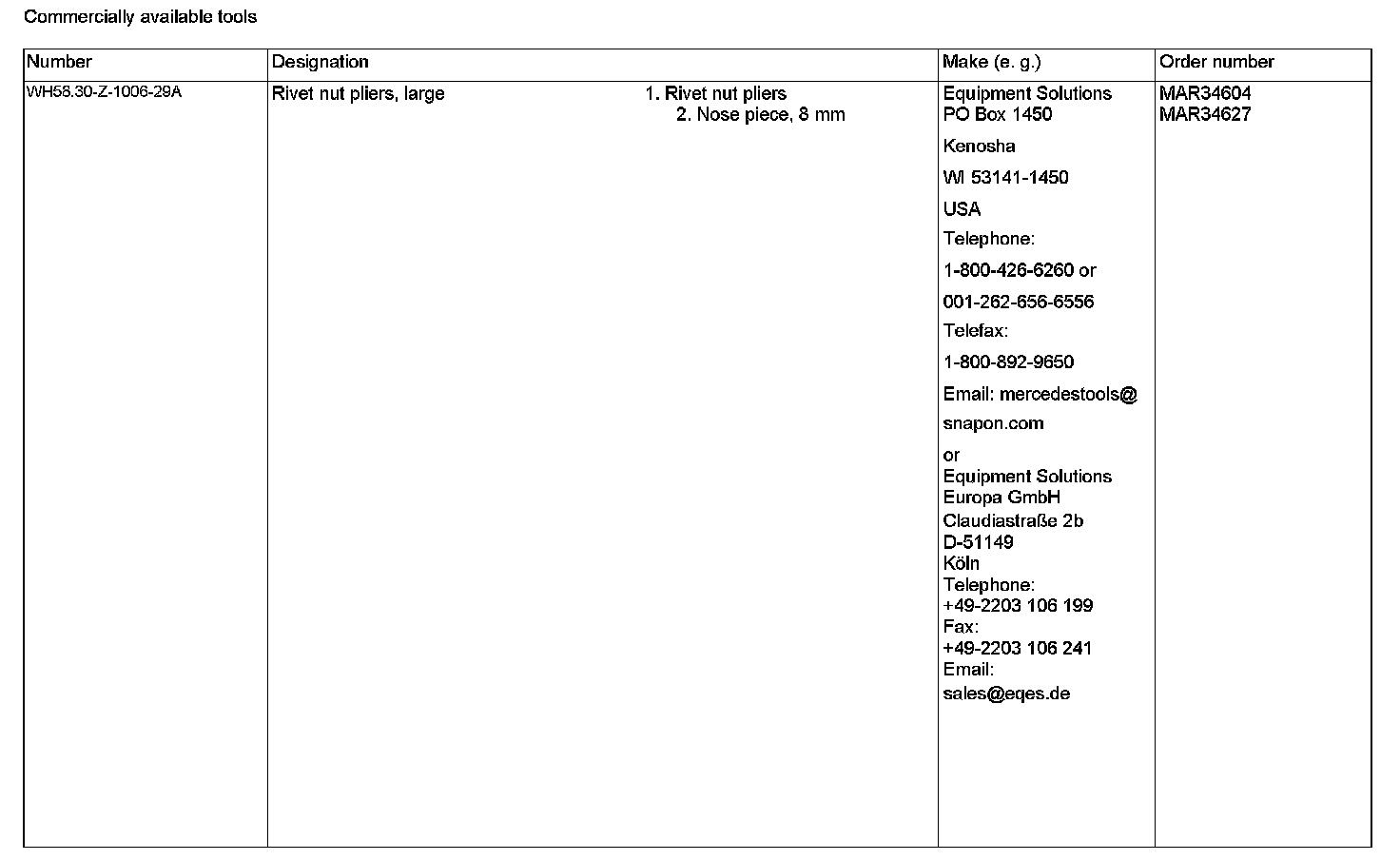

Commercially Available Tools:
