Front Fender Liner: Service and Repair

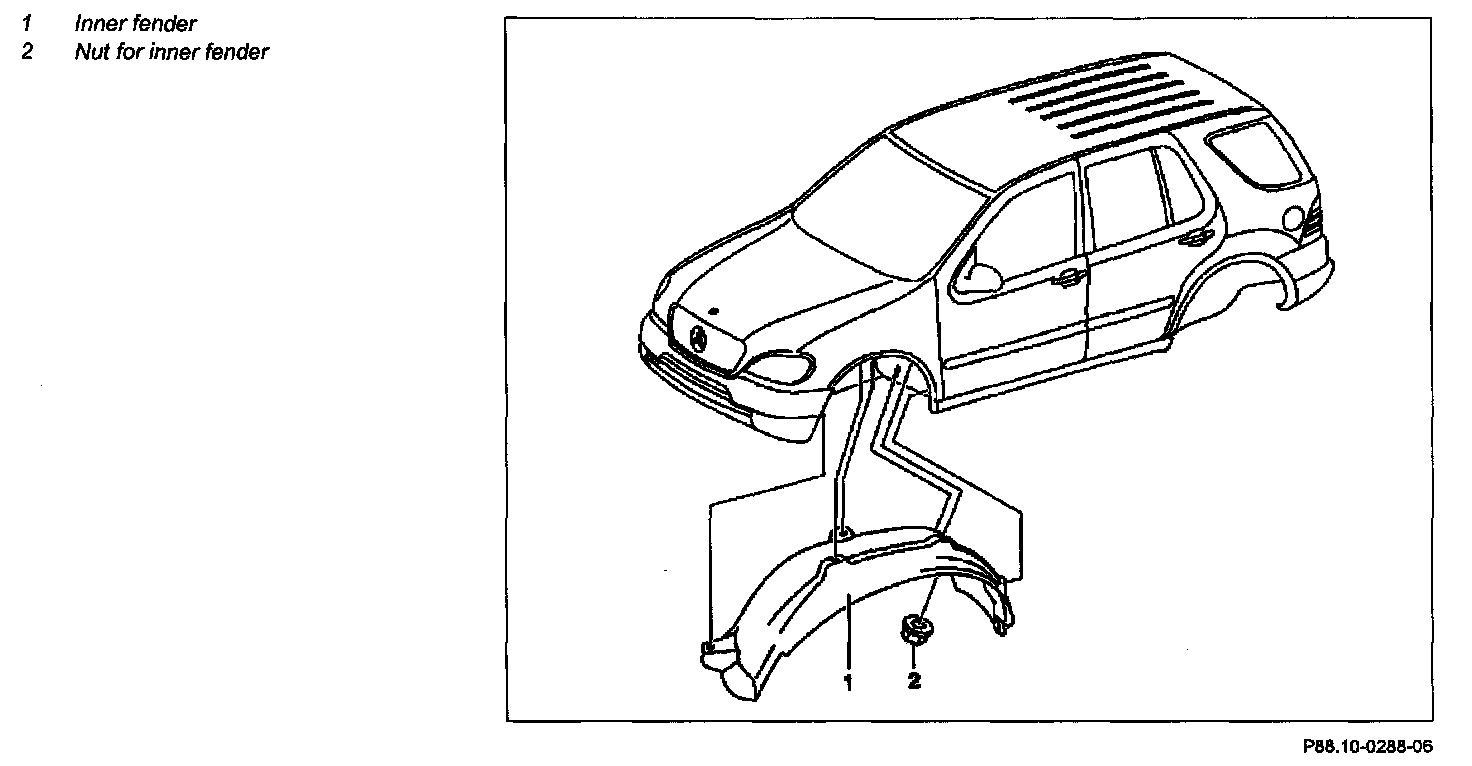

Removing And Installing Inner Fender In Front Fender






1 Unscrew nut for inner fender (2)
2 Remove inner fender (1)

CAUTION: Do not damage fender cutout and paint.

NOTE: Pull front and rear section of inner fender (1) downward, move inner fender away inward and downward, then pull toward outside over wheel.

3 Install in opposite order.
