GF54.50-P-2003GH Date, Function



GF54.50-P-2003GH Date, Function
- with CODE (245) Trip computer

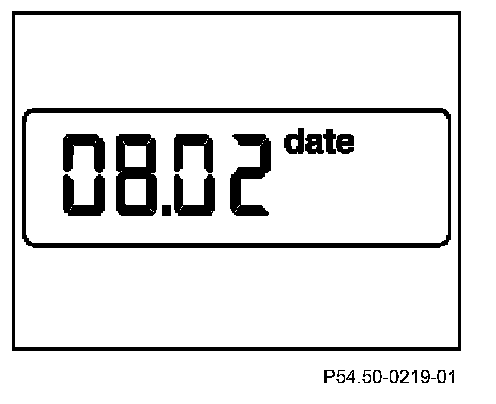

Date

The date is displayed
- in the order "MONTH.DAY" with the miles setting, and
- in the order "DAY.MONTH" with the kilometers setting.

The trip computer control module (TRIP, N41) receives a synchronization pulse via the engine compartment CAN to switch the display to the next day each time the date changes on the electronic clock (A1p6) which is integrated in the instrument cluster (A1). The clock in the instrument cluster must therefore be set to the correct time to ensure that the correct date is displayed.

The correct year must also be set to ensure that leap years are taken into account.
