GF82.85-P-0003GH Cockpit Management and Data System (COMAND) Function

GF82.85-P-0003GH Cockpit Management and Data System (COMAND) Function
- with CODE (352a) COMAND operating and display system
- except CODE (491) U.S. version
- except CODE (498) Japanese version






The following systems can be operated centrally via the COMAND operating, display and control module (A40/3) :
- Radio
- Integrated CD drive for navigation and audio function
- CD changer (optional)
- BOSE sound system (optional)
- Navigation with dynamic guidance
- Telephone (optional)
- TMC TCS and (dynamic guidance, Germany)












COMAND system

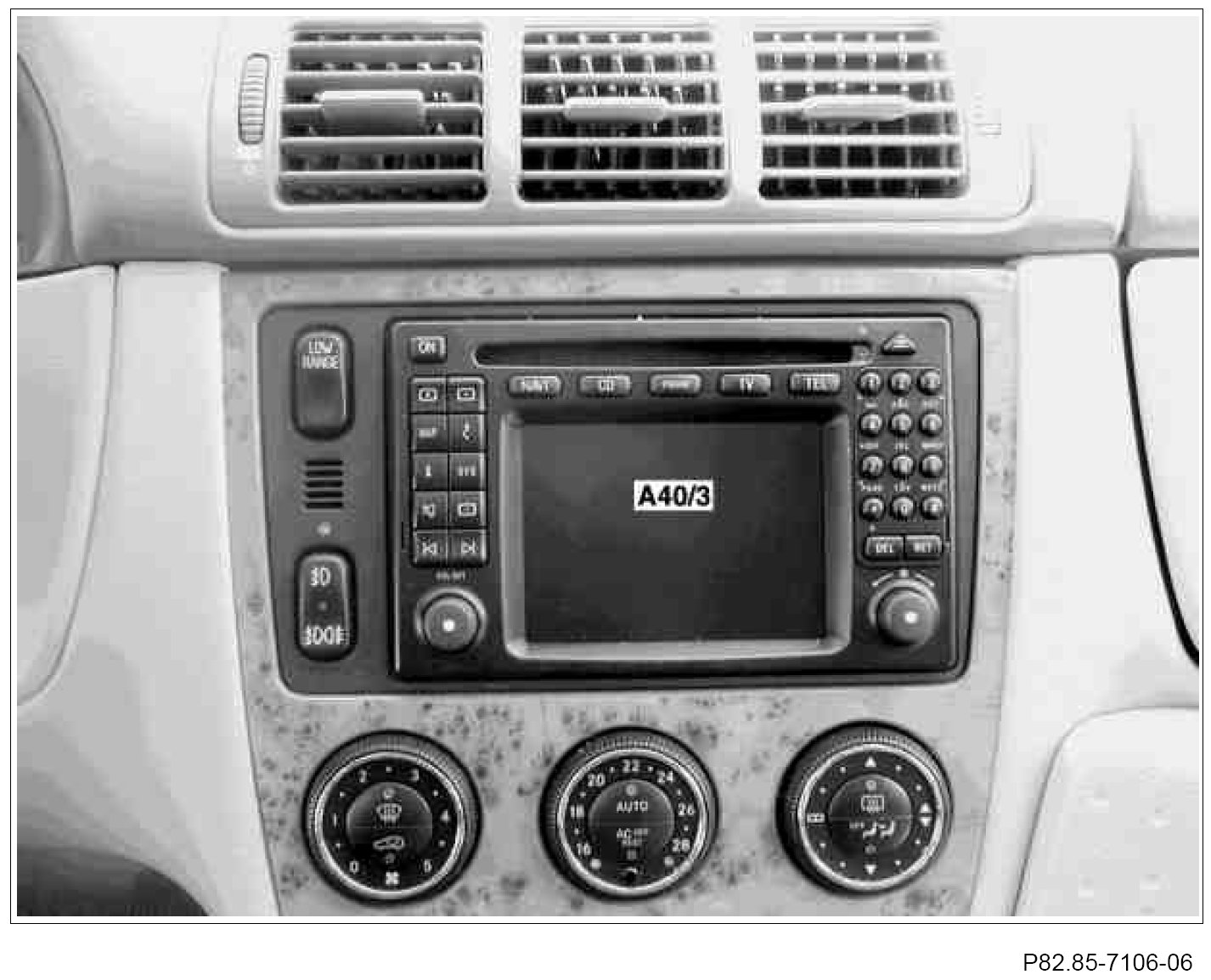

The COMAND operating, display and control module (A40/3) is the central component of the COMAND system. It contains a video capable 5" LCD color display for indicating information such as control menus, map data for navigation.It is operated by means of fixed function keys and two rotary controls as well as with menu guidance on the display.

In addition the vehicle may be equipped with an optional infrared remote control for operation from the rear increasing the operational comfort

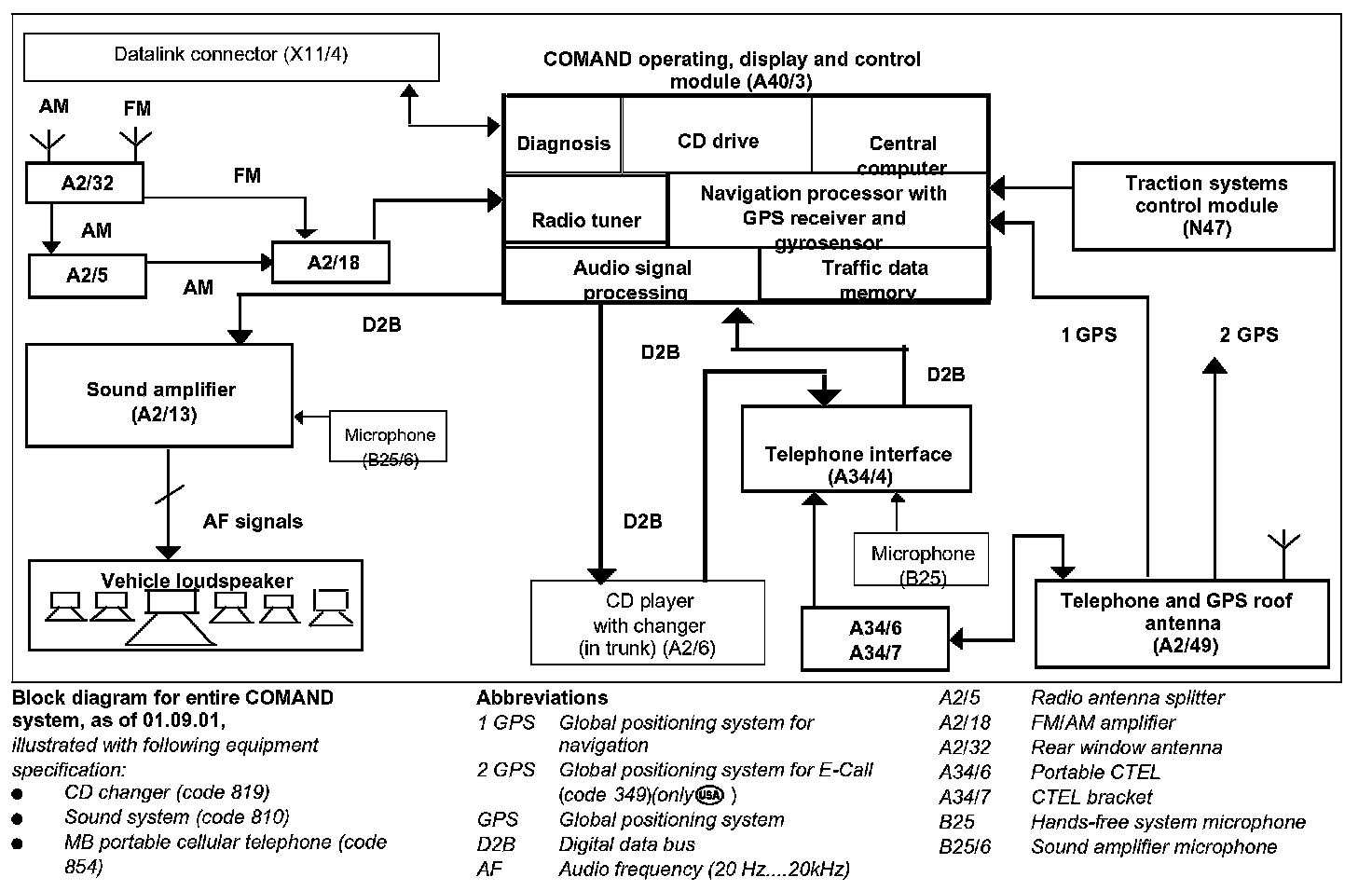

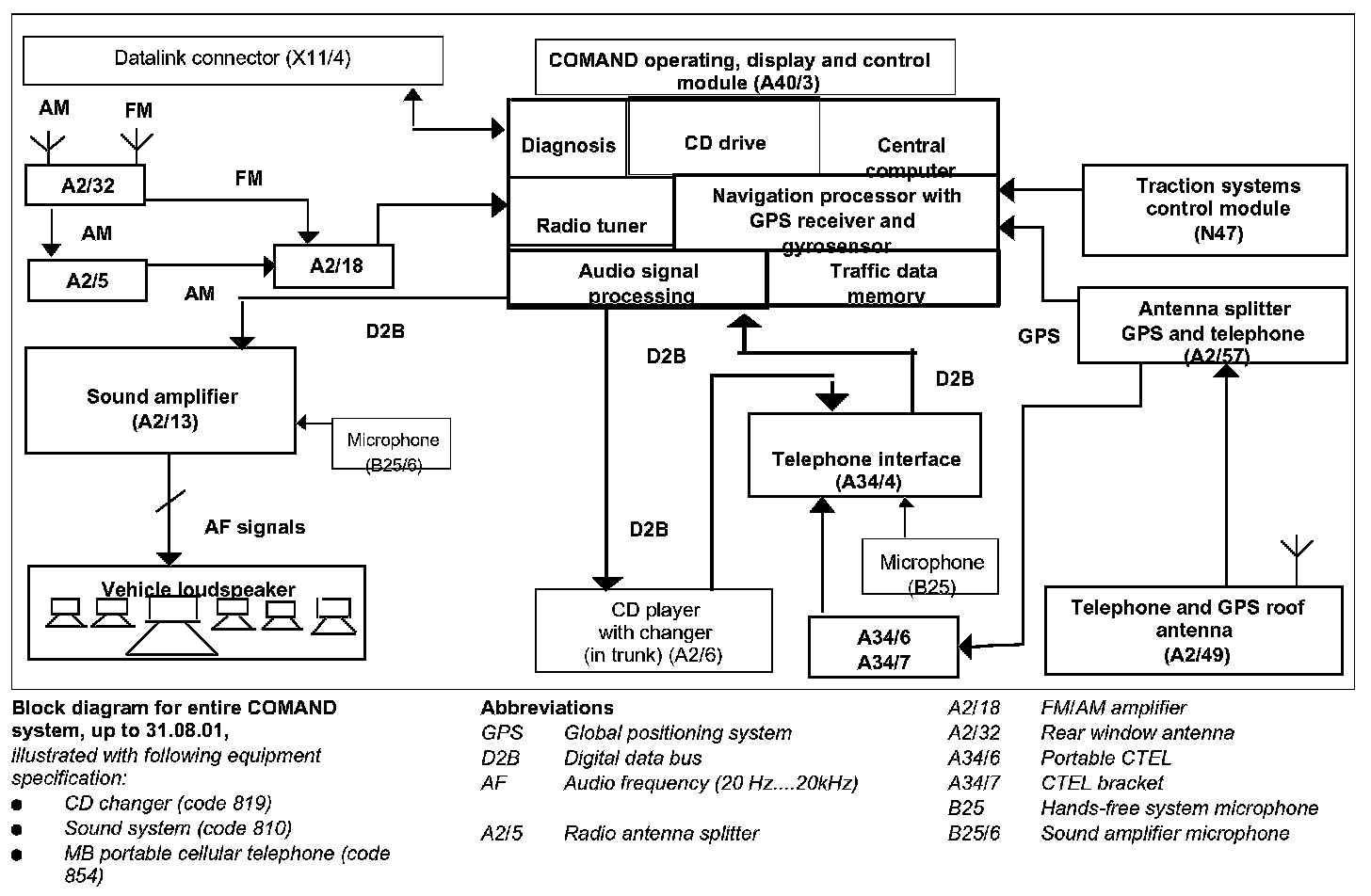

COMAND Bus system
The digital components of the COMAND operating, display and control module (A40/3) are interlinked with one another via the digital data bus D2B)

Data (control commands and other information) is transmitted between the various system components via the digital data bus. Since some of the individual components operate with various data formats or place different requirements on the transmission speed and transmission security, various bus systems are installed:
- D2B Digital data bus
- Data is transferred between the CD player with changer (in trunk) (A2/6) and the telephone system via the digital data bus ( D2B).

Both control data as well as the actual audio signals (music from the CD changer, voice when phoning) are transmitted.
