Starter Motor: Service and Repair

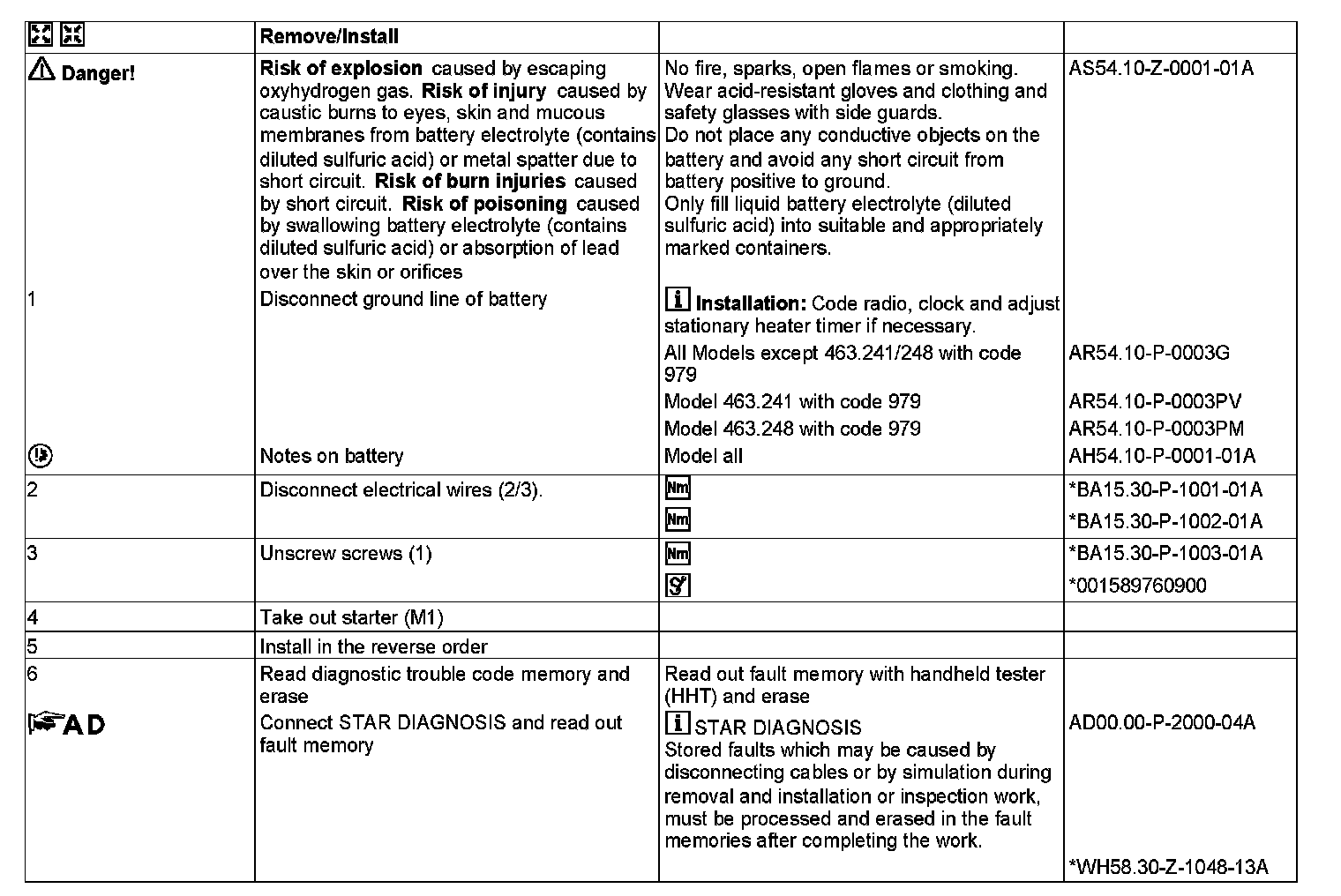

AR15.30-P-7100GV Remove Starter, Install
ENGINE 113.962 in MODEL 463.206 /240 /241 /247 /248 /249 /254
ENGINE 113.982 in MODEL 463.243 /246





1 Screws
2 Electrical line circuit 30
3 Electrical line circuit 50
4,5 Nut
M1 starter











001 589 76 09 00
External Torx set
