Voice Activation Module: Service and Repair

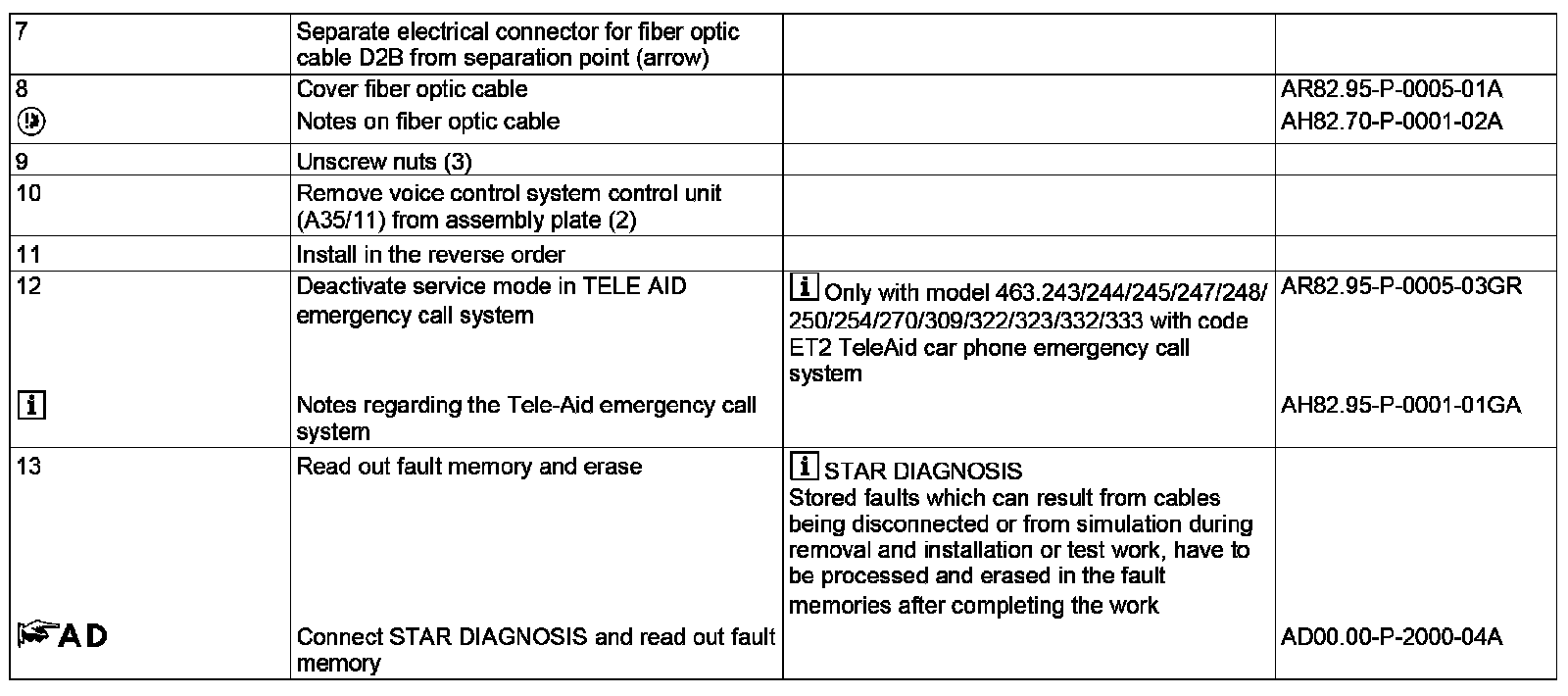

AR82.70-P-0003GM Remove/install Voice Control System Control Unit
- MODEL 463.243 /244 /245 /246 /247 /248 /249 /250 /254 /270 /271 /303 /309 /322 /323 /332 /333 /340 /341
- with CODE (EL1) Voice control for telephone (Linguatronic) - German
- with CODE (EL2) Voice control for telephone (Linguatronic) - English
- with CODE (EL3) Voice control for telephone (Linguatronic) - French
- with CODE (EL4) Voice control for telephone (Linguatronic) - Italian
- with CODE (EL5) Voice control for telephone (Linguatronic) - Spanish
- with CODE (EL6) Voice control for telephone (Linguatronic) - Swiss German






1 Nut
2 Assembly plate
3 Nut
4 Trim
5 Electrical connector
A35/11 Voice control system control unit
Arrow: Separation point
