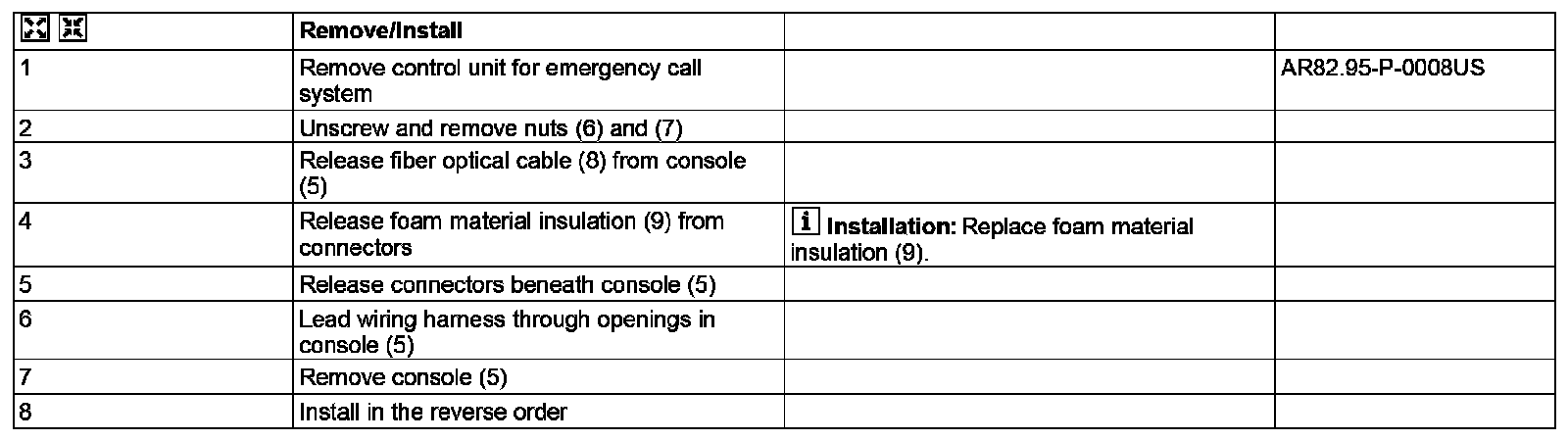

AR82.95-P-0014US Remove/Install Console For E-Call Emergency Call System Control Unit




AR82.95-P-0014US Remove/install Console For E-Call Emergency Call System Control Unit
- MODELS 463.246 /249 /271
- with CODE (ET2) TELE AID carphone emergency call system

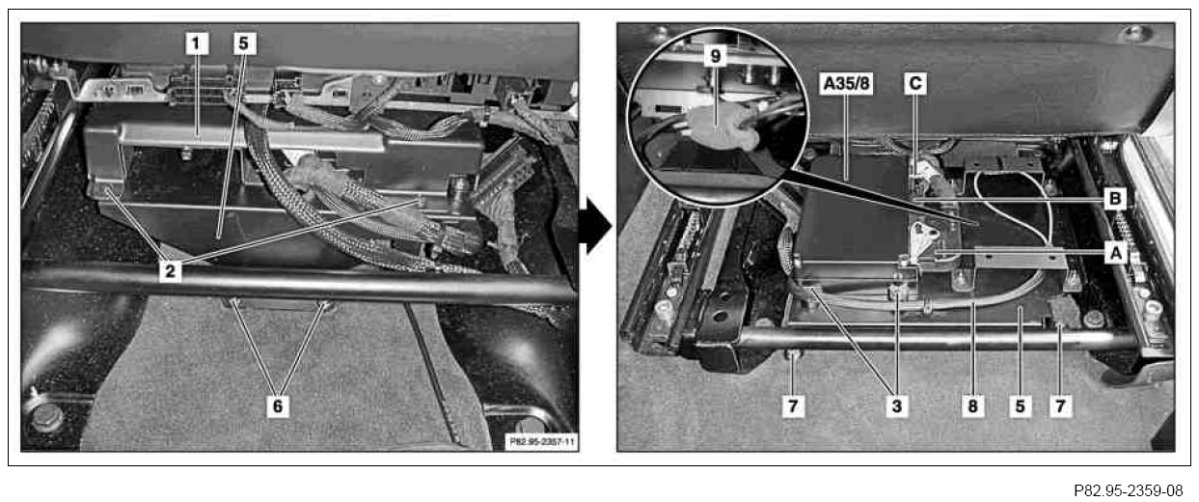

5 Bracket
6 Nut
7 Nut
8 Fiber optic cable
9 Foam insulation
A35/8 E-call control unit
