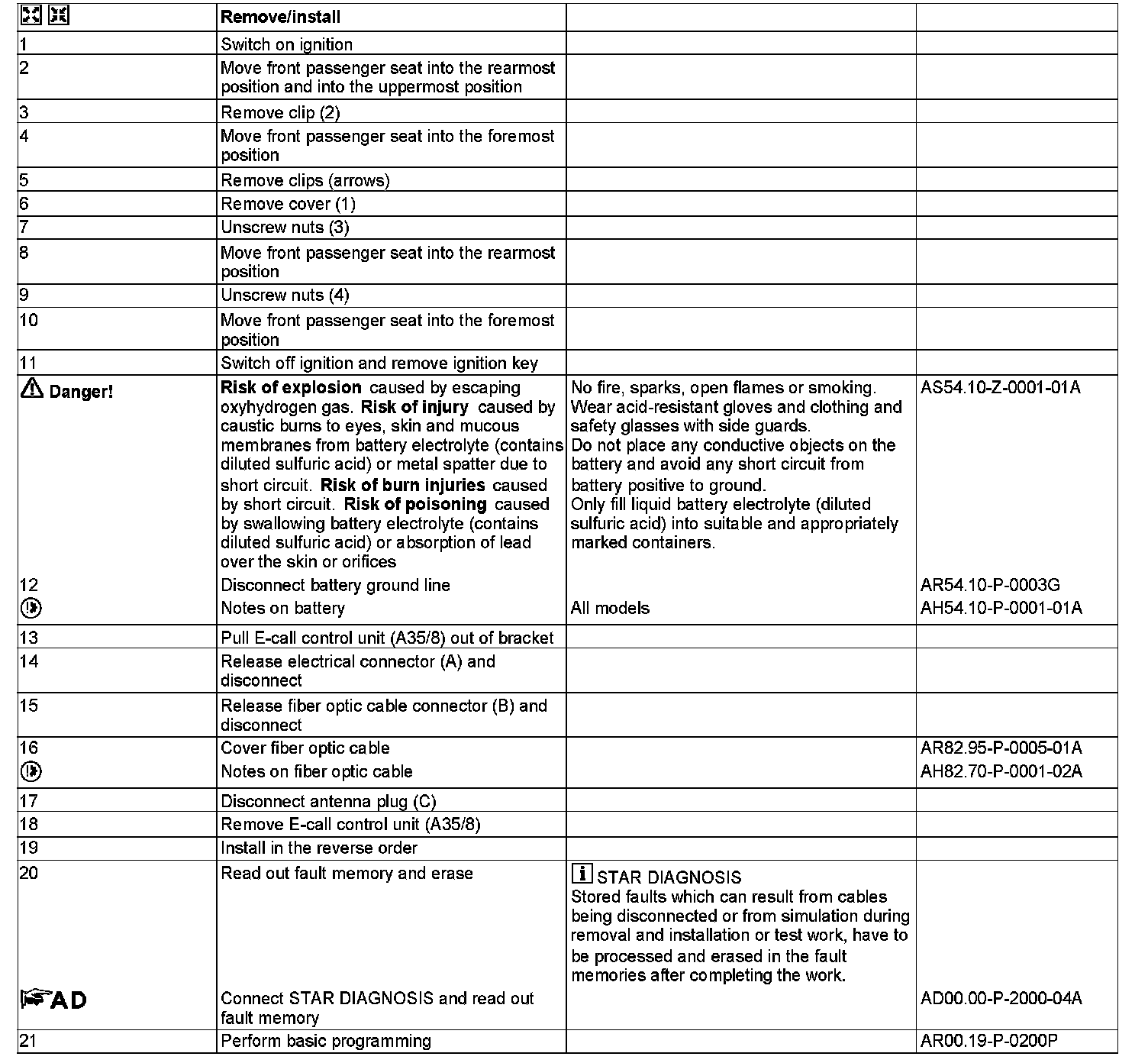

AR82.95-P-0008US Remove/Install E-Call Emergency Call System Control Unit

AR82.95-P-0008US Remove/Install E-Call Emergency Call System Control Unit
MODEL 463.246 /249 /271 up to 1.4.07
- with CODE (ET2) Tele-Aid car phone emergency call system

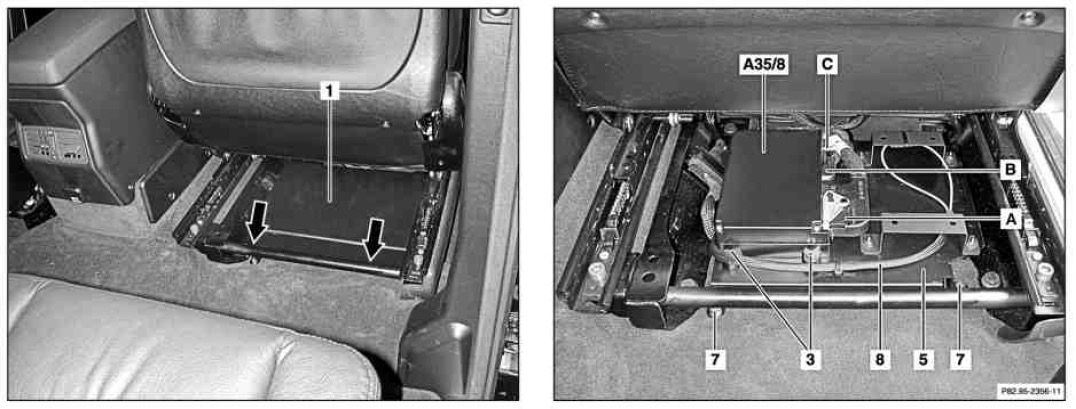

1 Cover
3 Nut
A Electrical connector
B Fiber optic cable connector
C Antenna plug
A35/8 E-call control unit
Arrow: Clip

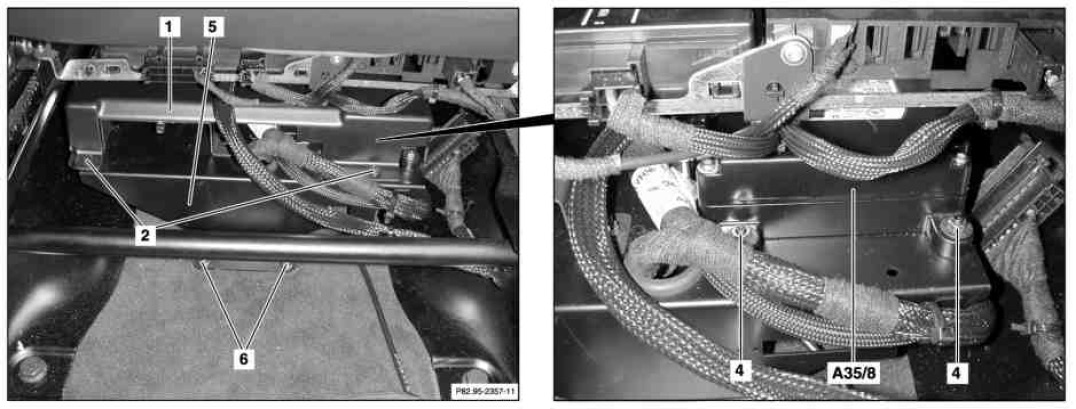

1 Cover
2 Clip
4 Nut
A35/8 E-call control unit
