Receiver Dryer: Service and Repair

AR83.30-P-6520GM Remove/install Fluid Reservoir
- MODEL 461.302 /304 /305 /331 /332 /333 /334 /340 /342 /343 /344 /345 /346
- MODEL 463.202 /222 /236 /237 /243 /244 /245 /246 /247 /248 /249 /250 /254 /270 /271 /303 /306 /309 /322 /323 /332 /333 /336 /340 /341 /346

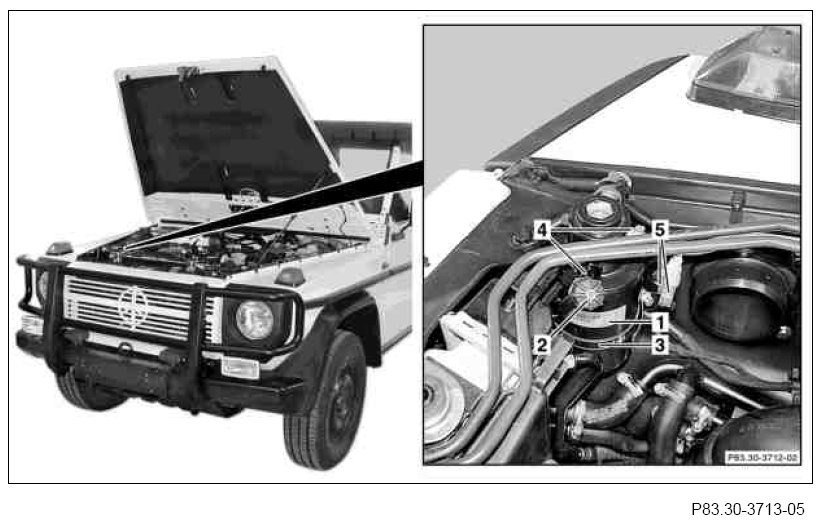

Shown on model 461.302






1 Fluid reservoir
2 Service valve for refrigerant line
3 Securing clamp
4 Refrigerant line
5 Electrical connector

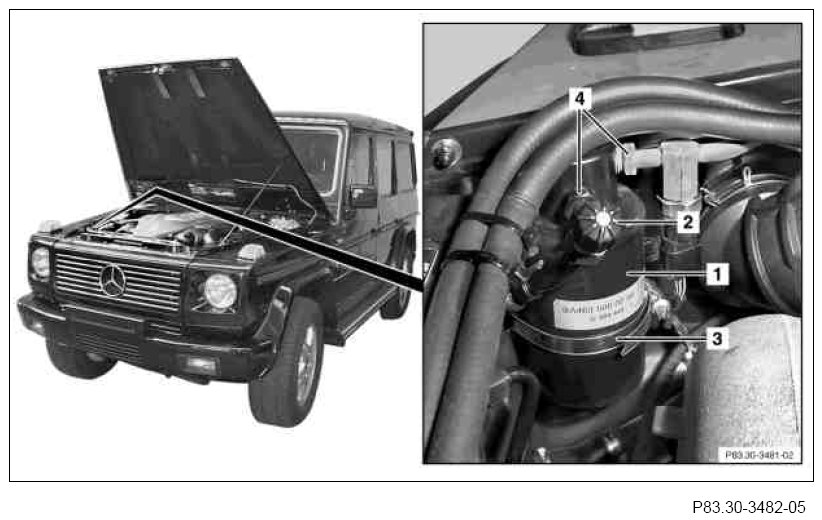

Illustrated on model 463.333






1 Fluid reservoir
2 Service valve for refrigerant line
3 Securing clamp
4 Refrigerant line
