AR42.30-P-0714AA Remove/Install Rear Axle Speed Sensor

AR42.30-P-0714AA Remove/Install Rear Axle Speed Sensor
MODEL 463.202 /222 /237 /243 /244 /245 /246 /247 /249 /250 /254 /303 /309 /322 /323 /332 /333 /340 /341 with disk brake
MODEL 463.236 /248
- except CODE (979) Special protection version with drum brake

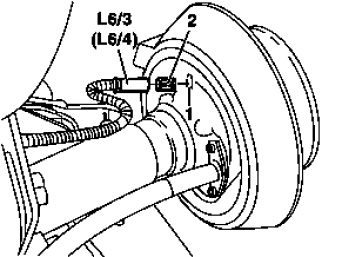

1 Sleeve in brake carrier
2 Bronze sleeve

L6/3 Left rear rpm sensor
L6/4 right rear rpm sensor





4 Wiring loom

X92/3 Frame connector (22-pin)

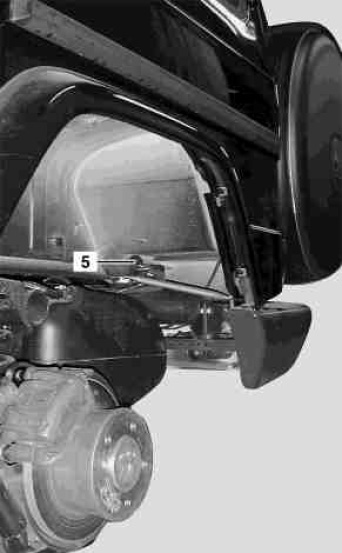

5 Floor opening
