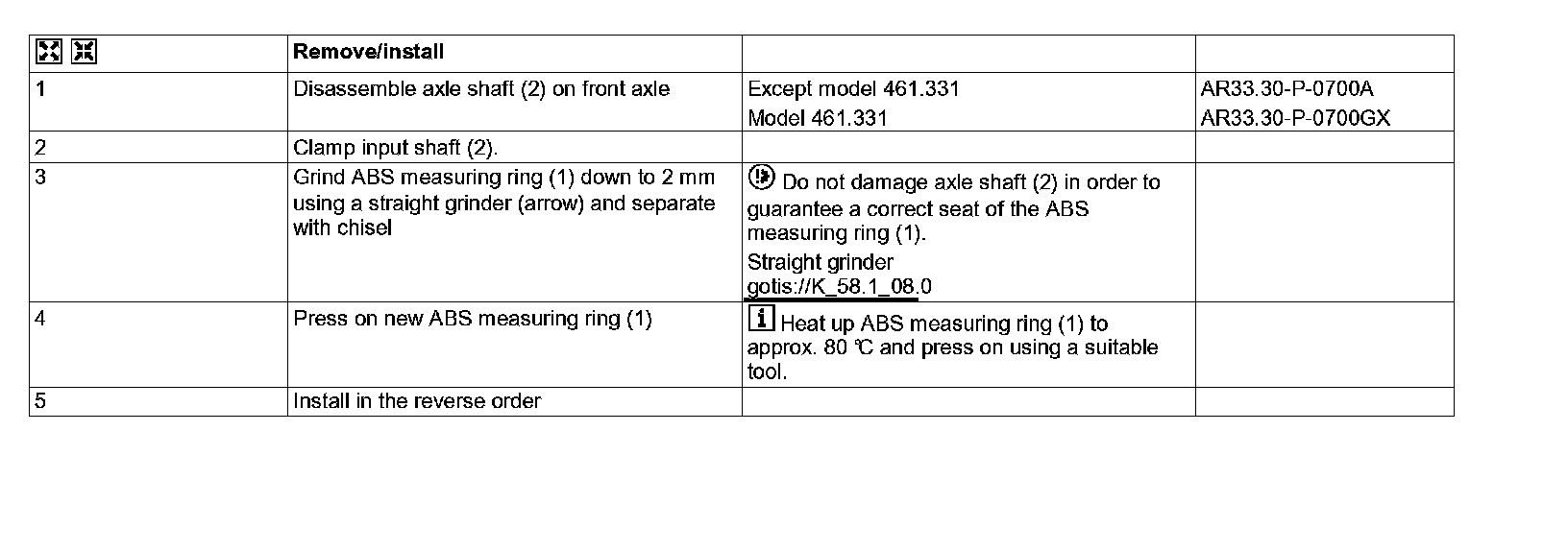

AR42.30-P-0160GH Remove/Install ABS Measuring Ring
AR42.30-P-0160GH Remove/Install ABS Measuring Ring
AR42.30-P-0160GH Remove/Install ABS Measuring Ring
-MODEL 461, 463 (except, 463.270 /271)
-
front axle with ABS brake system

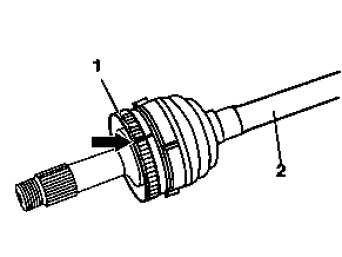

1
Measuring ring for antilock brake system (ABS)
2
Input shaft
