Steering Angle Sensor: Service and Repair

AR46.10-P-0300GS Remove/Install Steering Angle Sensor
- MODEL 463.243 up to 31.5.04, 463.244 /245 as of 30.9.01 up to 31.5.04, 463.246 up to 31.5.04, 463.247 /248 as of 30.9.01 up to 31.5.04, 463.249 up to 31.5.04, 463.250 /254 /309 as of 30.9.01 up to 31.5.04, 463.322 /323 up to 31.5.04, 463.332 /333 as of 30.9.01 up to 31.5.04

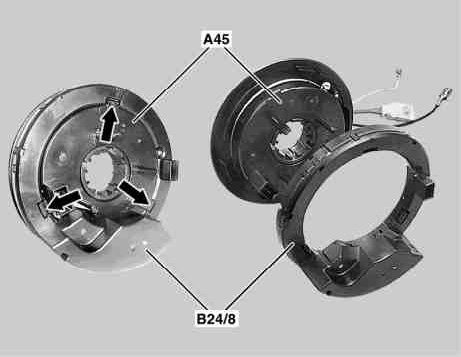

Shown on model 463 up to 30.06.02

A45 Fanfare horns and airbag clock spring contact
B24/8 Steering angle sensor

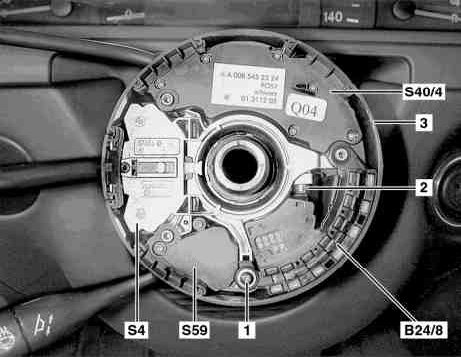

Shown on model 463 as of 1.07.02

1 Bolt
3 Steering column switch module
B24/8 Steering angle sensor
