Trunk / Liftgate Lock: Service and Repair

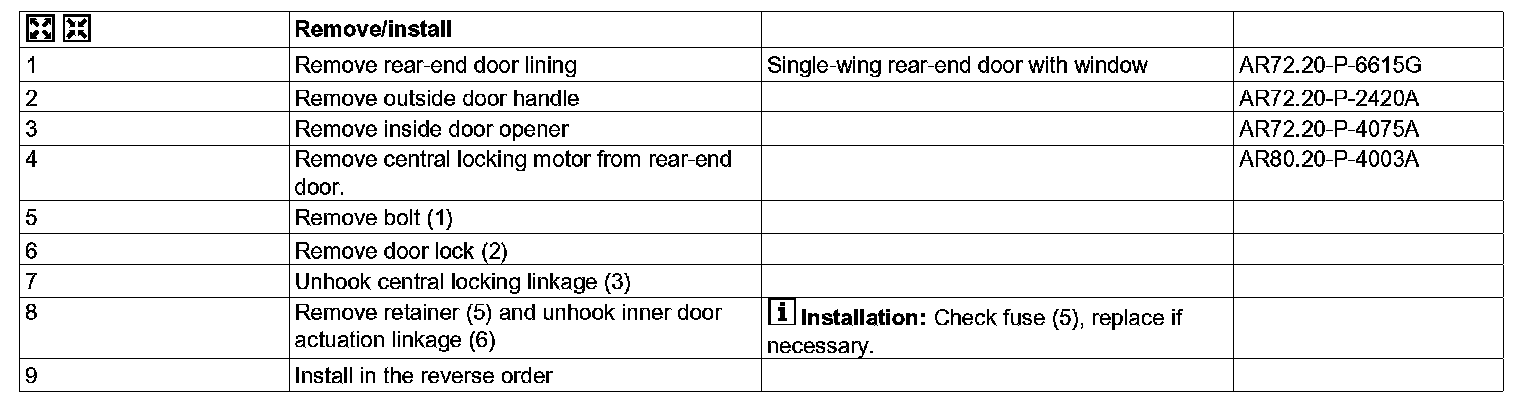

AR72.20-P-4055A Remove/Install Rear-end Door Lock



Shown on single-wing rear-end door

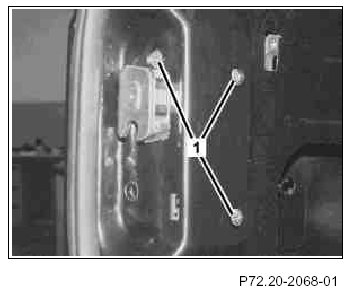

1 Screw

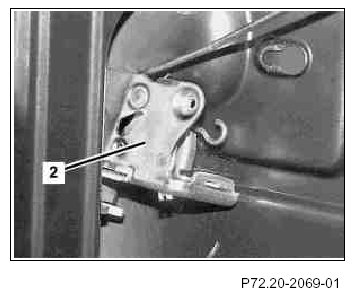

2 Door lock







2 Door lock

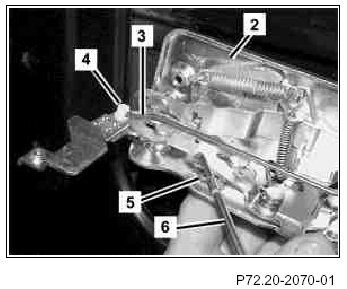

3 Central locking linkage
4 Clamp
5 Fuse
6 Inside door opener linkage
