Home
>>
Mercedes Benz Truck
>>
2001
>>
ML 430 (163.172) V8-4.3L (113.942)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Compressor HVAC
>>
Description and Operation
>>

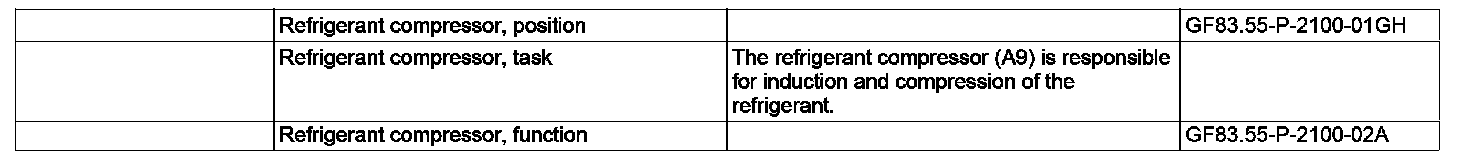

GF83.55-P-2100GH Refrigerant Compressor, Location/Task/Design/Function
GF83.55-P-2100GH Refrigerant Compressor, Location/Task/Design/Function
GF83.55-P-2100GH Refrigerant Compressor, Location/Task/Design/Function
-

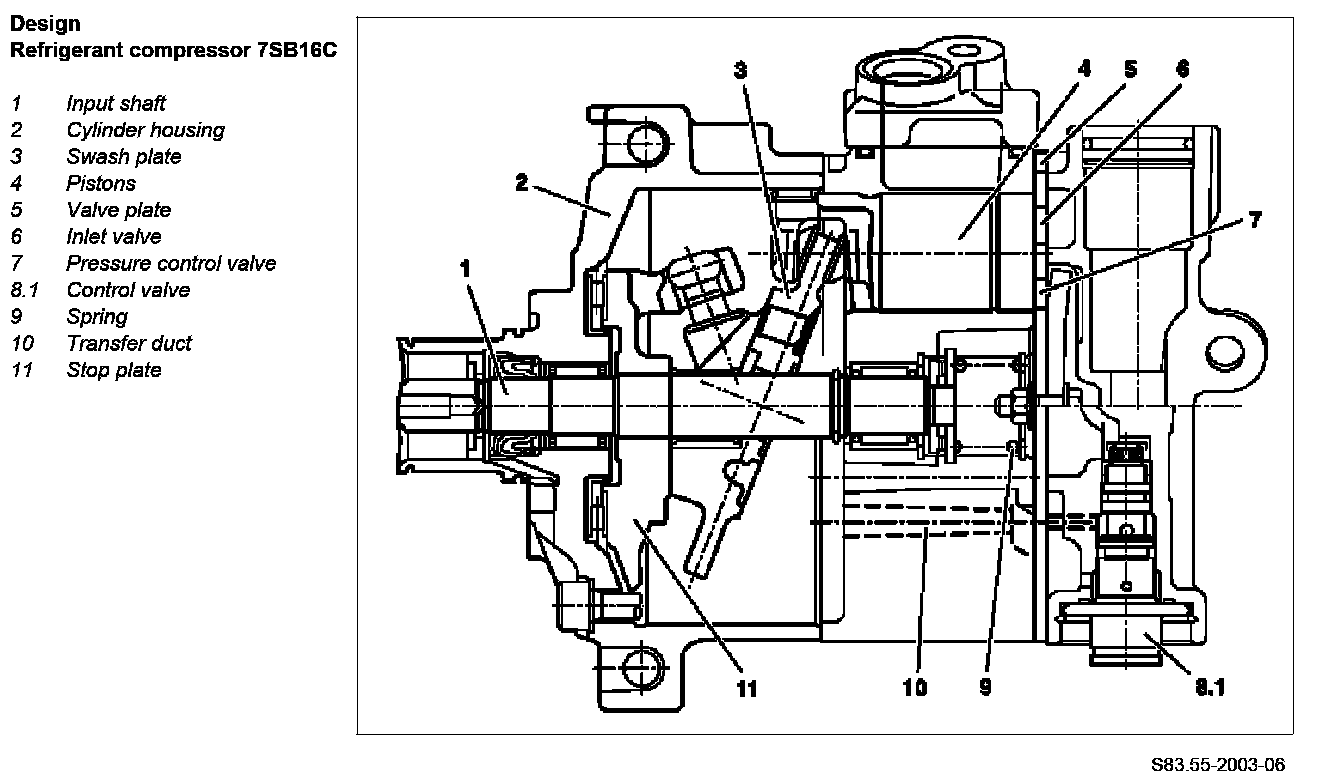

with CODE (580) Air conditioning or Tempmatic for USA refrigerant compressor 7SB16C
