Blower Motor: Service and Repair

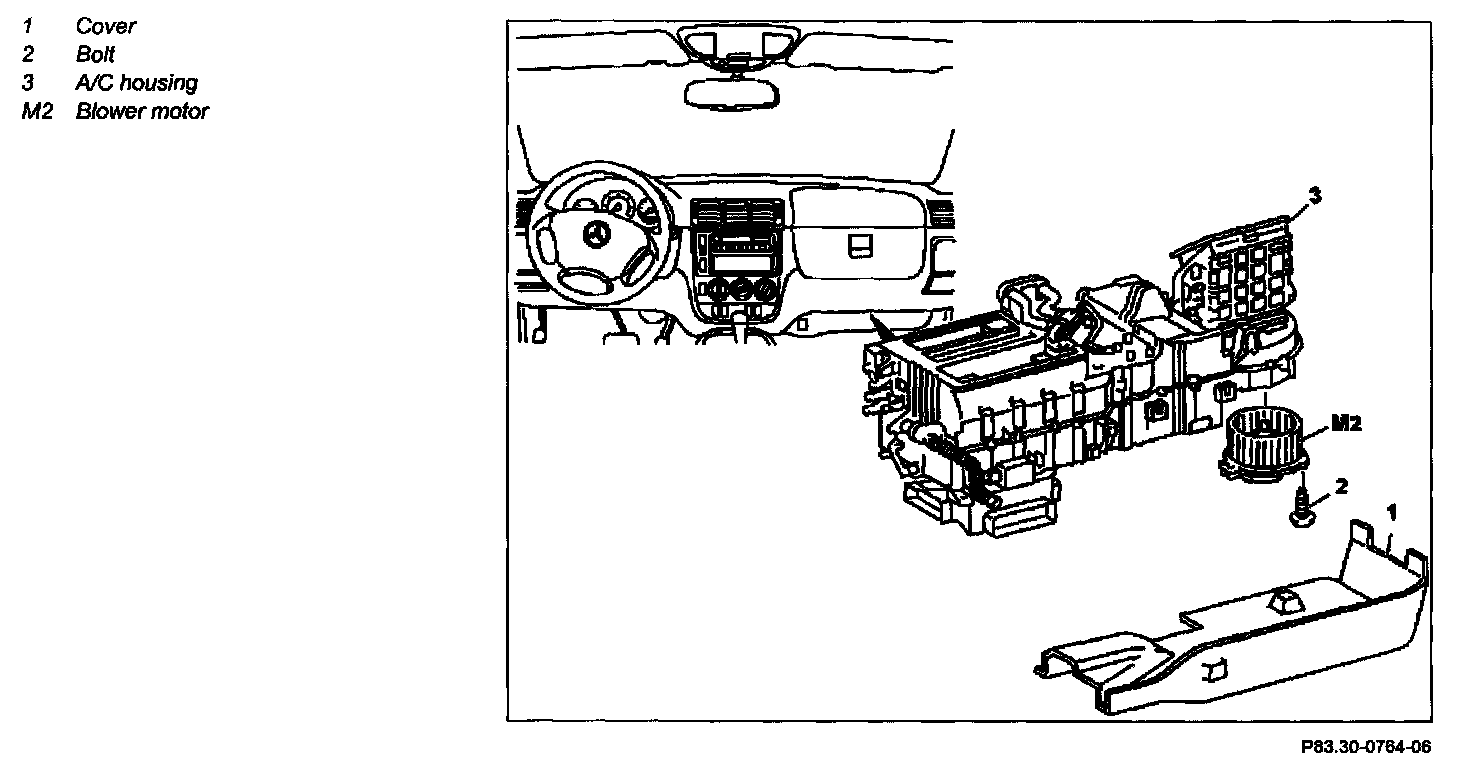

Remove/Install Air Conditioning Blower Motor





1 Remove cover (1) under the instrument panel (right) Service and Repair
2 Unscrew bolt (2) from blower motor (M2)
3 Disconnect connector from blower motor (M2)
4 Remove blower motor (M2) from AC housing (3)
5 Install in the reverse order.
