AR72.29-P-0001GH Remove/Install Switch Group on Center Console

Removing And Installing Center Console Switch Group







Removal, installation
1 Remove ashtray at front of center console

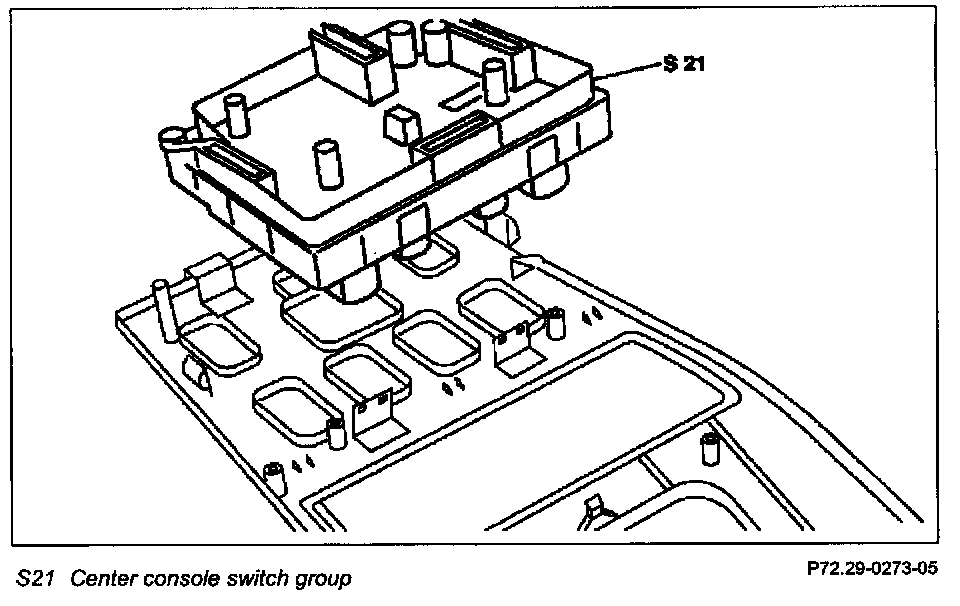

2 Unclip center console switch group (S21)

NOTE: Center console switch group can only be replaced completely.

3 Install in the reverse order
