Shift Lock Override

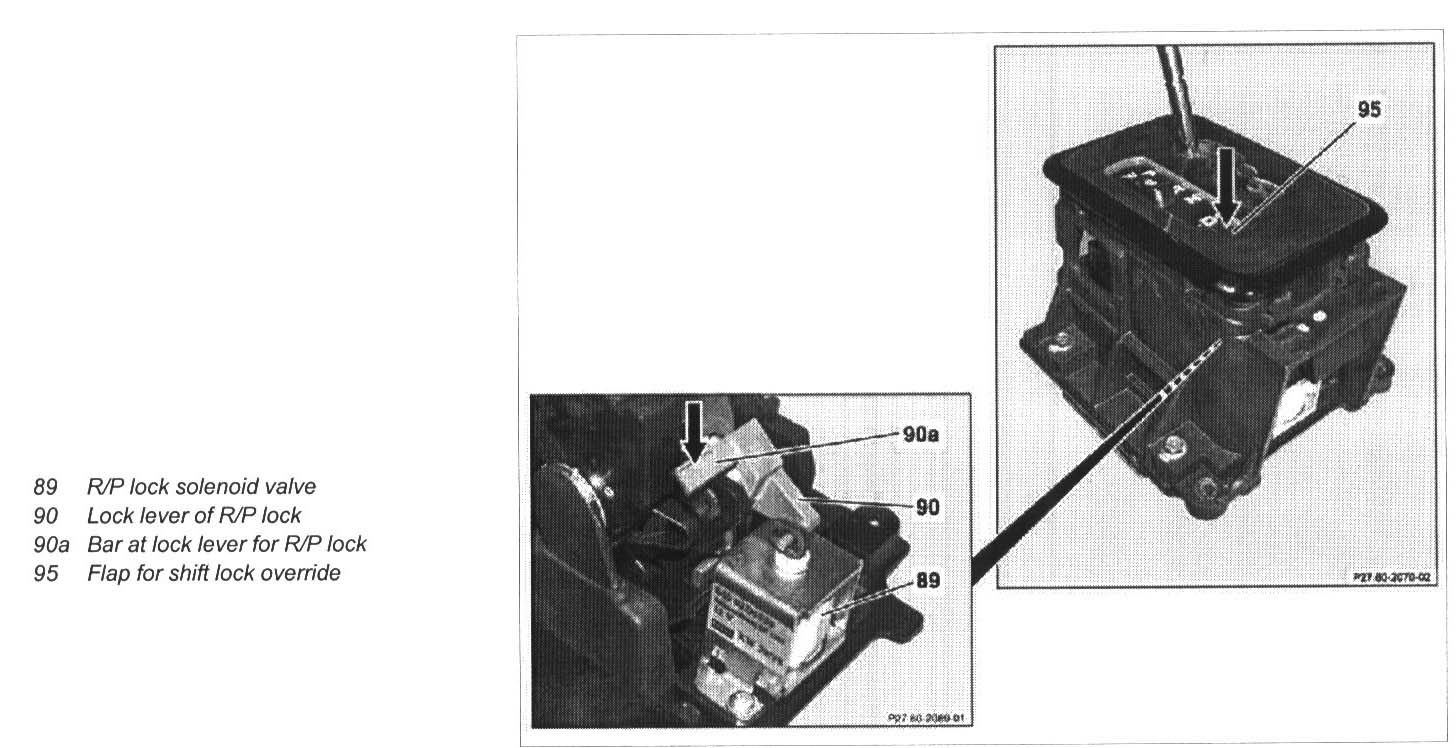

Component Illustration:

Function
If the selector lever cannot be shifted from position "P" due to a mechanical or electrical/electronic fault, the selector lever position "P" lock can be released using the shift lock override function.

To do this, a suitable tool must be guided through the flap (95) to the bar at the lock lever for the R/P lock (90a) and the bar must be pressed down slightly (arrow). The lock lever (90) releases the selector lever. The selector lever can be moved from position "P" by simultaneously operating the lock lever.

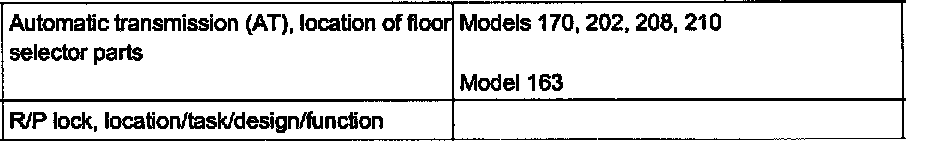

Related Information:
