Digital Data Bus (D2B) PE82.00-U-2700D
Digital Data Bus (D2B) PE82.00-U-2700D
Digital Data Bus (D2B) PE82.00-U-2700D

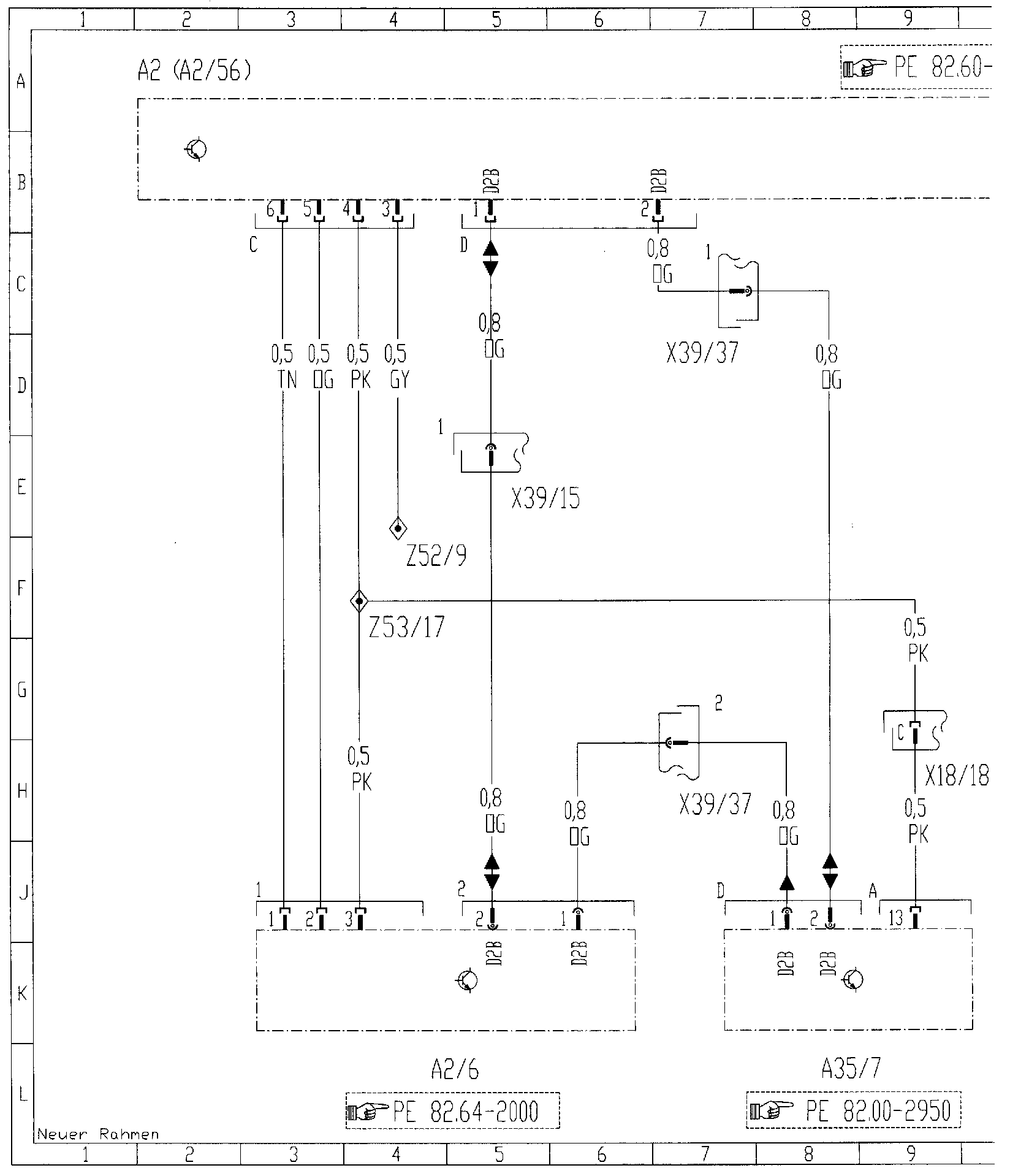

Diagram, Part 1:

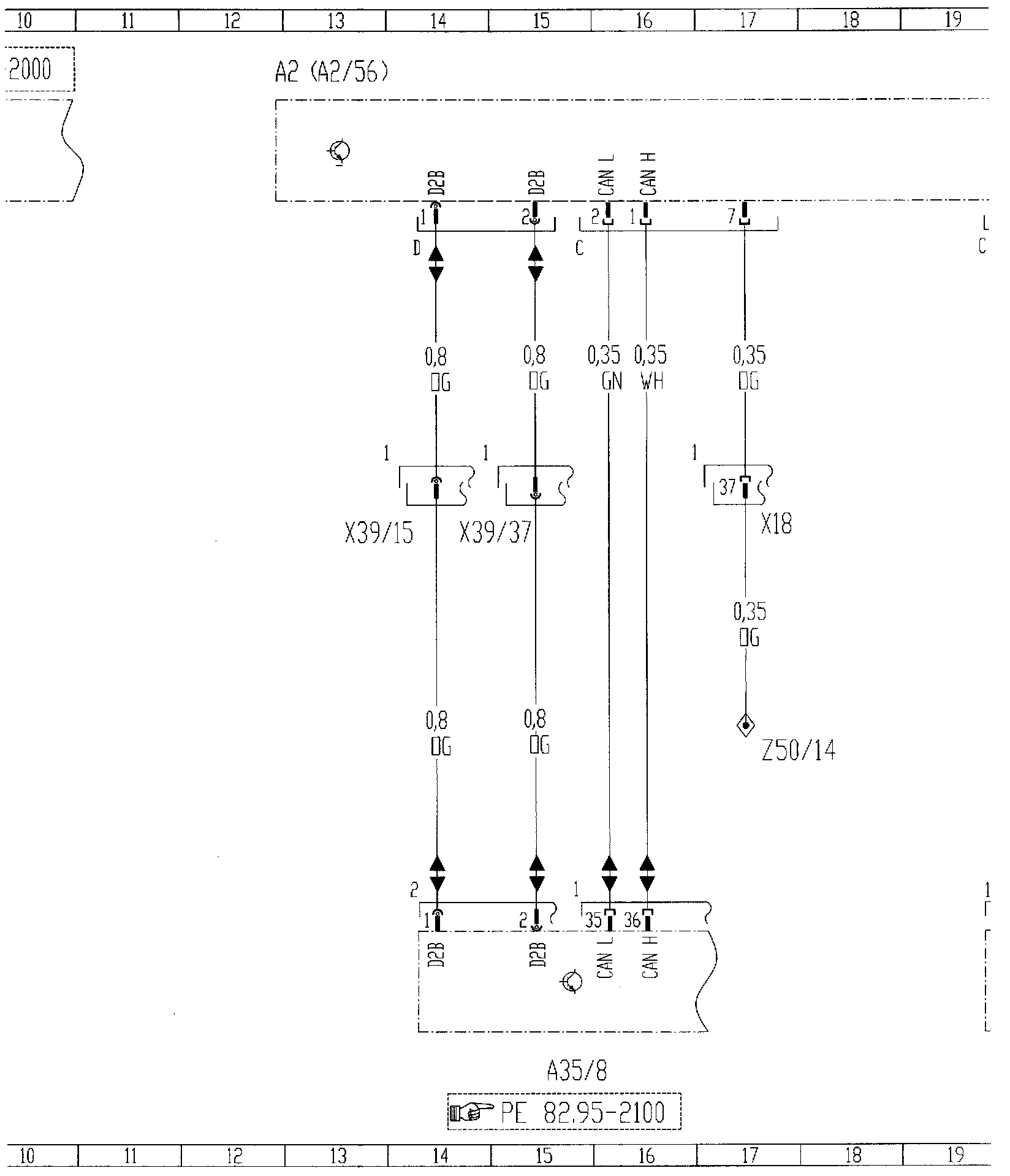

Diagram, Part 2:

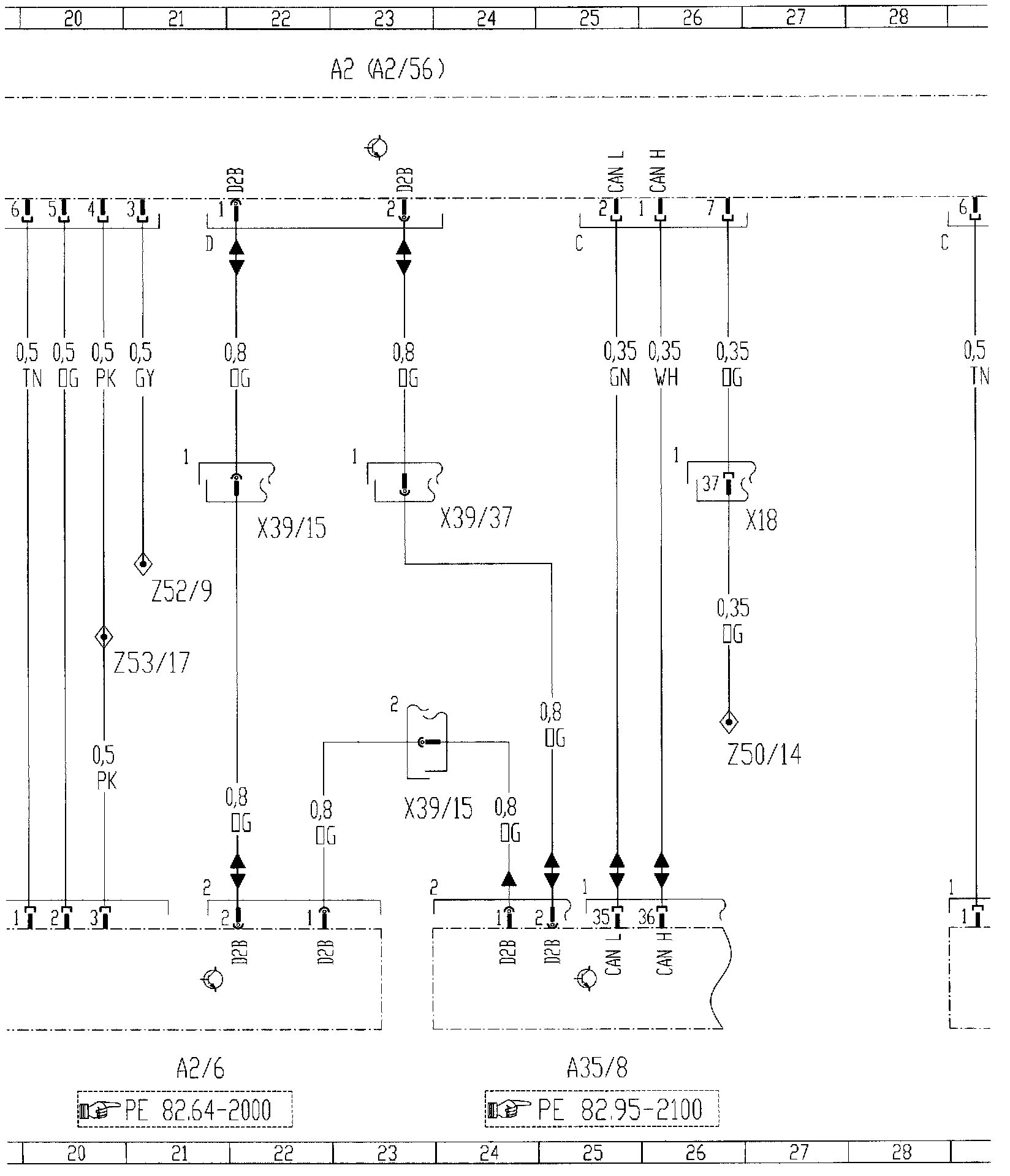

Diagram, Part 3:

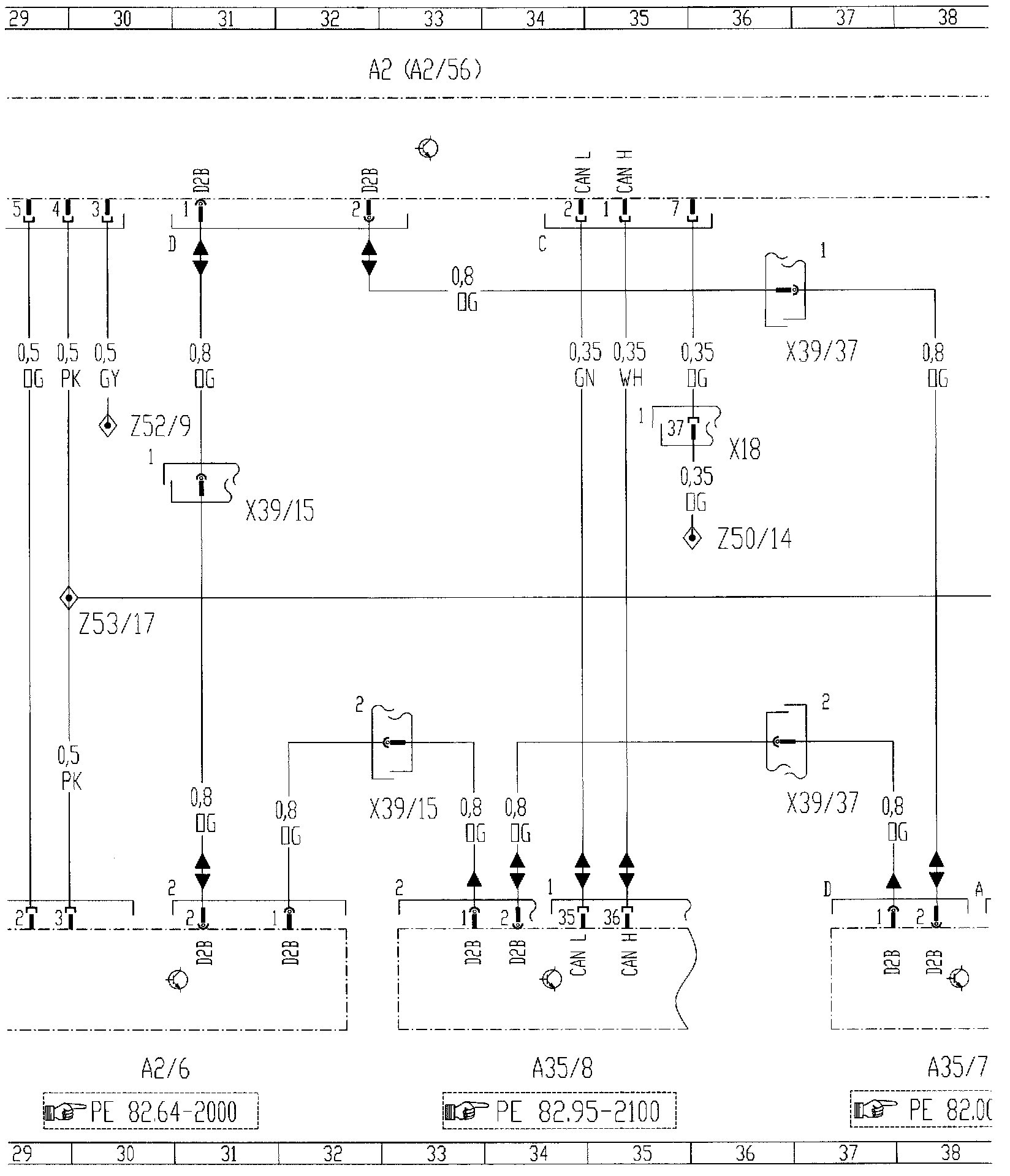

Diagram, Part 4:

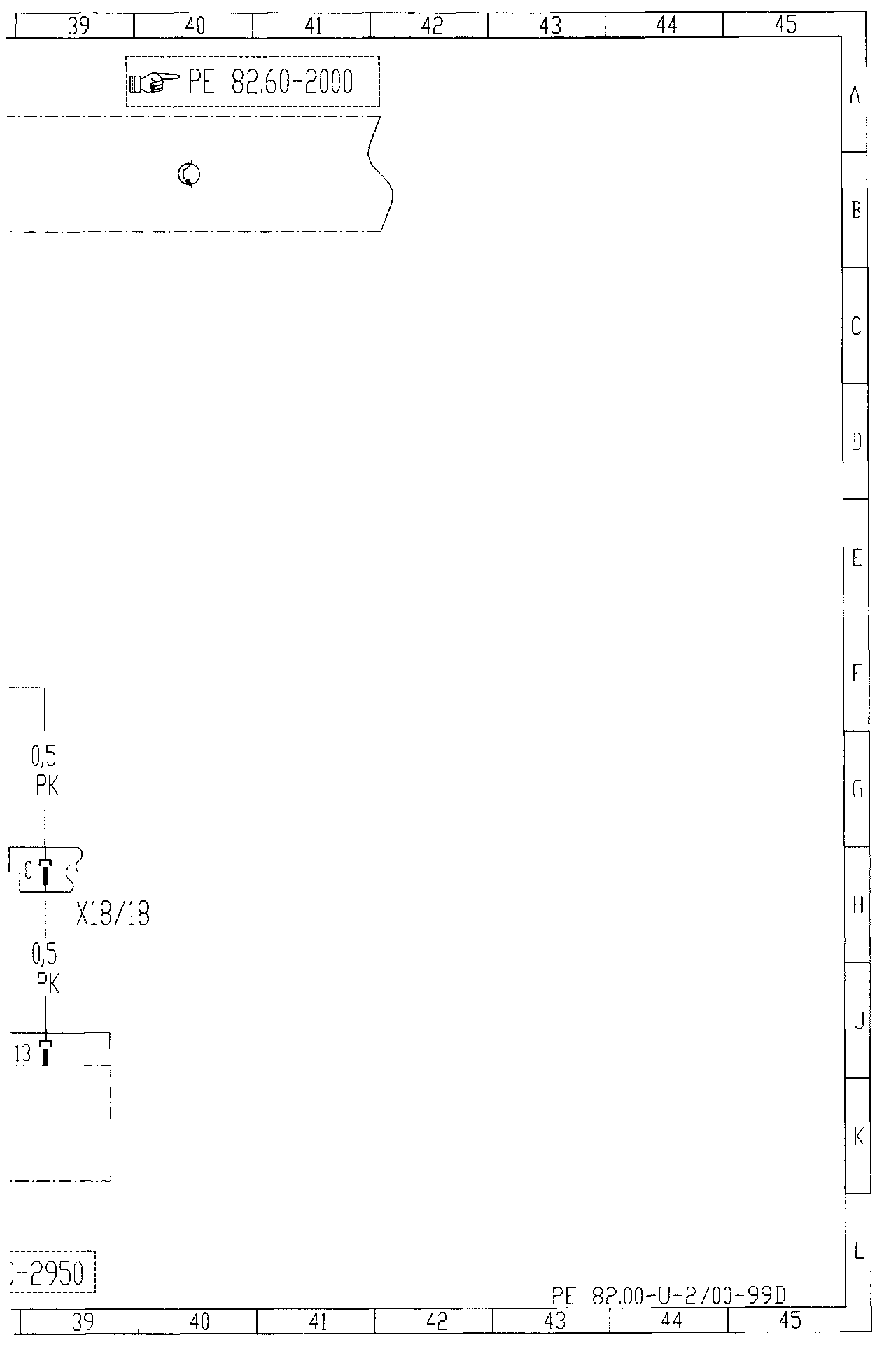

Diagram, Part 5:

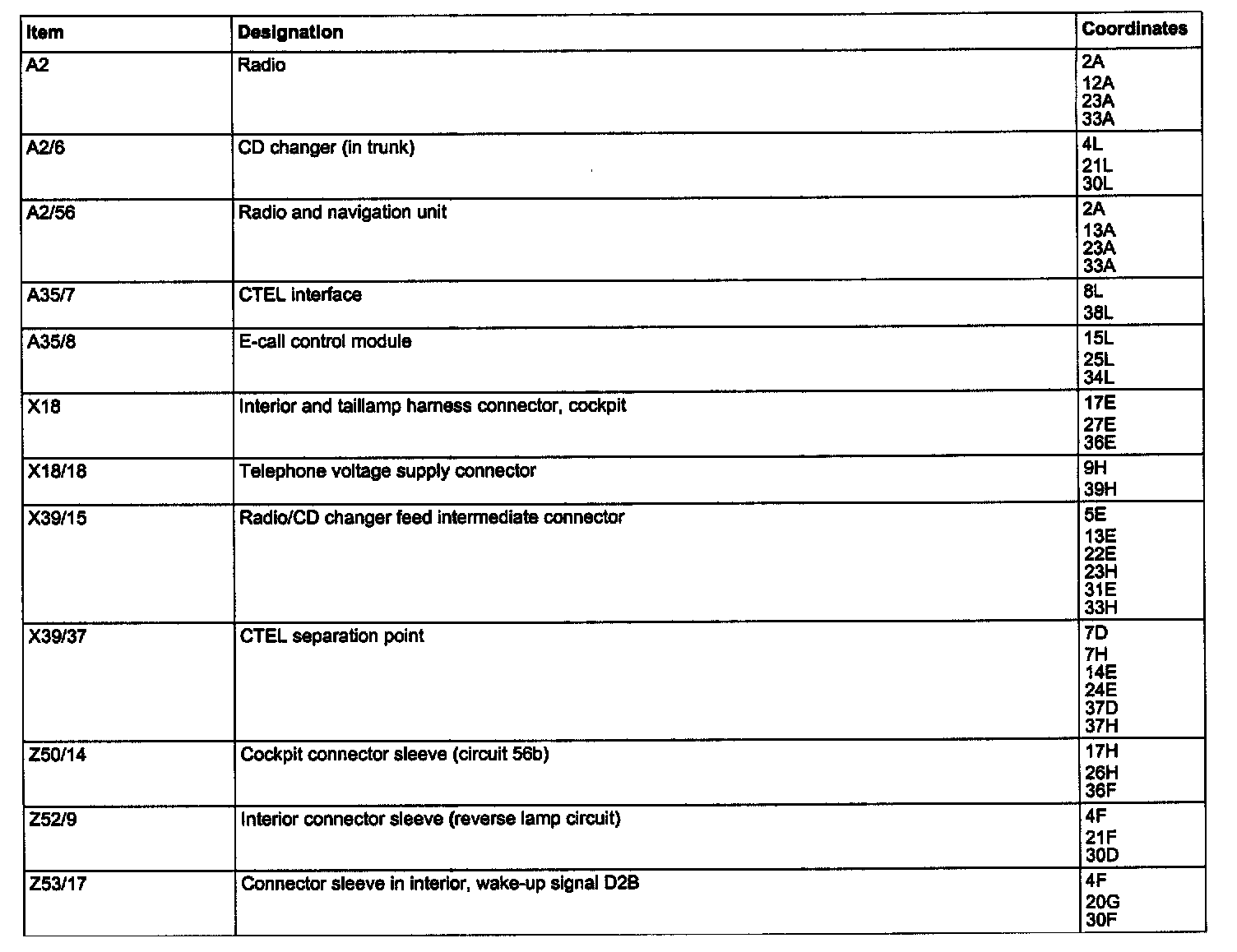

Component Description/Coordinates, A2 - Z53/17:
