Maintenance Required Lamp/Indicator: Locations

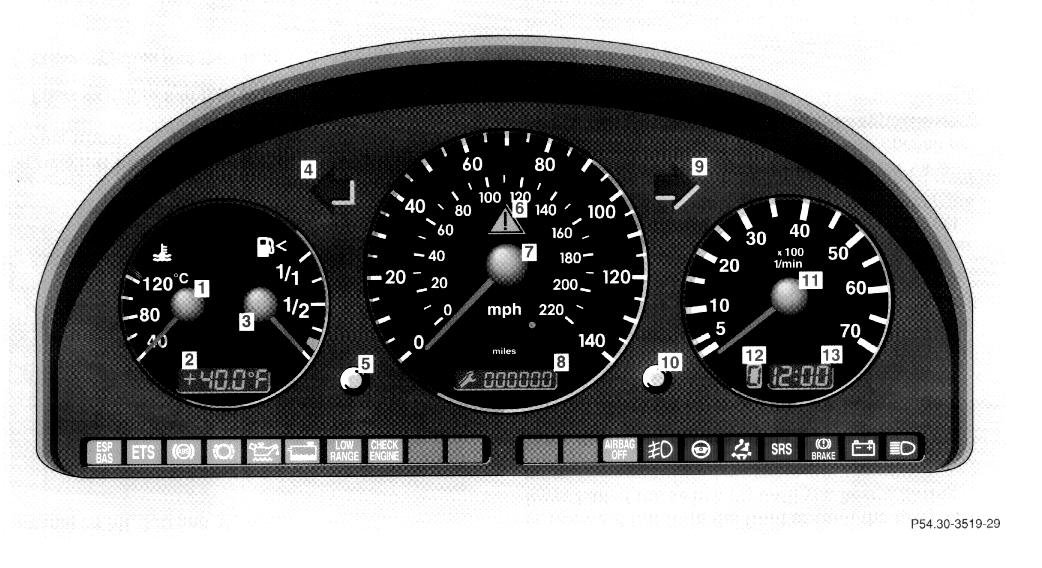

Instrument cluster:



1 Coolant temperature gauge

2 Outside temperature indicator (optional)

3 Fuel gauge with reserve and fuel cap placement warning lamp

4 Left turn signal indicator lamp, see exterior lamp switch

5 Knob for odometer/trip odometer readout/reset, FSS indicator, and intensity of instrument lamps

6 4-ETS+ and ESP warning lamp

7 Speedometer

8 Selectable:

Trip odometer

Main odometer

Service Symbols:

FSS display: The symbols appear in the main odometer display field prior to the next suggested service. Depending on operating conditions throughout the year, the next service is calculated and displayed in days or distance remaining.

Engine oil level indicator

9 Right turn signal indicator lamp, see exterior lamp switch

10 Knob for setting clock

11 Tachometer

12 Gear range indicator display, see selector lever positions

13 Clock
