Refrigerant Pressure Sensor / Switch: Locations

GF83.40-P-2126-02GH Refrigerant Pressure Sensor, Location
- with CODE (580) Air conditioning or Tempmatic for USA

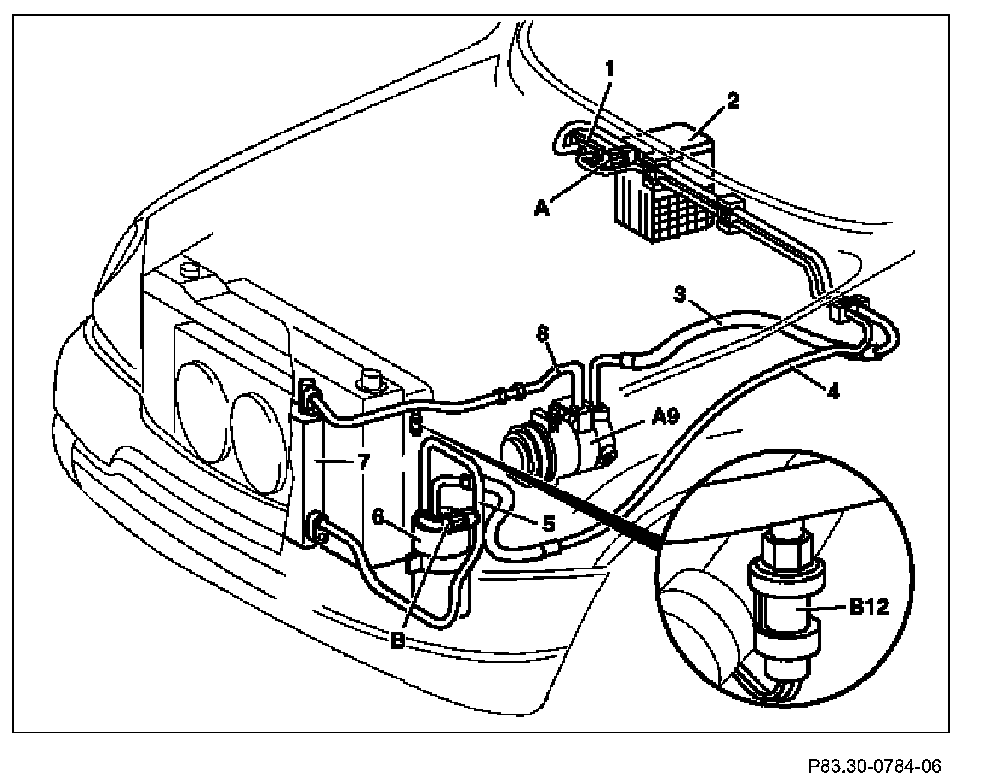

The refrigerant pressure sensor (B12) is located at the front left in the engine compartment at the high-pressure line (8) between the refrigerant compressor (A9) and the capacitor (7).
