AR83.20-P-1835GH Remove/Install Switch Unit For Heater/Ventilation

Remove, Install Switch Unit For Heater/Ventilation





1 Remove radio

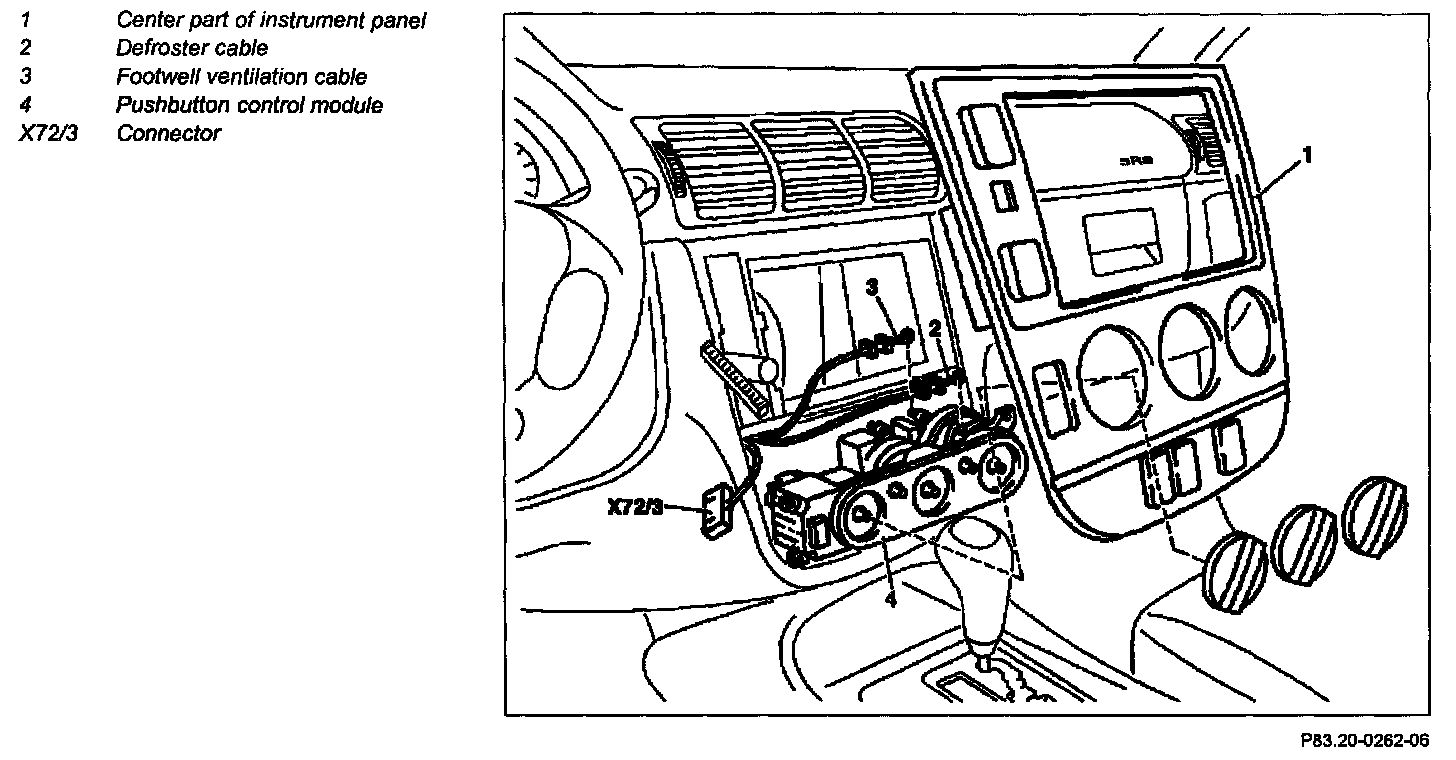

2 Remove center part of instrument panel (1)
3 Unscrew bolts at heater/AC controls (4) and remove controls
4 Detach cable (2, 3)

NOTE: Unclip cables at heater/AC controls.

5 Disconnect connector (X72/3) at heater/AC controls (4)
6 Install in the reverse order.
