Home >> Mercedes Benz Truck >> 2001 >> ML 320 (163.154) V6-3.2L (112.942) >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor HVAC >> Compressor Clutch >> Description and Operation >> GF83.55-P-2101GH Electromagnetic Clutch Position/Task/Design/Function

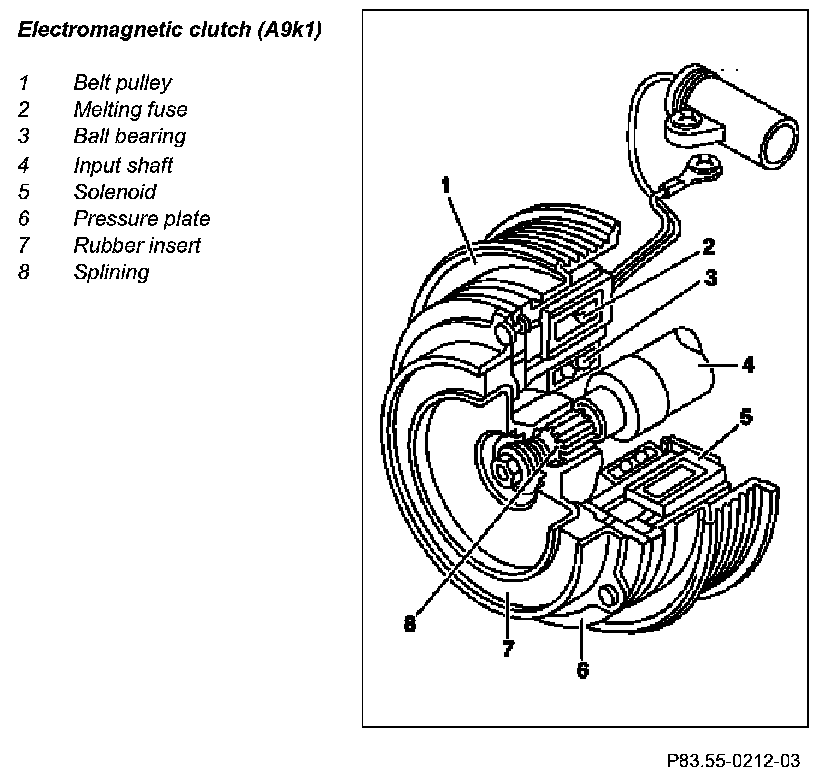

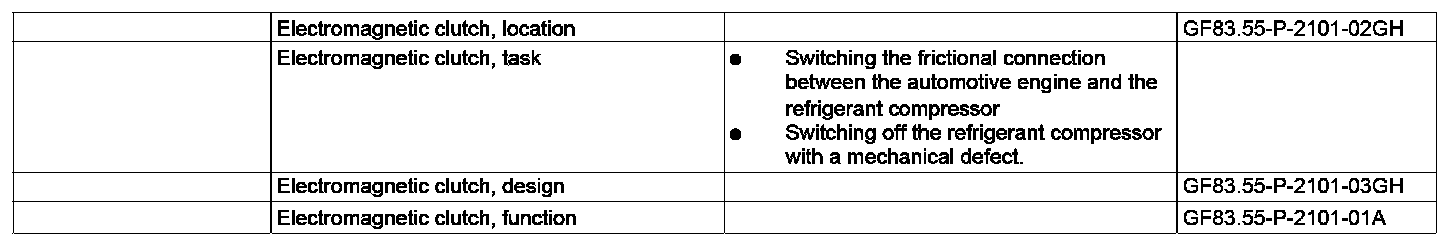

GF83.55-P-2101GH Electromagnetic Clutch Position/Task/Design/Function



GF83.55-P-2101GH Electromagnetic Clutch Position/Task/Design/Function
- with CODE (580) Air conditioning or Tempmatic for USA
