Emergency Contact Module

Emergency Call System PE82.95-U-2100A
- with CODE (347a) Emergency Call System

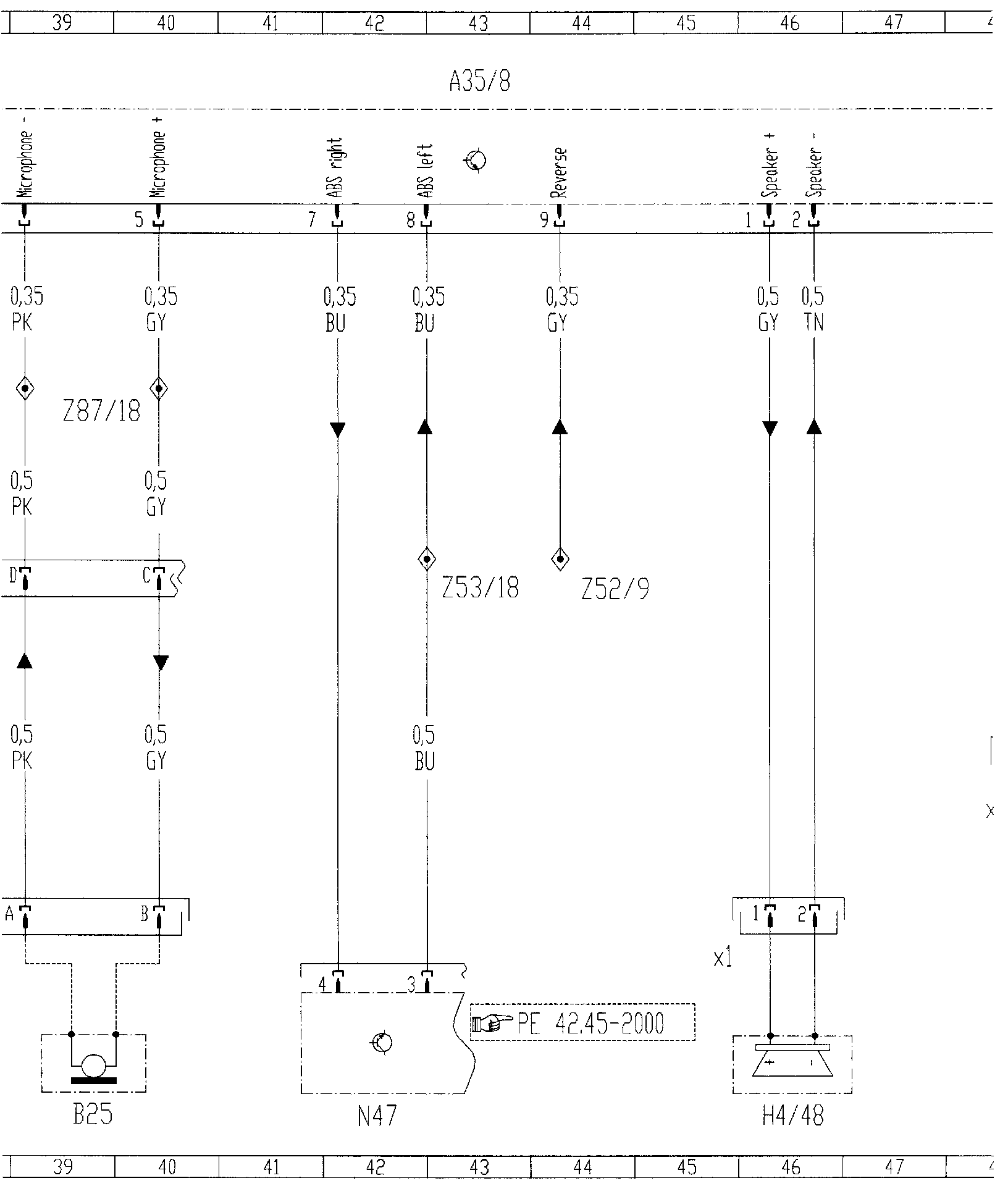

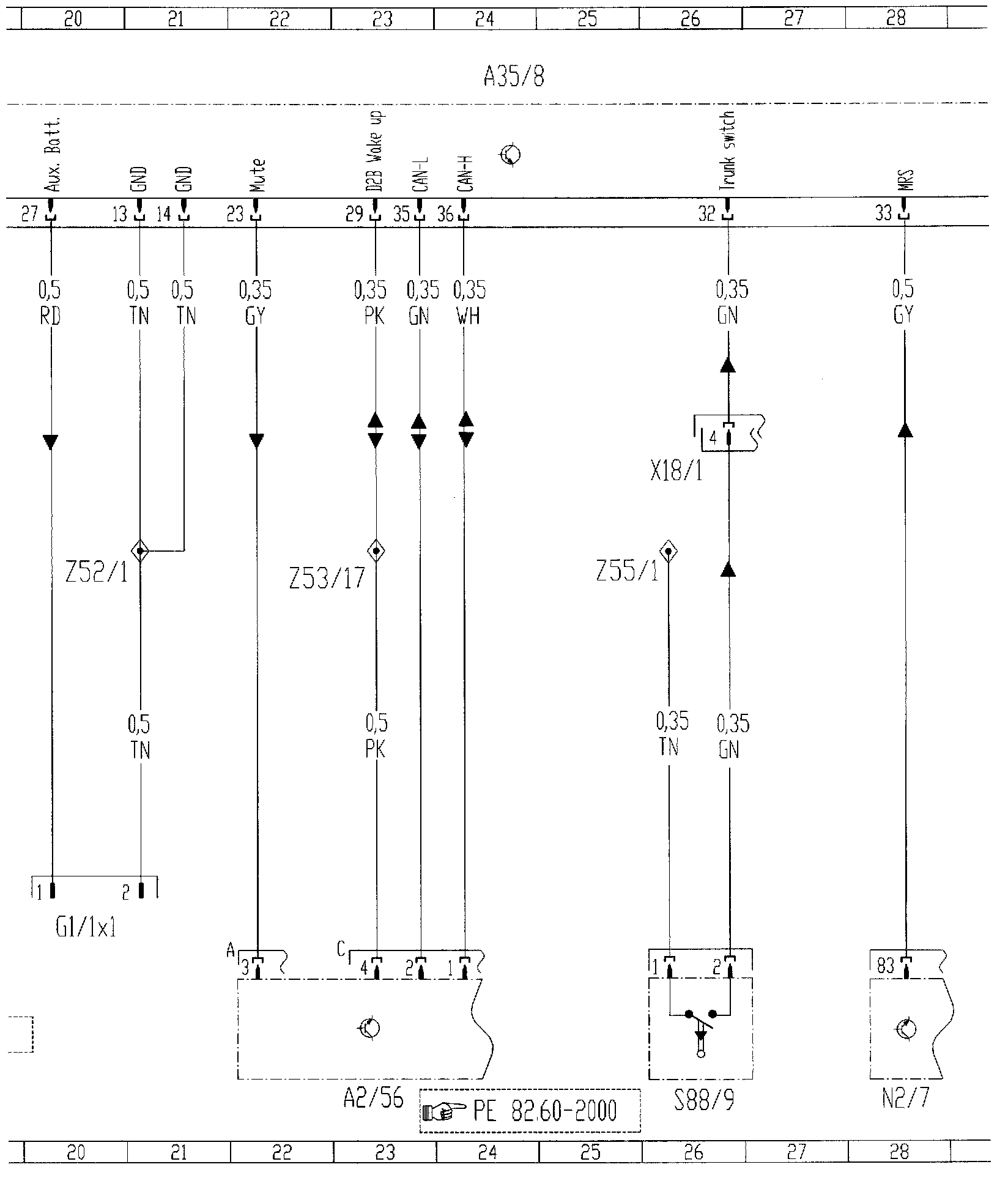

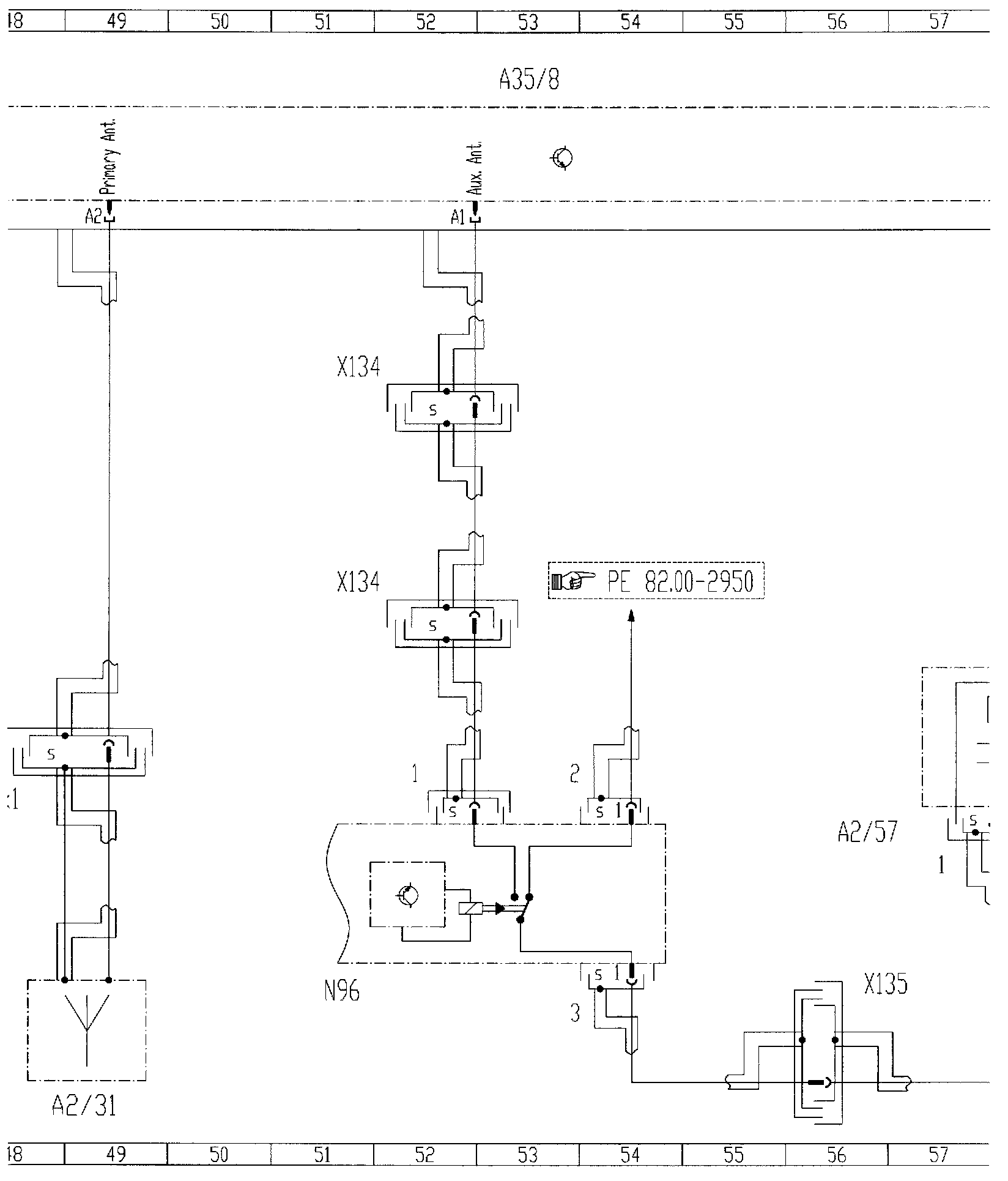

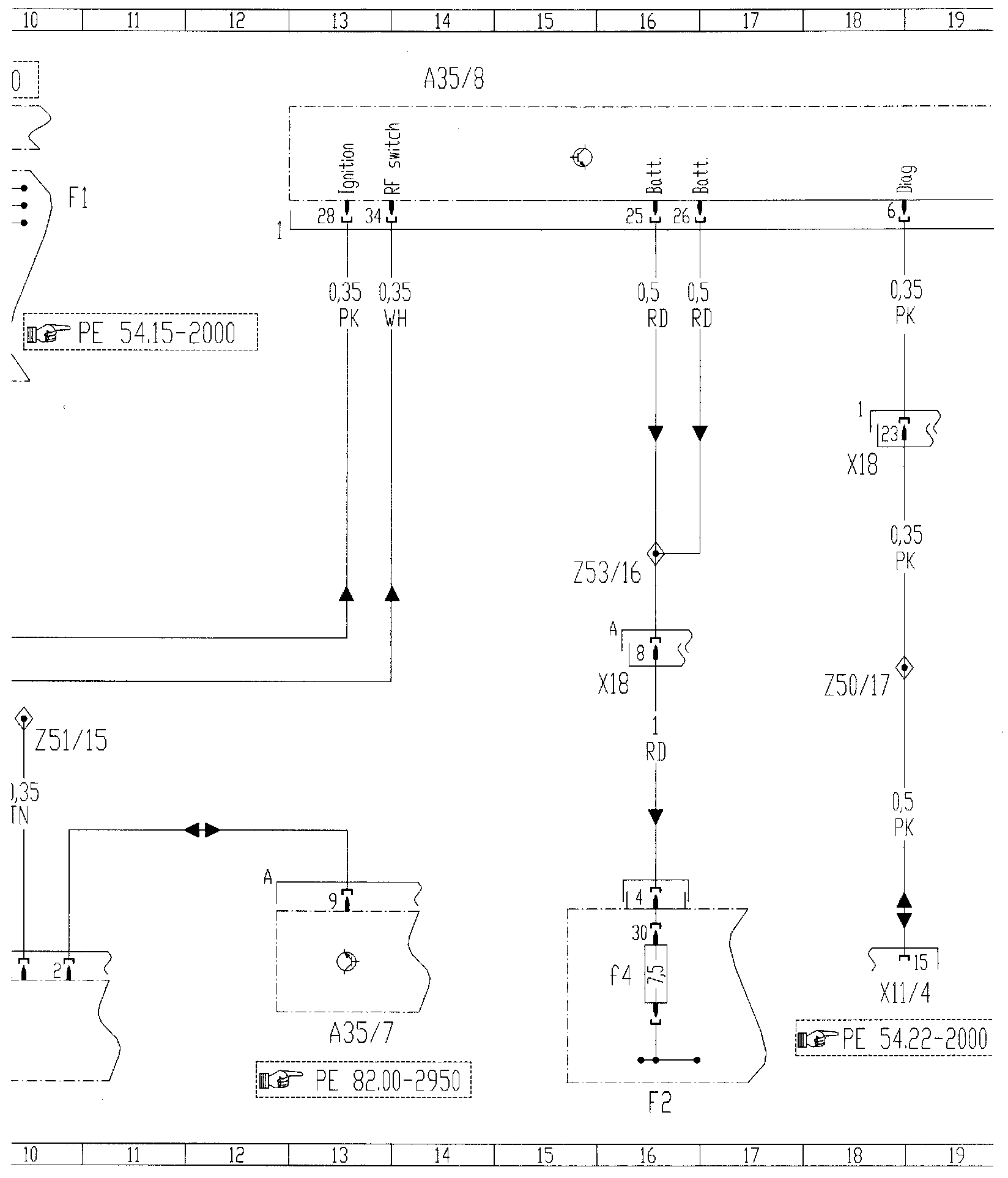

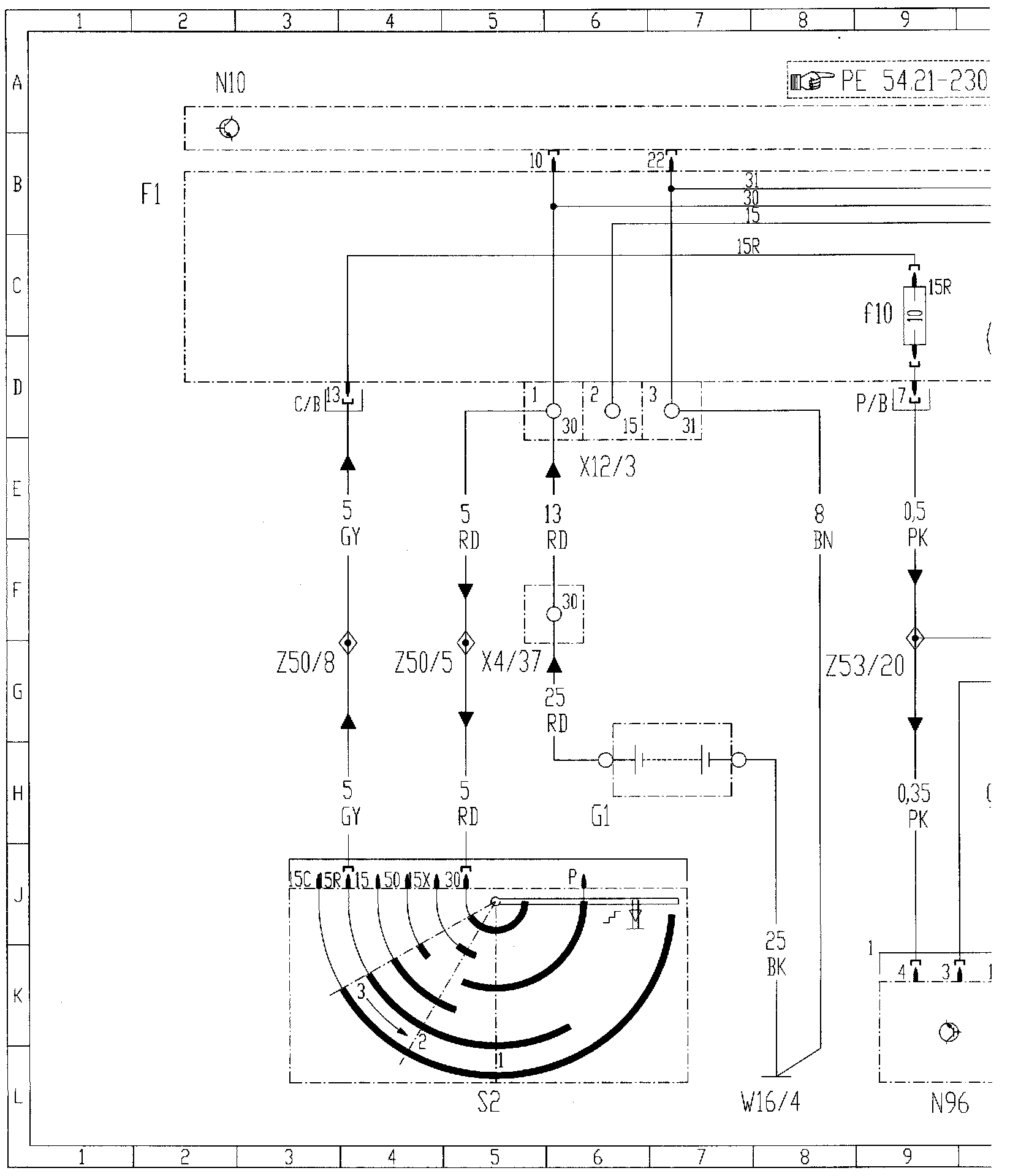

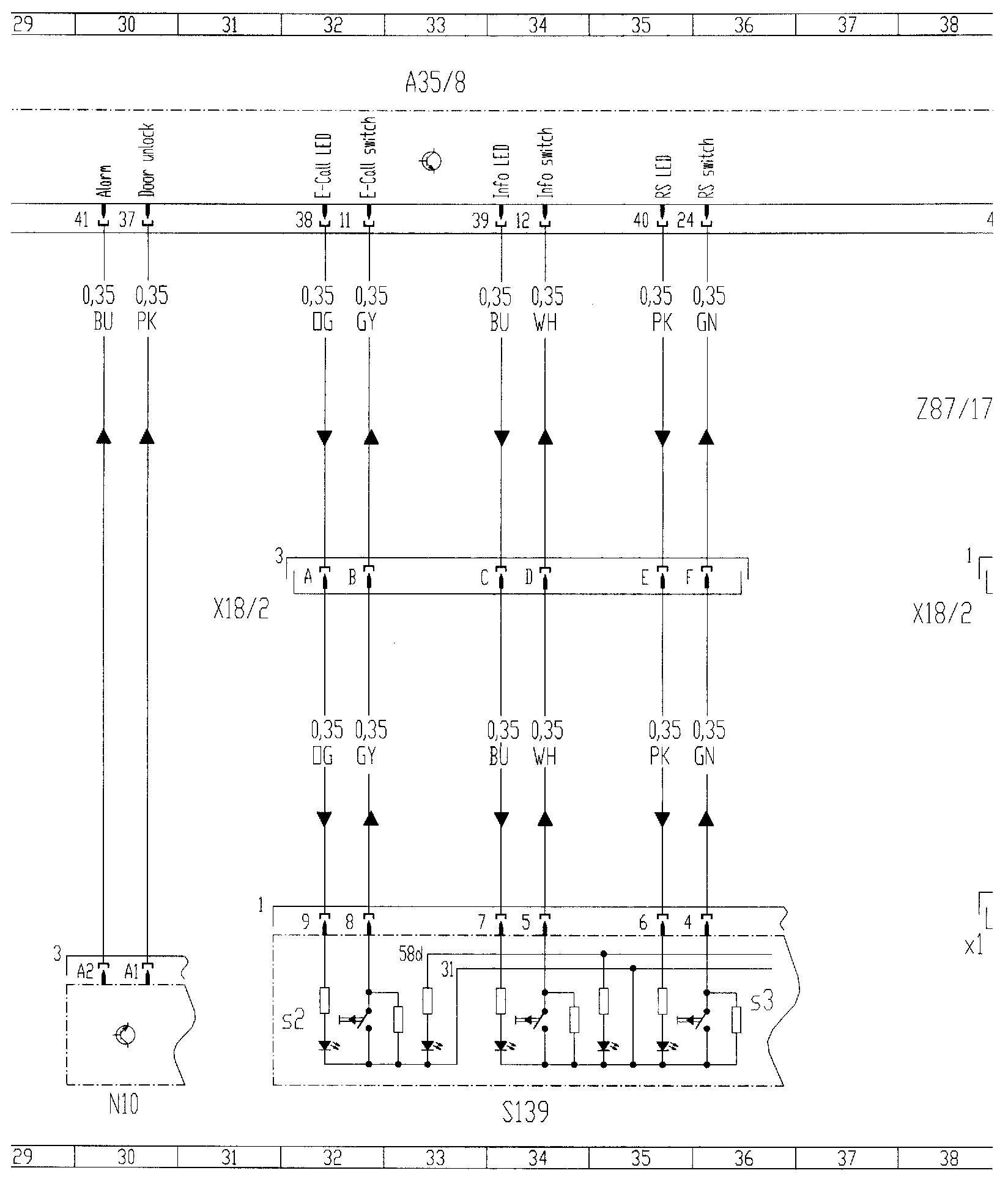

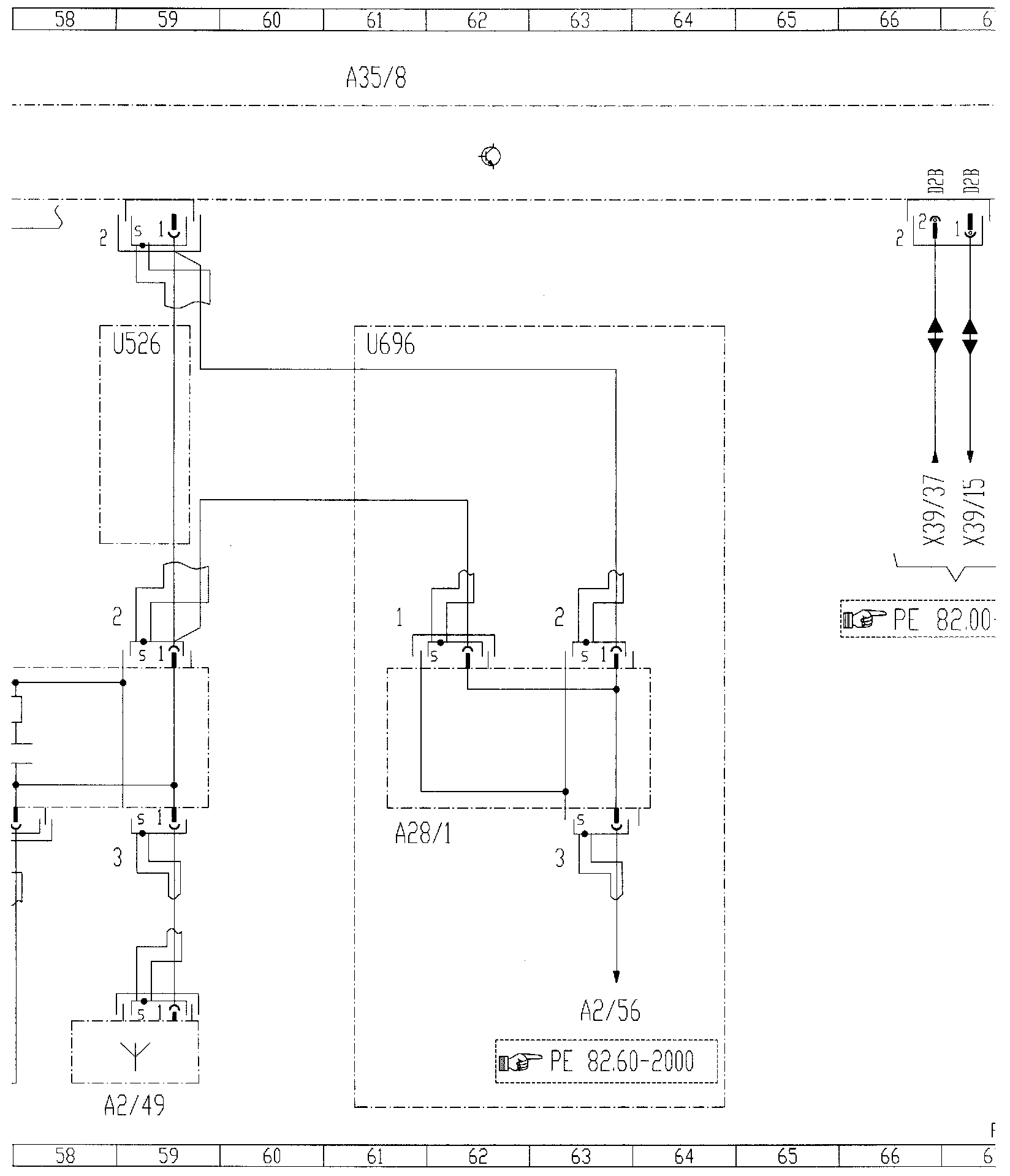

Diagram, Part 1:

Diagram, Part 2:

Diagram, Part 3:

Diagram, Part 4:

Diagram, Part 5:

Diagram, Part 6:

Diagram, Part 7:

Diagram, Part 8:

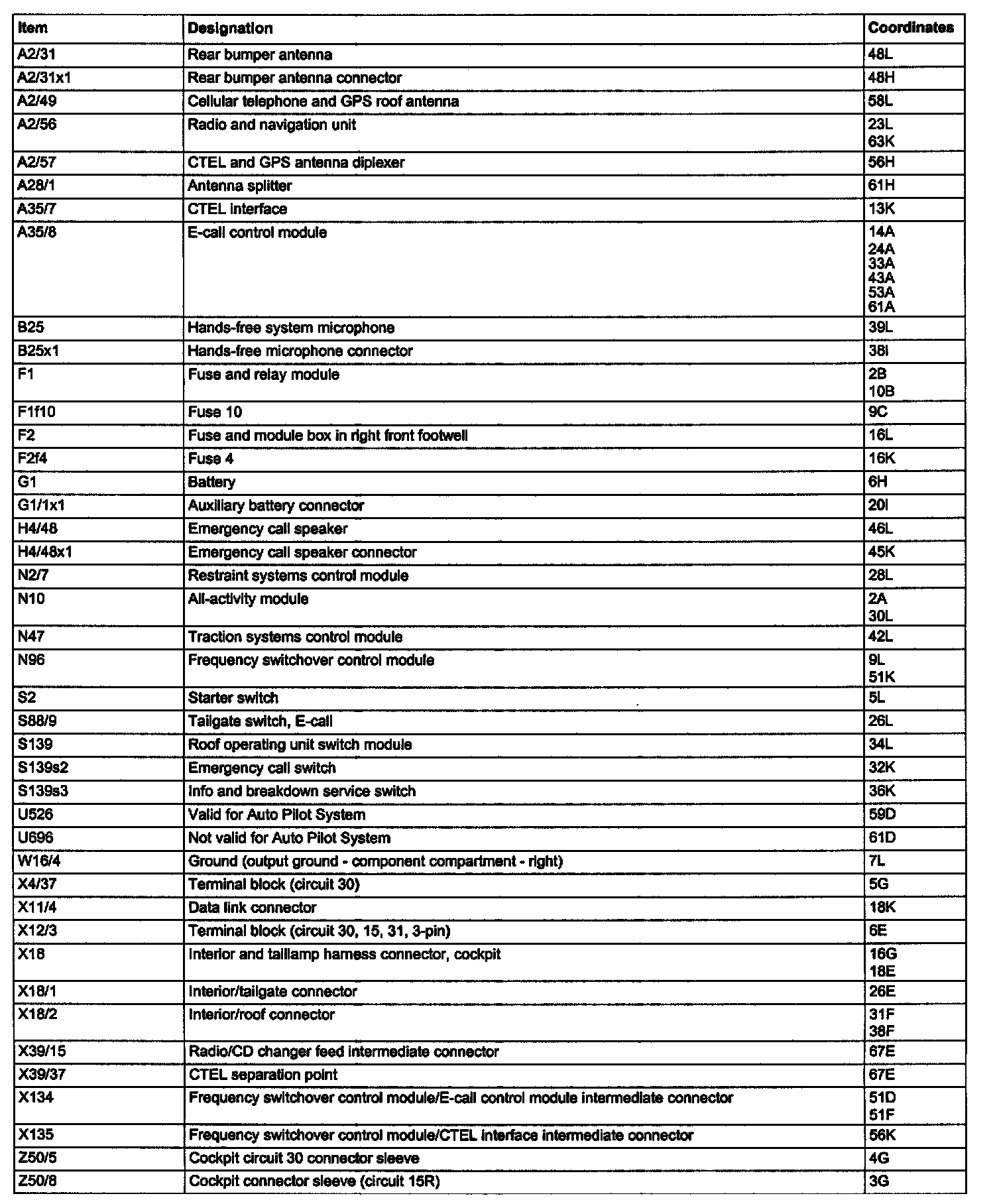

Component Description/Coordinates, A2/31 - Z50/8:

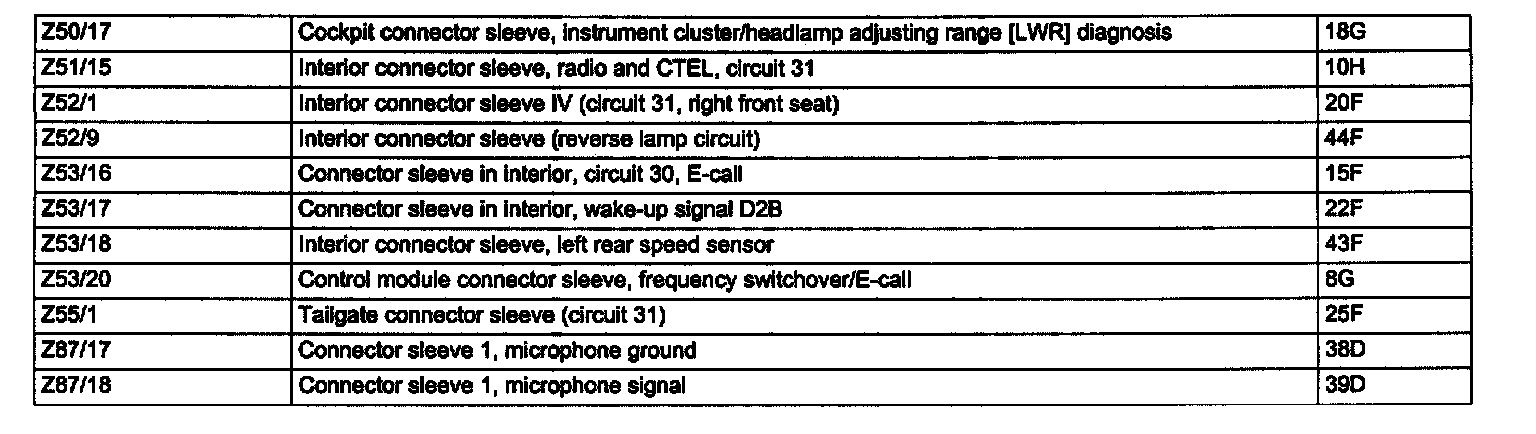

Component Description/Coordinates, Z50/17 - Z87/18:
