All Activity Module (AAM) PE54.21-U-2300C

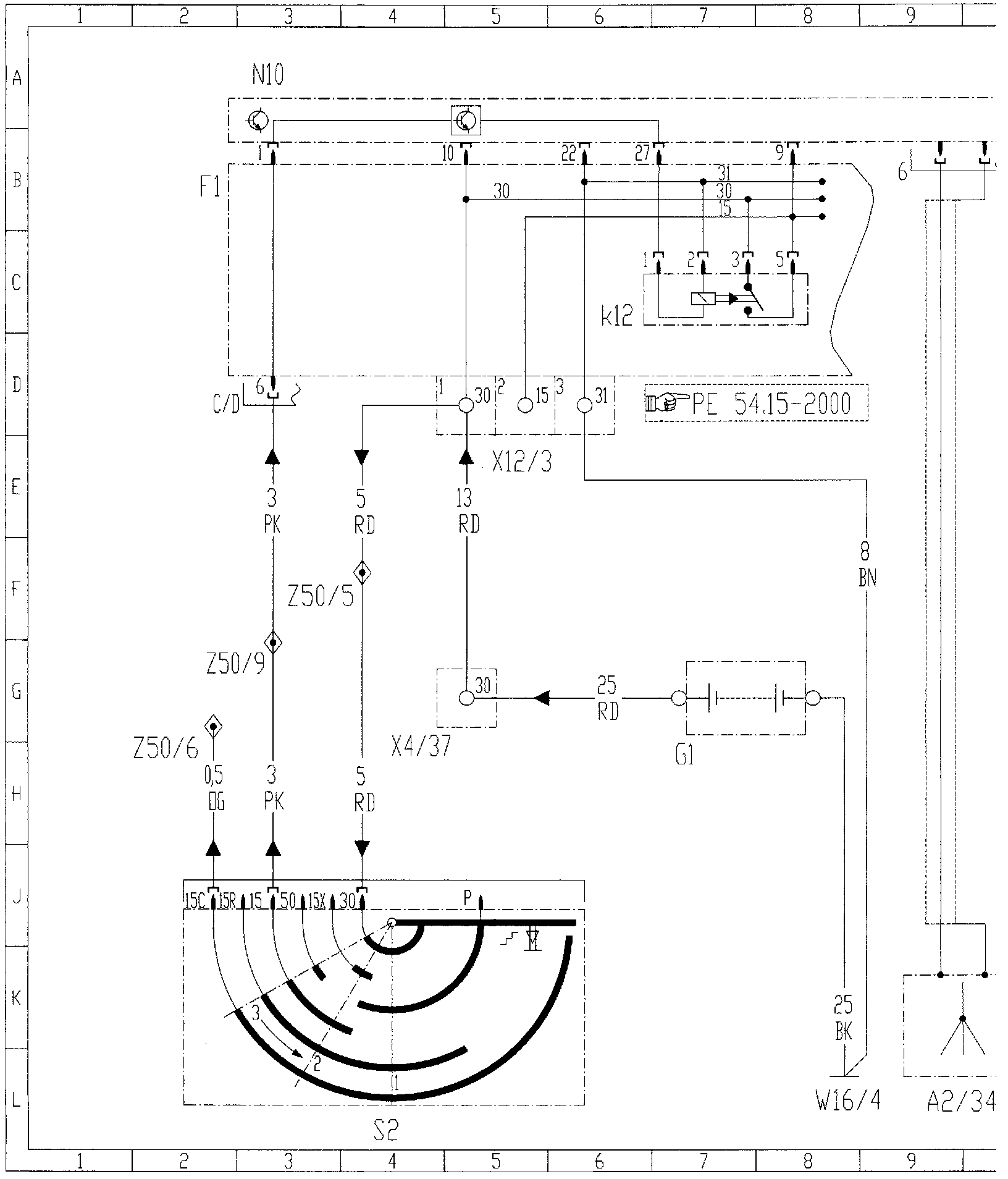

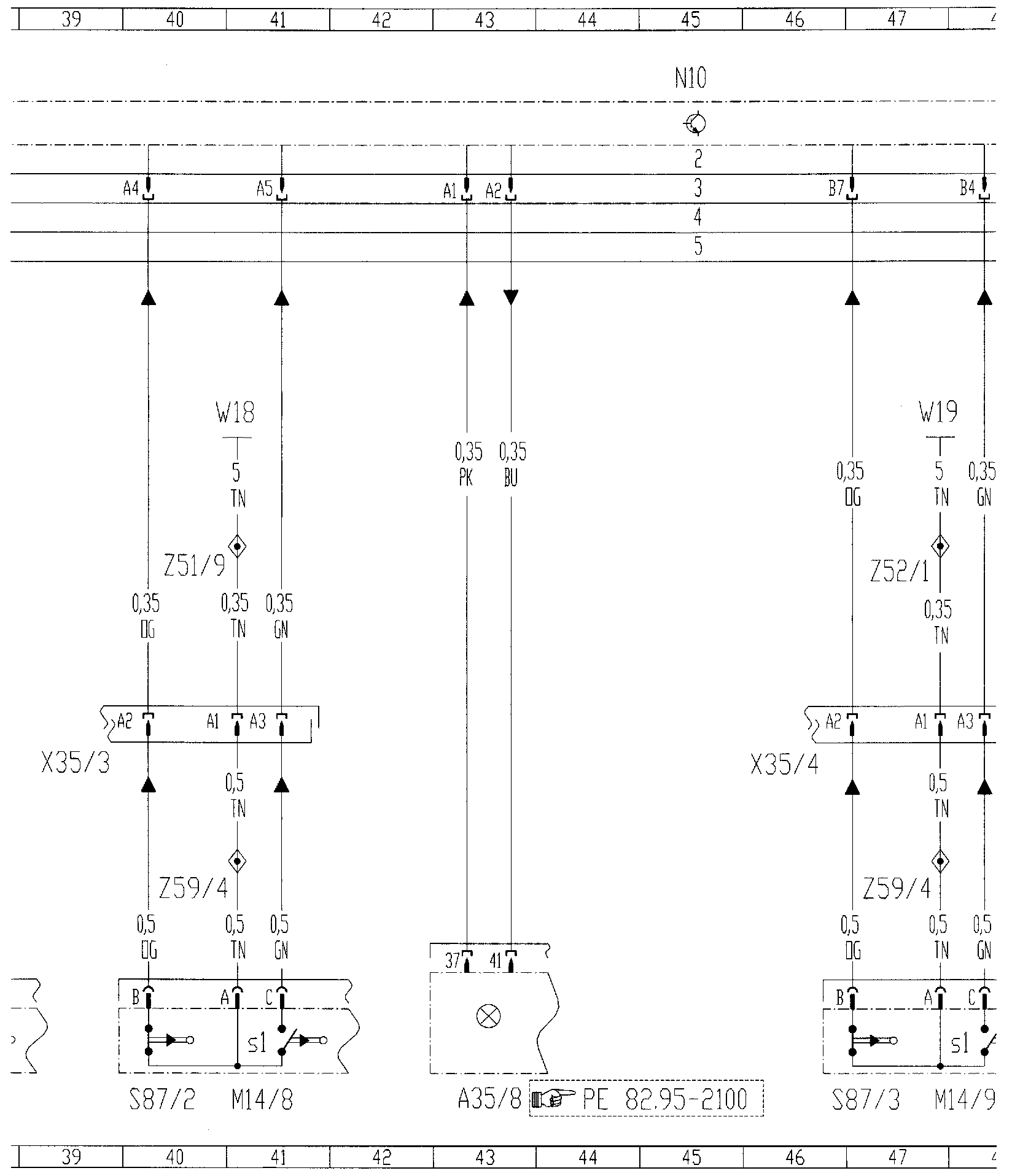

Diagram, Part 1:

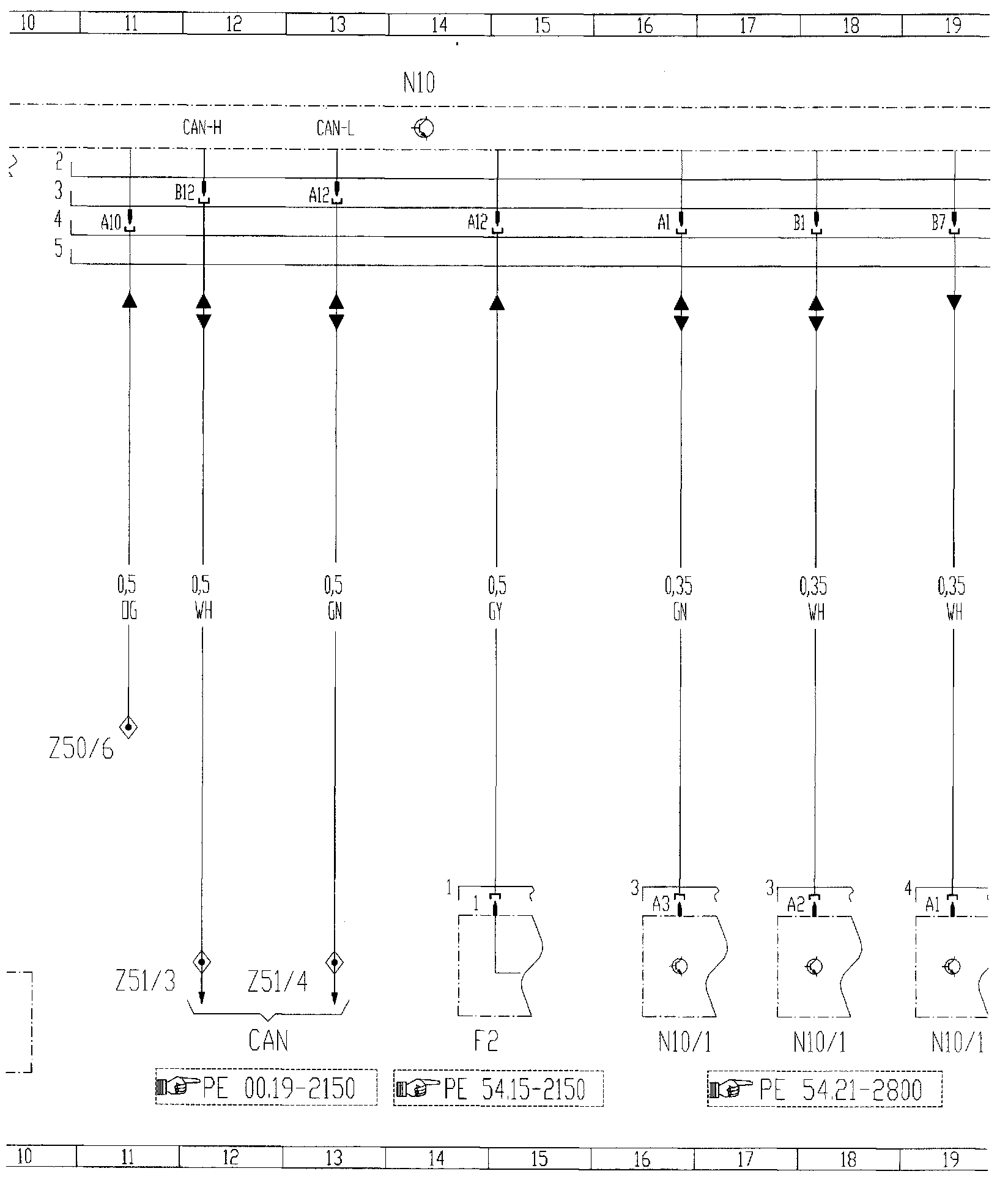

Diagram, Part 2:

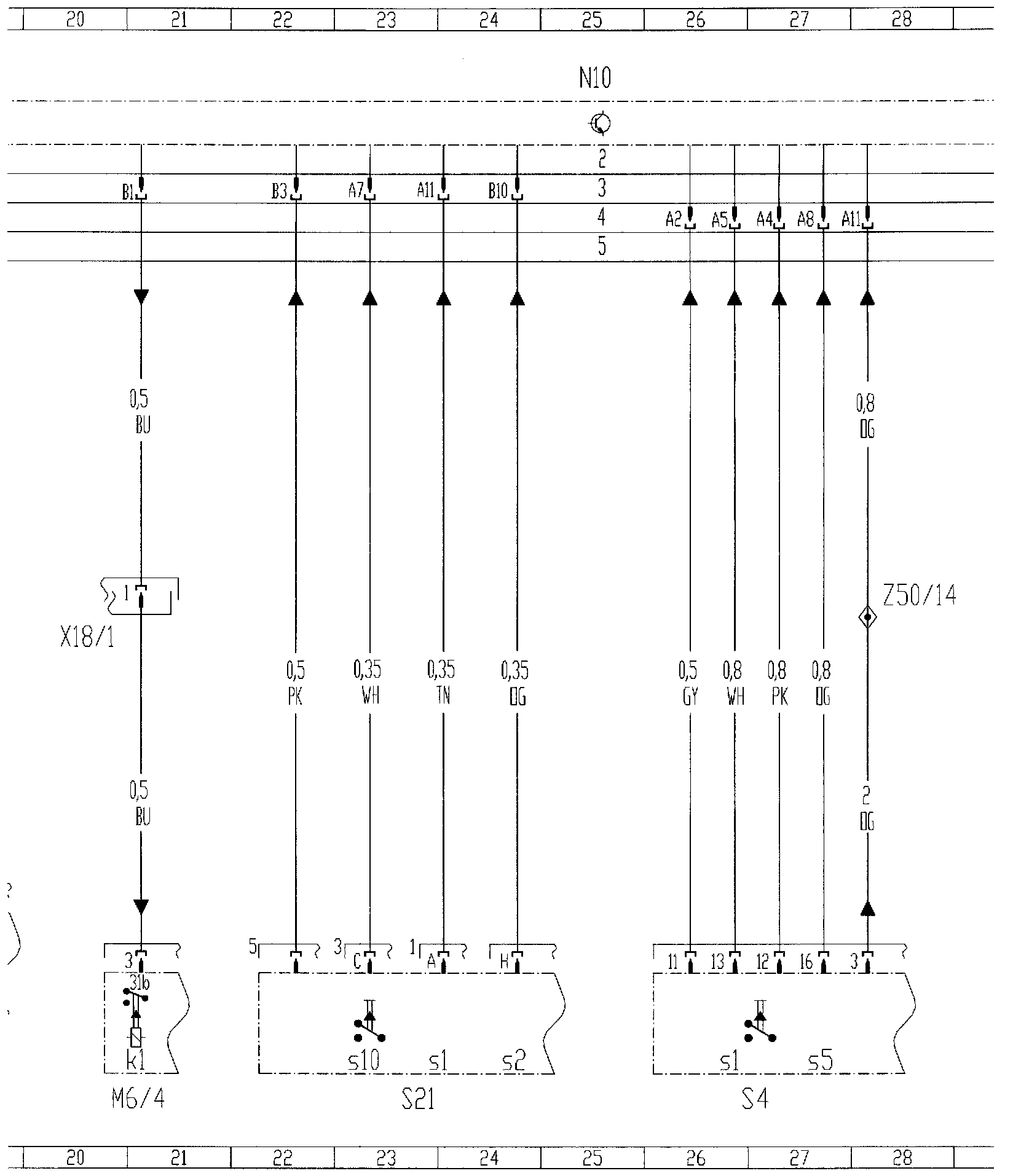

Diagram, Part 3:

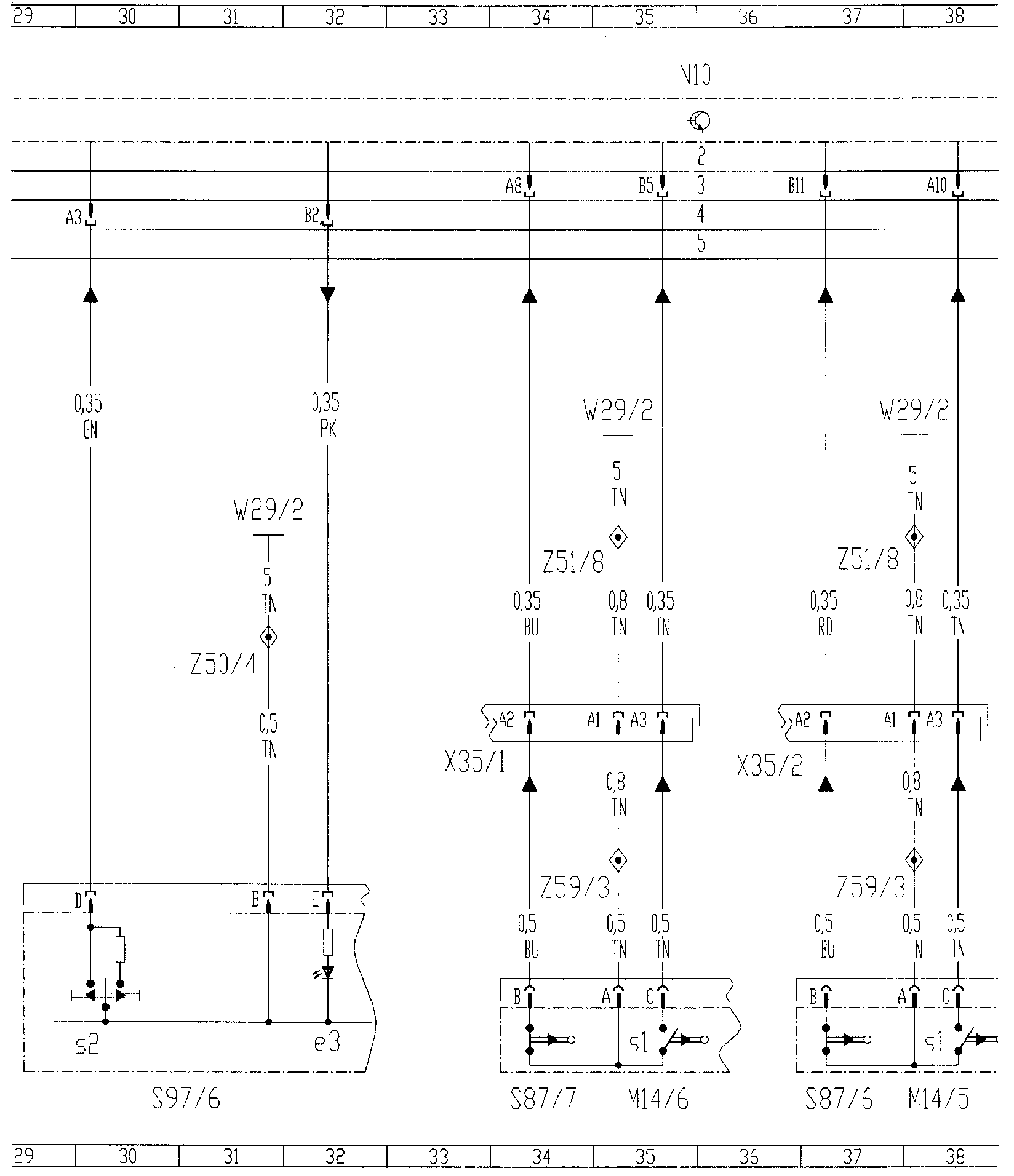

Diagram, Part 4:

Diagram, Part 5:

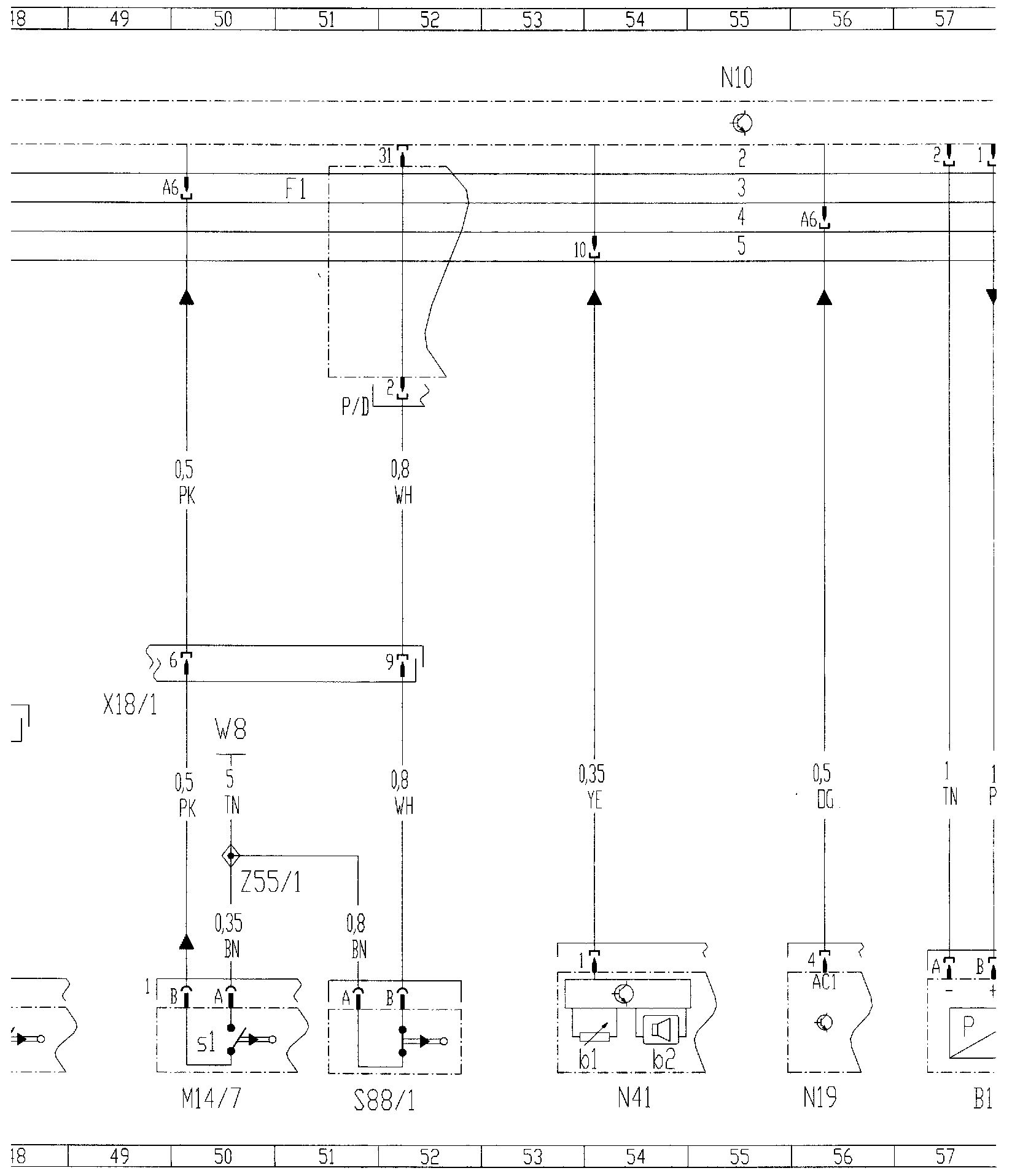

Diagram, Part 6:

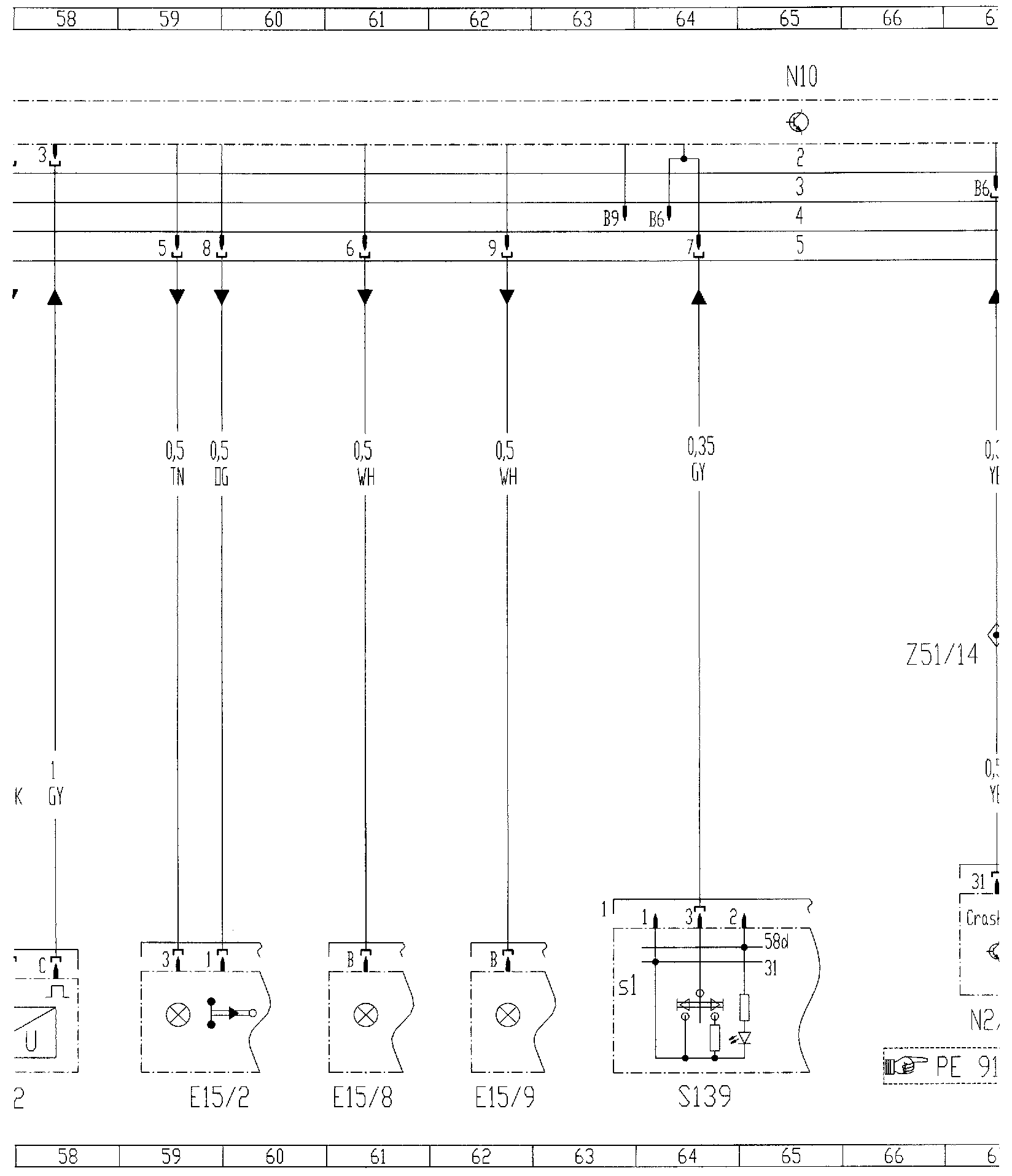

Diagram, Part 7:

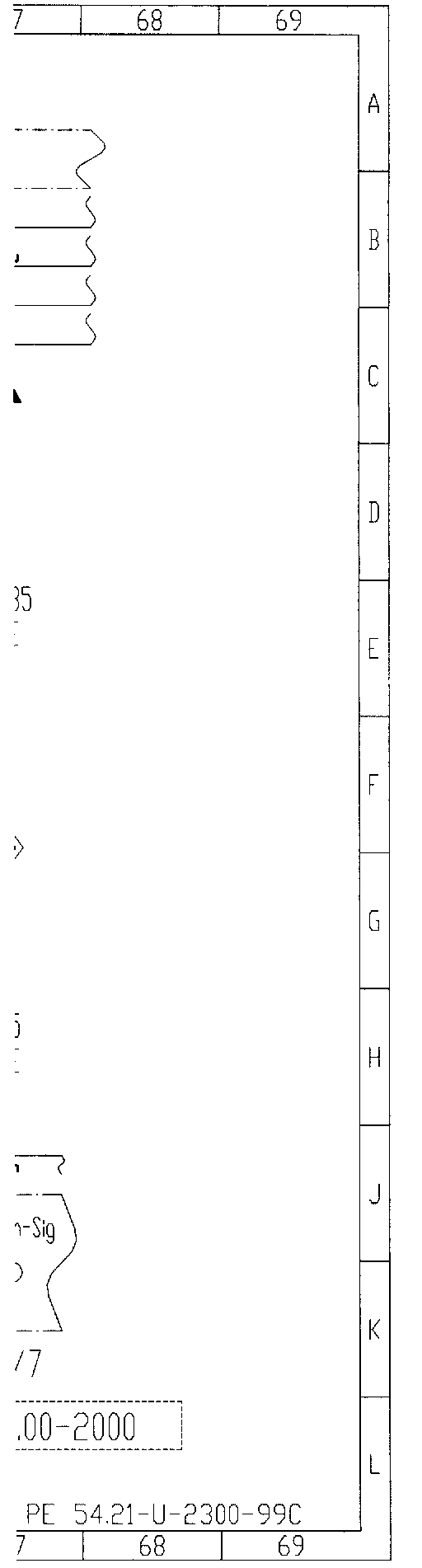

Diagram, Part 8:

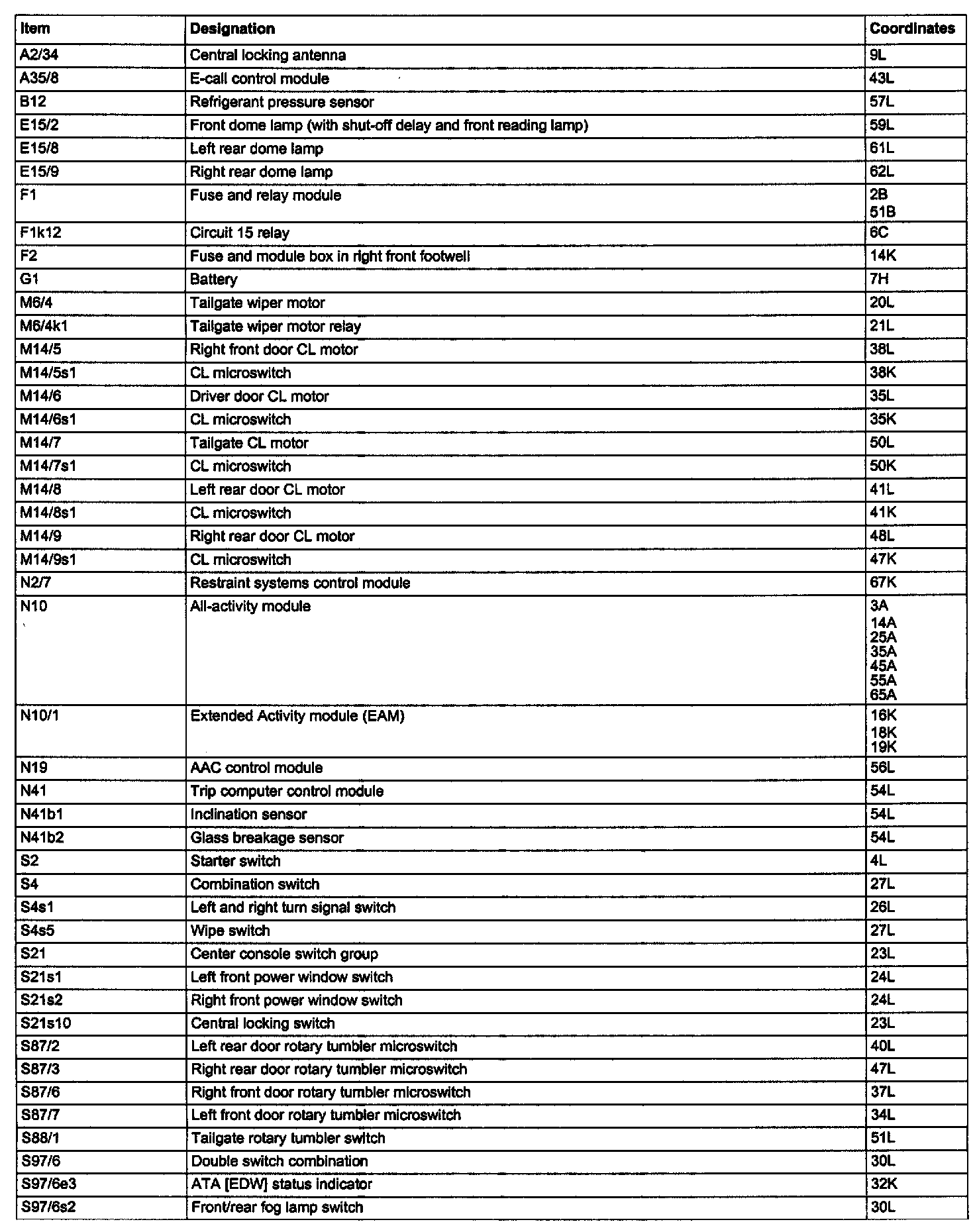

Component Description/Coordinates, A2/34 - S97/6s2:

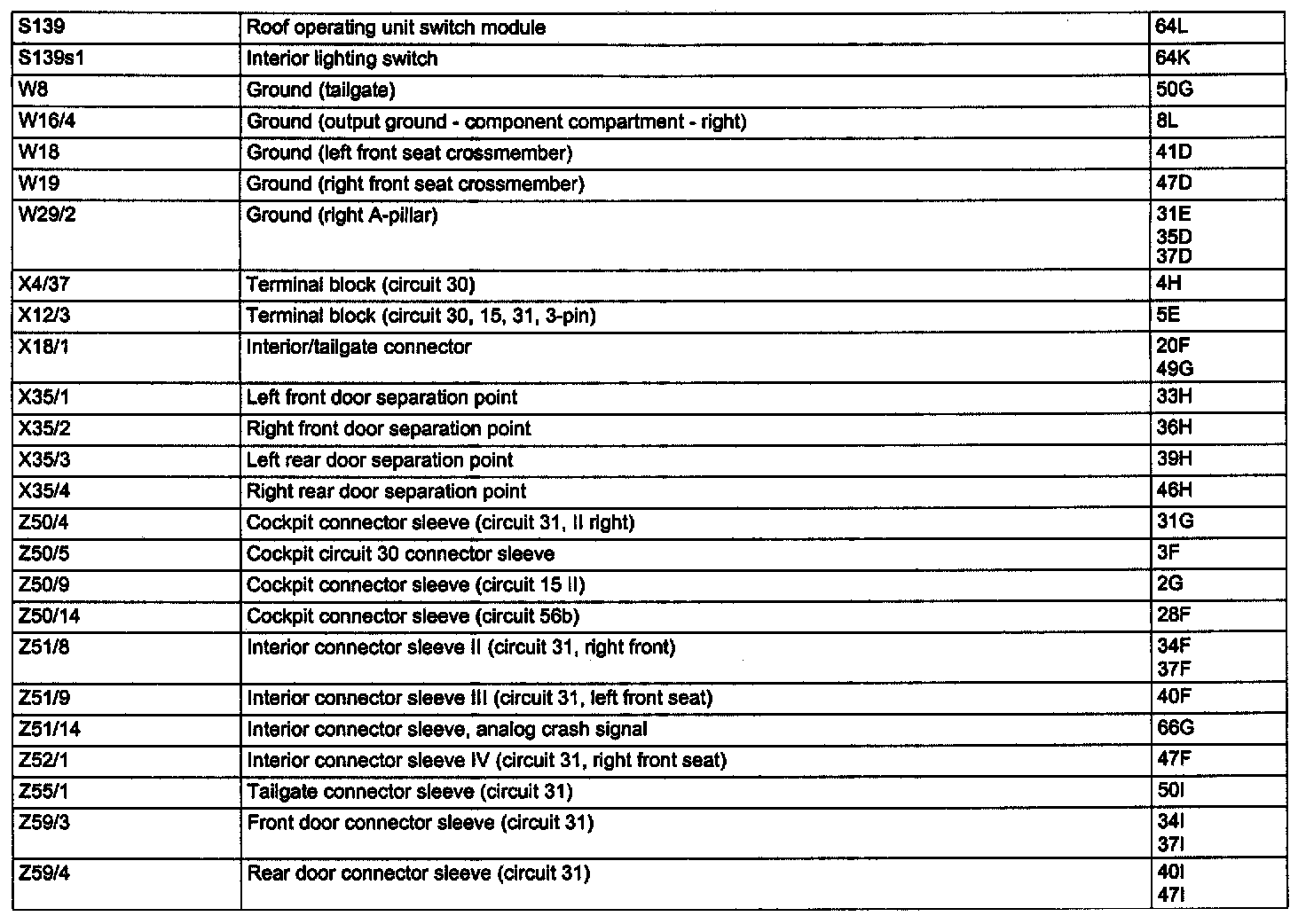

Component Description/Coordinates, S139 - Z59/4:
