Home
>>
Mazda
>>
2012
>>
Mazdaspeed3 L4-2.3L Turbo
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
System Wiring Diagram
System Wiring Diagram

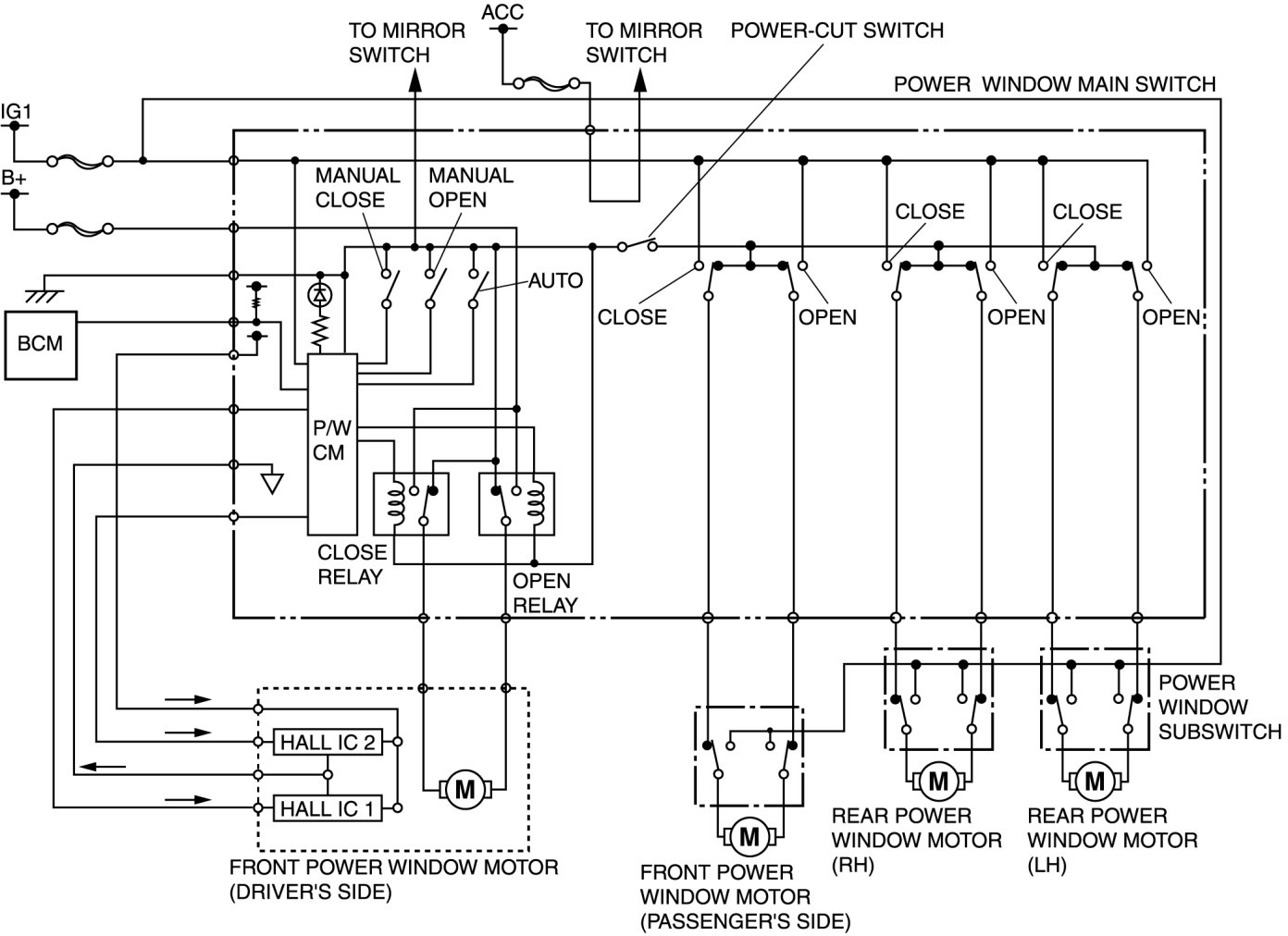

POWER WINDOW SYSTEM WIRING DIAGRAM [POWER WINDOW SYSTEM]
