Procedures

EVAPORATIVE CHAMBER INSPECTION [LF]

1. Remove the evaporative chamber. Removal and Replacement

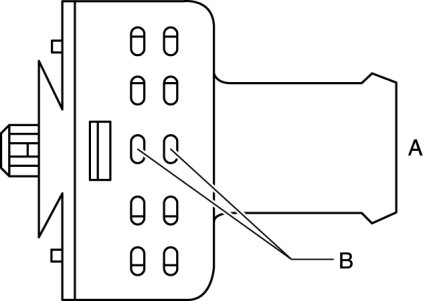

2. Blow from port A and verify that there is airflow from port B.






- If not as specified, replace the evaporative chamber. (See Removal and Replacement)
