Hazard Warning Flasher: Testing and Inspection

FLASHER CONTROL MODULE INSPECTION

1. Remove the flasher control module with the connector connected. Service and Repair

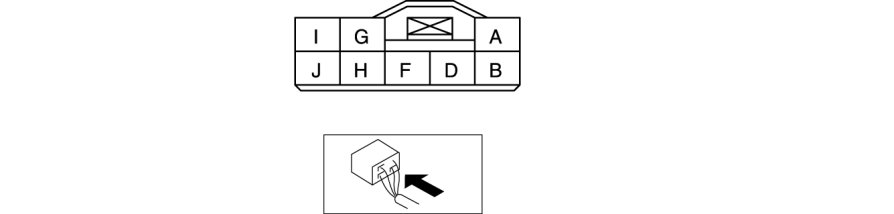

2. Measure the voltage at each terminal is as indicated in the Terminal Voltage Tables.

- If the voltage or continuity is not as specified in the Terminal Voltage Table, inspect the parts under "Inspection item (s)".

- If the system does not work properly even though the parts or related wiring harnesses do not have any malfunction, replace the flasher control module.

Terminal Voltage Table (Reference)
