Hazard Warning Flasher: Service and Repair

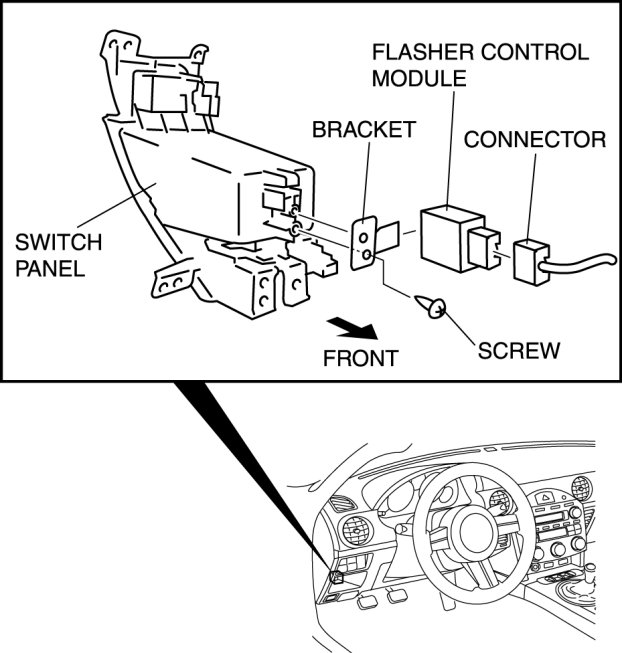

FLASHER CONTROL MODULE REMOVAL/INSTALLATION

1. Remove the battery cover.

2. Disconnect the negative battery cable. Removal and Replacement

3. Disconnect the connector.






4. Remove the screw and then remove the flasher control module.

5. Install in the reverse order of removal.
