Air Bag Deactivation Indicator: Service and Repair

PASSENGER AIR BAG DEACTIVATION (PAD) INDICATOR REMOVAL/INSTALLATION

1. Remove the battery cover.

2. Disconnect the negative battery cable. Removal and Replacement

3. Remove the following parts:
a. Side wall Side Wall Removal/Installation

b. Center panel unit Center Panel Unit Removal/Installation

c. Glove compartment Service and Repair

d. Decoration panel Decoration Panel Removal/Installation

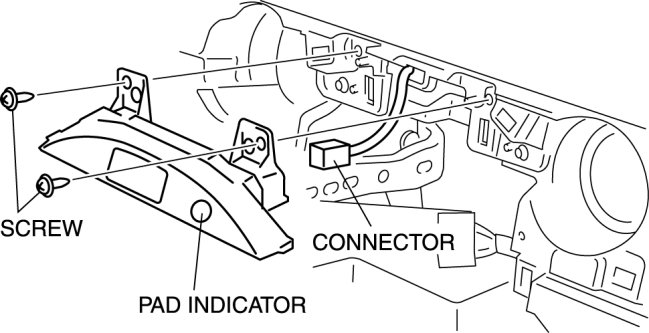

4. Remove the screw.






5. Remove the connector.

6. Remove the PAD indicator.

7. Install in the reverse order of removal.
