Home >> Mazda >> 2012 >> MX-5 Miata L4-2.0L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> ABS >> No. 3 Brake System Warning Light Does Not Illuminate When The Ignition Switch Is Turned To The ON Position

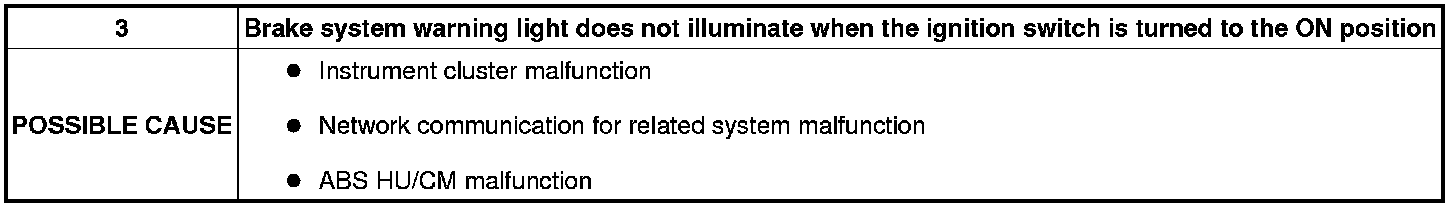

No. 3 Brake System Warning Light Does Not Illuminate When The Ignition Switch Is Turned To The ON Position





NO.3 BRAKE SYSTEM WARNING LIGHT DOES NOT ILLUMINATE WHEN THE IGNITION SWITCH IS TURNED TO THE ON POSITION [ABS]

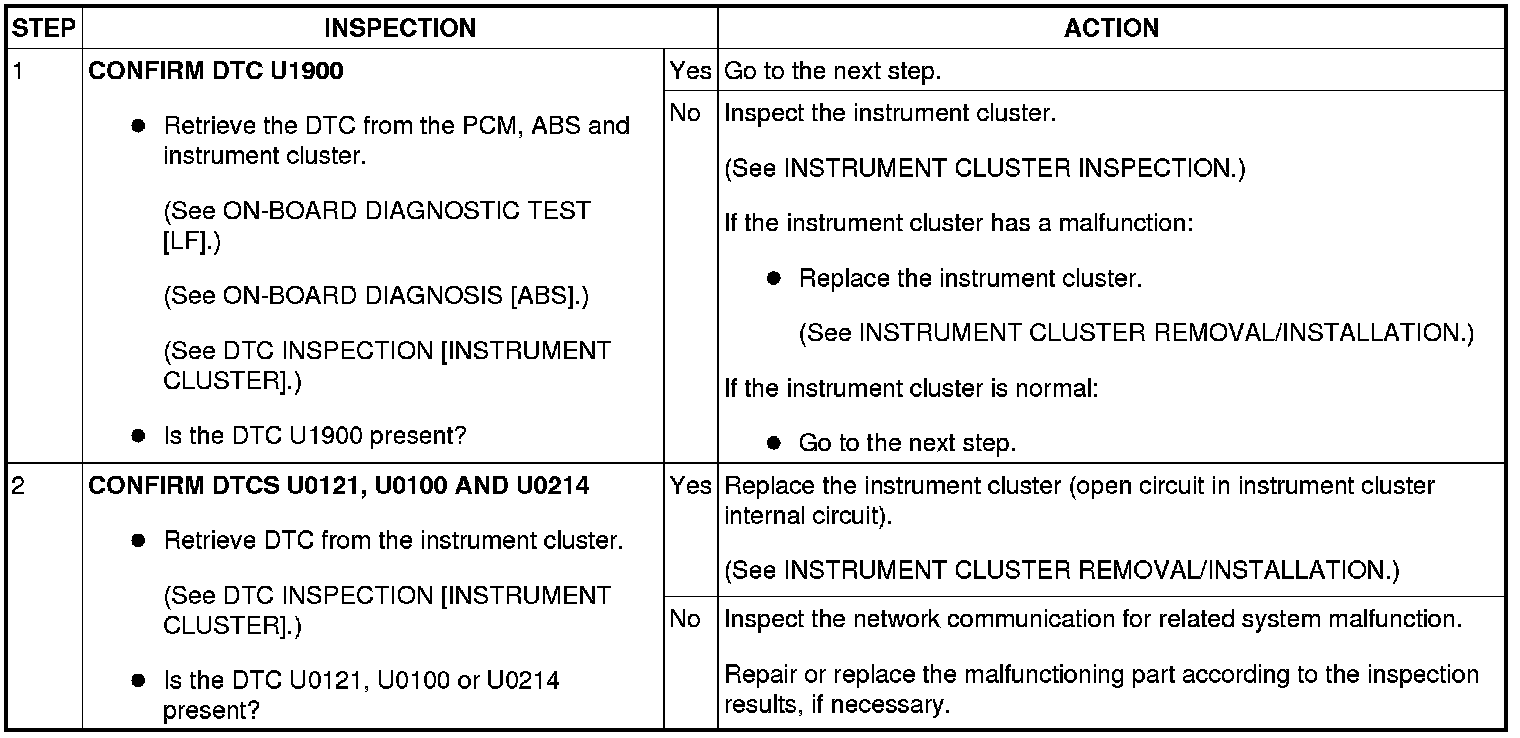

Diagnostic procedure
