Center Speaker Inspection

CENTER SPEAKER INSPECTION

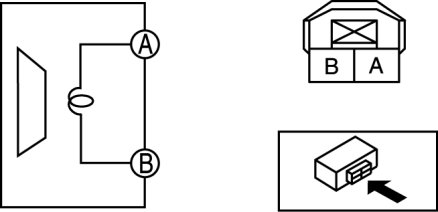

1. Verify the resistance between center speaker terminals.






- If the resistance is not within the specification, replace the center speaker.

Resistance
- 3.6 ohms

2. Connect a 1.5 V battery to the center speaker and verify that noise is heard from the center speaker.

- If no noise is heard, replace the center speaker.
