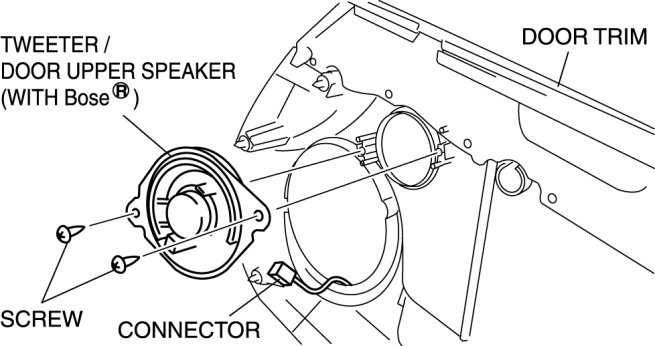

Tweeter/Door Upper Speaker Removal/Installation

TWEETER/DOOR UPPER SPEAKER REMOVAL/INSTALLATION

1. Remove the battery cover.

2. Disconnect the negative battery cable. Removal and Replacement

3. Remove the door trim. Door Trim Removal/Installation

4. Disconnect the connector.






5. Remove the screws.

6. Remove the tweeter/door upper speaker (with Bose(R)).

7. Install in the reverse order of removal.
