Radio Tuner: Service and Repair

SIRIUS SATELLITE RADIO UNIT REMOVAL/INSTALLATION

1. Remove the battery cover.

2. Disconnect the negative battery cable. Removal and Replacement

3. Remove the following parts:
a. Trunk end trim Service and Repair

b. Partition board

c. Trunk side trim (RH)

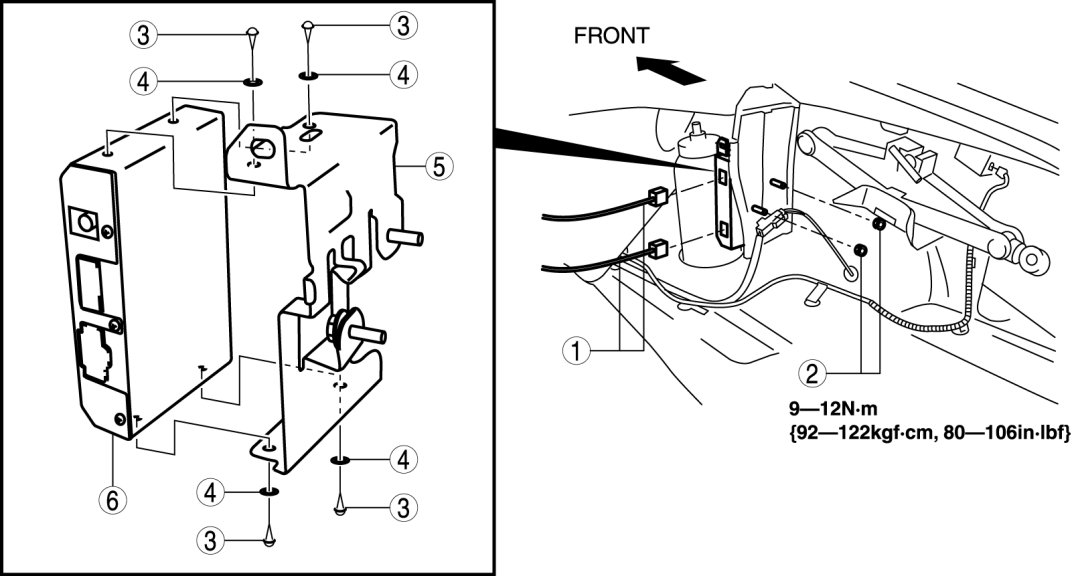

4. Remove in the order indicated in the table.










5. Install in the reverse order of removal.
