Radio, Stereo, and Compact Disc: Application and ID

SUPPLIER IDENTIFICATION PROCEDURE [AUDIO]

NOTE:
- The supplier can vary with the unit. When asking the supplier (service center) for repair or replacement, identify the supplier and fill in the Audio Repair Order Form with the following procedures.

Identification Using the Label or Inscribed Lettering

1. Remove the battery cover.

2. Disconnect the negative battery cable. Removal and Replacement

3. Remove the lower panel. Lower Panel Removal/Installation

4. Remove the knee bolster. Knee Bolster Removal/Installation

5. Remove the console. Console Removal/Installation

6. Remove the side wall. Side Wall Removal/Installation

7. Remove the center panel unit. Center Panel Unit Removal/Installation

8. Verify the supplier by referring to the label attached to each unit.

Verify Using the Diagnostic Assist Function

1. Turn the ignition switch to the ACC or ON position.

2. Turn the audio unit power to ON.

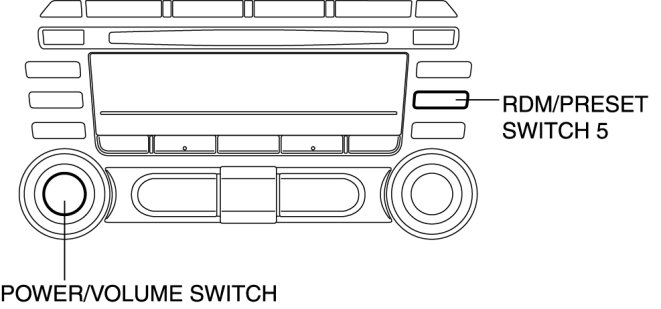

3. While pressing the POWER/VOLUME switch, simultaneously press the RDM/PRESET switch 5 for 0.2 s or more.

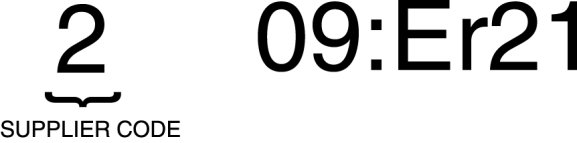

4. Identify the supplier code by referring to the display.










NOTE:
- The supplier code can also be identified from the DTC displays screen.






5. Cancel the diagnostic assist function by either turning off the audio unit power or by turning the ignition switch to the LOCK position.
